Quick Details
-
Blade Length (mm):
-
1520 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
250 mm
-
Brand Name:
-
YOUTRUE
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
1300 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/415V/440V
-
Dimension(L*W*H):
-
2100* 1100* 1250
-
Year:
-
2021
-
Cutting material:
-
metal sheet
-
Function:
-
Cuting Sheet Metal
-
Color:
-
Optinal
-
Motor:
-
Seimens
-
electric component:
-
Schneider
-
Synchronous:
-
yes
-
controller:
-
optional
-
backgauge:
-
manual or CNC
-
the power:
-
motor with reducer
-
Certification:
-
ISO
Quick Details
-
Max. Cutting Width (mm):
-
1500
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
2°14'
-
Blade Length (mm):
-
1520 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
250 mm
-
Brand Name:
-
YOUTRUE
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
1300 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/415V/440V
-
Dimension(L*W*H):
-
2100* 1100* 1250
-
Year:
-
2021
-
Cutting material:
-
metal sheet
-
Function:
-
Cuting Sheet Metal
-
Color:
-
Optinal
-
Motor:
-
Seimens
-
electric component:
-
Schneider
-
Synchronous:
-
yes
-
controller:
-
optional
-
backgauge:
-
manual or CNC
-
the power:
-
motor with reducer
-
Certification:
-
ISO
Products Description

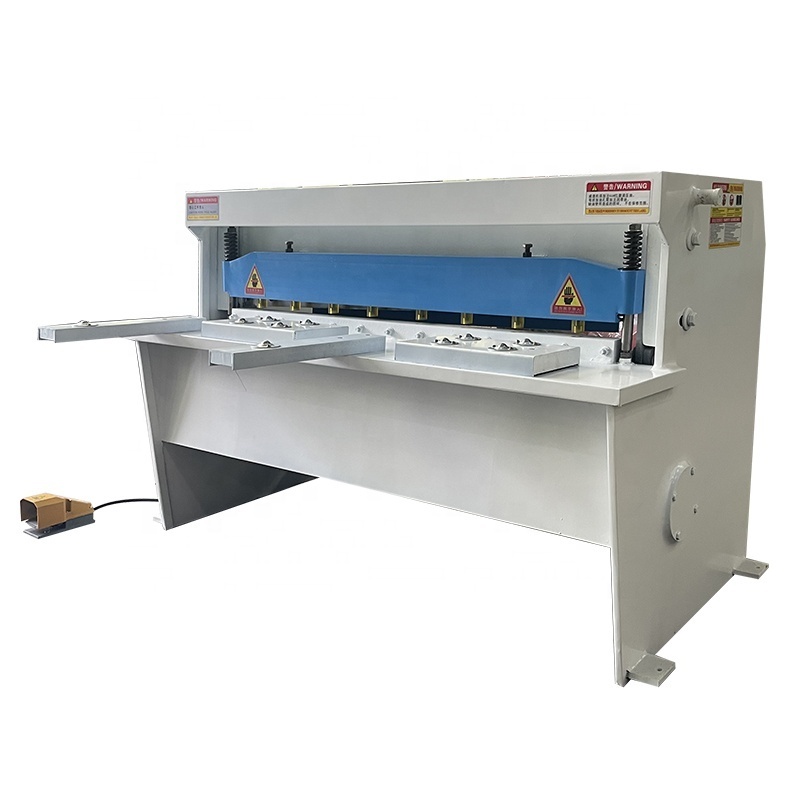

Electric shearing machine
This machine adopts steel welding structure, has the advantages of simple structure,convenient operation, beautiful appearance,low energy consumption, use gear reducer can be installed or, electromagnet, foot switch can be remote control, apply to metallurgy, light industry, machinery, hardware and other 0.1~6.0mm of ordinary steel plate processing shear.
Main Features
1. the whole machine body uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.
2. The machine hasn't the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.
3.shearing blade uses 6Cr2Si material, ensuring the good performance and long performance life.
4. the structure of the machine is simple, easy operation and low consumption.
Details Images
Front supporting &
Compression
■
Ball type front supporting,
simple structure,with powerful function，supporting the sheet moving
■ P
olyurethane compression,can help fix the sheet, better for the cutting and no
damage on the sheet surface
Backgauge &
Driving device
■
It is driven by steep motor and reducer with limit switch, control the eccentric wheel，then control the blade holder moving up and down
mechanism,reliable and stable
1. Material:
9CrSi, SKD-11,6CrW2Si,Cr12MOV, H13
.
Special Tool steel
2. Hardness: HRC50-63 for could shears, HRC45-63 for hot shears
3. High precision surface,burr-free
4. Retangular section upper and lower blades, 4 edges to use
5. Strict quality management system
6. Small orders accepted.
7. OEM and ODM
Bade bear high hardness, good resistence to wear, as well as reliable quality and
complete variety, meeting your requirements.
2. Hardness: HRC50-63 for could shears, HRC45-63 for hot shears
3. High precision surface,burr-free
4. Retangular section upper and lower blades, 4 edges to use
5. Strict quality management system
6. Small orders accepted.
7. OEM and ODM
Bade bear high hardness, good resistence to wear, as well as reliable quality and
complete variety, meeting your requirements.
Product Paramenters
Technical parameter
|
Model
|
Cutting
thinckness
（mm）
|
cutting
width
（mm）
|
cutting angle
（°）
|
No.of strokes
(times/min)
|
backgauge range(mm)
|
motor power (kw)
|
Dimensions
(mm)
|
|
Q11G-3×1300
|
3
|
1300
|
2°14‘
|
33
|
500
|
4.5
|
1900×1050×1150
|
|
Q11G-3×1500
|
3
|
1500
|
2°14‘
|
33
|
500
|
4.5
|
2100×1050×1150
|
|
Q11G-3×1600
|
3
|
1600
|
2°14‘
|
33
|
500
|
4.5
|
2200×1050×1150
|
|
Q11G-3×2000
|
3
|
2000
|
2°14‘
|
33
|
500
|
5.5
|
2600×1050×1150
|
|
Q11G-3×2500
|
3
|
2500
|
2°14‘
|
30
|
500
|
5.5
|
3100×1050×1150
|
|
Q11G-4×1300
|
4
|
1300
|
2°14‘
|
30
|
500
|
5.5
|
1900×1050×1150
|
|
Q11G-4×1500
|
4
|
1500
|
2°14‘
|
30
|
500
|
5.5
|
2100×1050×1150
|
|
Q11G-4×1600
|
4
|
1600
|
2°14‘
|
30
|
500
|
5.5
|
2200×1050×1150
|
|
Q11G-4×2000
|
4
|
2000
|
2°14‘
|
28
|
500
|
7.5
|
2600×1050×1250
|
|
Q11G-4×2500
|
4
|
2500
|
2°14‘
|
28
|
500
|
7.5
|
3100×1050×1250
|
|
Q11G-2×2000
|
2
|
2000
|
2°14‘
|
33
|
500
|
4.5
|
2600×1050×1150
|
|
Q11G-2×2500
|
2
|
2500
|
2°14‘
|
30
|
500
|
4.5
|
3100×1050×1150
|
|
Q11G-6×1300
|
6
|
1300
|
2°14‘
|
28
|
500
|
5.5
|
1900×1050×1250
|
|
Q11G-6×1600
|
6
|
1600
|
2°14‘
|
28
|
500
|
7.5
|
2200×1050×1250
|
