Quick Details
-
Brand Name:
-
EBASEE
-
Model Number:
-
EATS1
-
Rated Current:
-
1250A
-
Frame current:
-
16
-
Product name:
-
auto transfer switch
-
Rated current:
-
10~1250A
-
Rated voltage:
-
DC220V
-
Frequency:
-
50Hz
-
Poles:
-
3p / 4p
-
Standard:
-
IEC60947
-
Usage:
-
R, S, I, F
-
Controller type:
-
A, B, C, D
-
circuit breaker:
-
C, N, P
-
Function:
-
uninterrupted power supply
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
4
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EBASEE
-
Model Number:
-
EATS1
-
Rated Current:
-
1250A
-
Frame current:
-
16
-
Product name:
-
auto transfer switch
-
Rated current:
-
10~1250A
-
Rated voltage:
-
DC220V
-
Frequency:
-
50Hz
-
Poles:
-
3p / 4p
-
Standard:
-
IEC60947
-
Usage:
-
R, S, I, F
-
Controller type:
-
A, B, C, D
-
circuit breaker:
-
C, N, P
-
Function:
-
uninterrupted power supply

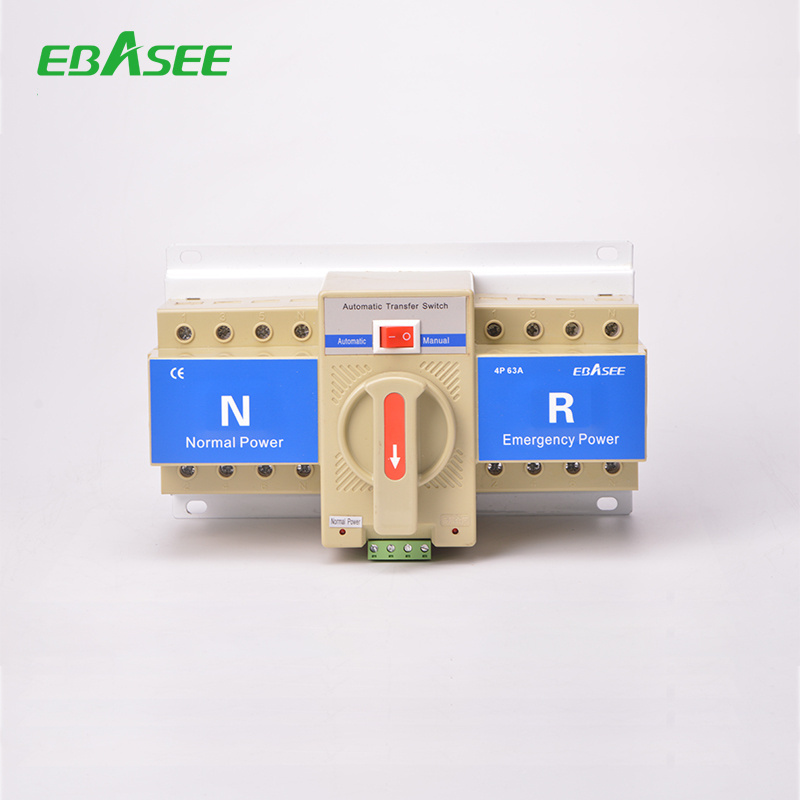

C B Class Dual-Power Automatic Transfer Switch ATS
Function
Model type E ATS1 series automatic transfer switch is a new generation of the latest development products, ATS generally used to monitor the power supply circuits. When the power failure, ATS will changeover to backup power automatically, so that complete conversion power supply system.
At present, in particular suited for the important electricity power places where disallow to failure, in order to meet the needs of the scene, automatic switch has self-input and self-recover, self-input without self-recover, utility to utility, utility- generators work with a variety of functions, the product applied in 240V, AC 50Hz, rated current from 10A to 125 0 A(CB class) autocratically switch products.
Technical Parameter
|
Model type |
|
EATS1 |
|
Rated working voltage |
|
220V AC 50Hz |
|
Changeover time delay |
|
0.5s |
|
Recovery delay |
|
0.5s~90s continuous resettable |
|
Under voltage changeover value |
|
145V~210V continuous resettable |
|
Overvoltage changeover value |
|
230V~300V continuous resettable |
|
Changeover time |
|
L ess than 4s |
|
Type |
|
CB type |
|
Pole |
|
3 pole, 4 pole |
|
Certificate |
|
CE, AAA |
Features
n Alternative work by automatic and manual operation , changeover type is auto switch and auto recovery
n Full function of overload and short circuit protection
n Monitoring the two sources, whether is loss phase, under voltage, loss voltage and such abnormal conditions, the indication show whether in located normal voltage
n There is a team with dry output contact for standby generators for start up and shut down
n conversion type is self-input and self-recover
Applicable Working
|
Ambient temperature |
|
-5~+40℃ |
|
Altitude |
|
≤ 2000 m |
|
Relative humidity |
|
≤ 95% |
|
Pollution level |
|
II . |
|
Installation location |
|
F ree from explosive danger, air or conductive dust which may cause corrosion of metal |
