Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MY
-
Year:
-
New
-
Voltage:
-
380v 3Phase /220v 3Phase50/60HZ
-
Dimension(L*W*H):
-
219*74*190cm
-
Hollow part volume:
-
5 Gallon
-
Power (kW):
-
34kw/10-15kw
-
Weight (KG):
-
950 KG
-
Product name:
-
Semi-Automatic Bottle Blowing Machine
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Semi-Automatic Bottle Blowing Machine
-
Suitable bottle:
-
5 gallon
-
Bottle material:
-
PET Material
-
Use:
-
PET Bottle Blowing System
-
Advantages:
-
Saving Energy
-
Color:
-
Customer Choice
-
Feature:
-
High Capacity
-
Customer's requipment:
-
Customized Designed
Quick Details
-
Neck Diameter(mm):
-
100 mm
-
Max.Bottle Diameter(mm):
-
270 mm
-
Max.Bottle Height(mm):
-
490 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MY
-
Year:
-
New
-
Voltage:
-
380v 3Phase /220v 3Phase50/60HZ
-
Dimension(L*W*H):
-
219*74*190cm
-
Hollow part volume:
-
5 Gallon
-
Power (kW):
-
34kw/10-15kw
-
Weight (KG):
-
950 KG
-
Product name:
-
Semi-Automatic Bottle Blowing Machine
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Semi-Automatic Bottle Blowing Machine
-
Suitable bottle:
-
5 gallon
-
Bottle material:
-
PET Material
-
Use:
-
PET Bottle Blowing System
-
Advantages:
-
Saving Energy
-
Color:
-
Customer Choice
-
Feature:
-
High Capacity
-
Customer's requipment:
-
Customized Designed
Products Description
Introduction

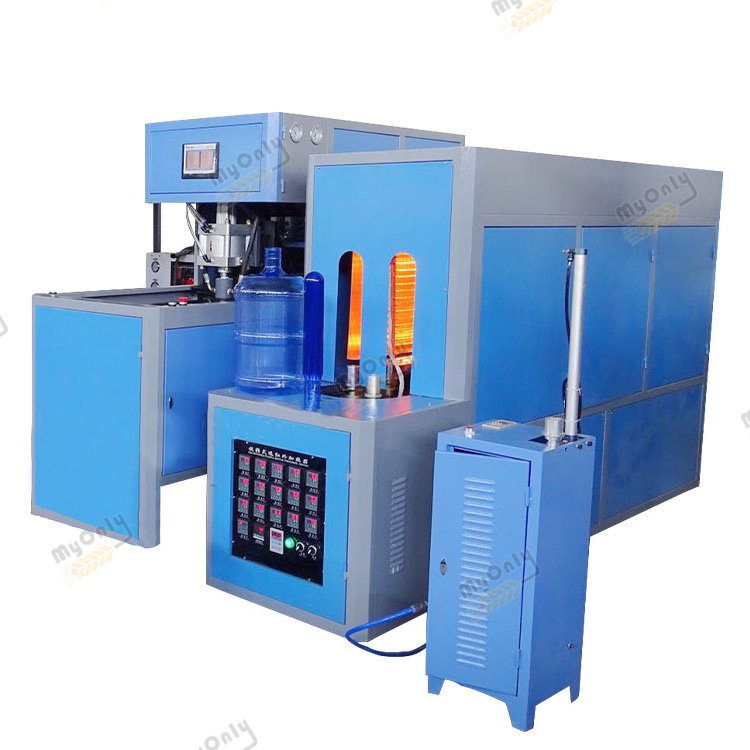

The semi-automatic 5 gallon bottle blowing machine is a device that uses blow molding technology to make plastic particles into hollow containers. Reasonable structure, the use of high-quality parts, strong stability, good blowing effect, low energy consumption, saving time and labor, effectively improve production efficiency.
Application
The semi-automatic 5 gallon bottle blowing machine can blow up to 10-20 liters PET material pure water bottles, oil bottles, 5 gallon bottles, etc.
Features
1.
Adopting advanced touch screen control system, stable performance.
2.
Using infrared light tubes for heating, with strong penetration, the bottle preform rotates and is heated, and the track rotates, heating is uniform, fast and reliable.
3.
Each action is driven by a cylinder and does not use an oil pump, which has the advantages of no pollution and low noise.
4.
Adopting high-pressure and hyperbolic arm connecting rod locking, with strong locking force.
parameters
|
Model
|
MY-100
|
|
Yield (based on bottle type)
|
100-200PCS/H
|
|
Bottle diameter
|
160mm-270mm
|
|
Bottle body height
|
320mm-490mm
|
|
Bottle mouth diameter
|
15mm-100mm
|
|
Mold cavity
|
1 cavity
|
|
Effective area of mold
|
480*340mm
|
|
Closing stroke (mold thickness)
|
200~360mm
|
|
supply voltage
|
380v 3Phase /220v 3Phase 50/60HZ
|
|
Installed capacity power/actual usage power
|
34kw/10-15kw
|
|
High pressure air compressor
|
1.2m3/min 3.0MPa
|
|
Cold drying machine
|
2.0m3/min 3.0MPa
|
|
Cold water volume
|
15L/min
|
|
Host size （length, width, height/weight）
|
219*74*190cm/950kg
|
|
Oven size （length, width, height/weight）
|
280*67*160cm/350kg
|
