Quick Details
-
Screw Speed (rpm):
-
50 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINGDONG
-
Voltage:
-
220/380V, 50 Hz
-
Dimension(L*W*H):
-
13000mm*3500mm*3000mm
-
Power (kW):
-
40
-
Weight:
-
2 KG
-
Gear box:
-
Both oblique gear, hardening, polished
-
Cooling bath:
-
Length:6m, stainless steel
-
Drawing unit:
-
Motor:1.5kW, frequency varying
-
Take-up unit:
-
Motor:0.75 kW, frequency varying
-
Product name:
-
plastic rattan extruding machine
-
Final product:
-
rattan
-
Suitable material:
-
LDPE LLDPE
-
Motor brand:
-
Jiangcheng
-
Cooling way:
-
Circulation Water Cooling
-
Speed:
-
15-20m/min
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw diameter (mm):
-
55 mm
-
Screw Speed (rpm):
-
50 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINGDONG
-
Voltage:
-
220/380V, 50 Hz
-
Dimension(L*W*H):
-
13000mm*3500mm*3000mm
-
Power (kW):
-
40
-
Weight:
-
2 KG
-
Gear box:
-
Both oblique gear, hardening, polished
-
Cooling bath:
-
Length:6m, stainless steel
-
Drawing unit:
-
Motor:1.5kW, frequency varying
-
Take-up unit:
-
Motor:0.75 kW, frequency varying
-
Product name:
-
plastic rattan extruding machine
-
Final product:
-
rattan
-
Suitable material:
-
LDPE LLDPE
-
Motor brand:
-
Jiangcheng
-
Cooling way:
-
Circulation Water Cooling
-
Speed:
-
15-20m/min
Our Offer
Pre-service
1.To create a space that customers can make a reasonable plan with less cost
2.We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human
resources allocation and budgeting.
3.We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission
etc.
After-service
1. we are responsible for installation, debugging and training, you just pay for the engineer’s air tickets, eating, housing and
80 dollars each day.
2. provide service manual and maintenance instruction of main electric appliance, limb, usage manual of equipment. We also supply
water, electricity, gas of equipment and installation drawing.
3. 12 months for warranty.
4. Fittings of the machine will be supplied at preferential price after one year .
1.To create a space that customers can make a reasonable plan with less cost
2.We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human
resources allocation and budgeting.
3.We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission
etc.
After-service
1. we are responsible for installation, debugging and training, you just pay for the engineer’s air tickets, eating, housing and
80 dollars each day.
2. provide service manual and maintenance instruction of main electric appliance, limb, usage manual of equipment. We also supply
water, electricity, gas of equipment and installation drawing.
3. 12 months for warranty.
4. Fittings of the machine will be supplied at preferential price after one year .
Product Description
|

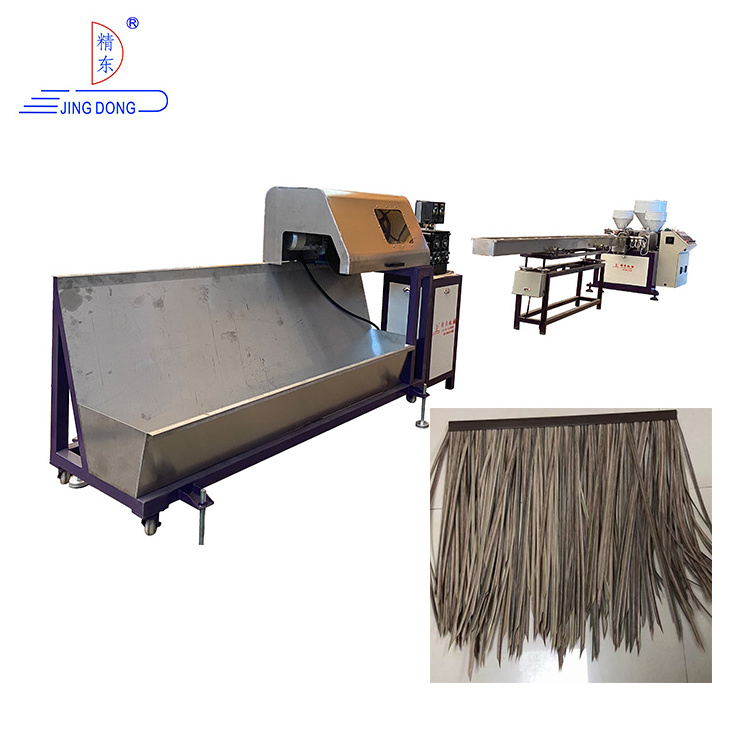

Artificial Plastic PP Rattan Making machinery
|
|
|
|
|||
|
Unit
|
part(s)
|
QTY
|
Description
|
|||
|
SJ55/30*2 main extruder
|
screw & barrel
|
1 set
|
Ø55; L/D:28:1,
substrate: 38CrMoAlA, nitriding |
|||
|
|
screw & barrel
|
2 sets
|
Ø30 ; L/D:25:1,
substrate:38CrMoAlA, nitriding |
|||
|
|
Main gear box
|
1 set
|
oblique gear, hardening, polished
|
|||
|
|
Main Motor
|
1 set
|
15kW,frequency converter control
|
|||
|
|
Sub-motor
|
1 set
|
3kw
|
|||
|
|
Hopper & Fan Cover
|
1 each
|
stainless steel
|
|||
|
Cooling bath
|
|
1 set
|
length:6m, stainless steel
|
|||
|
Drawing & Take-up unit
|
|
1 set
|
drawing motor:1.5kW,
take-up motor:0.75 kW, both frequency varying |
|||
|
Mould
|
|
1 set
|
Customized by customer's sample
|
|||
