It is a widely used access control system entrances and exits at offices, factories, hotels, schools and other public places.All input/output uses anti-jamming protection and over-voltage/circuit protection.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ACM
-
Model Number:
-
ACM223
-
Item name:
-
Standalone RFID Access control for single door control and Security
-
Card Type:
-
125KHz or 13.56MHz
-
Communication Interface:
-
Wiegand26, Wiegand34
-
Access ways:
-
Cards ,Code, Card +Code
-
Capacity:
-
2000 users
-
Reading Range:
-
3~8cm
-
Power Supply:
-
DC12V/100mA
-
Size:
-
120 *56*18mm
-
Application:
-
Lock, alarm, exit button, door sensor
-
Keywords:
-
Door access control system, Card access system
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
ACM
-
Model Number:
-
ACM223
-
Item name:
-
Standalone RFID Access control for single door control and Security
-
Card Type:
-
125KHz or 13.56MHz
-
Communication Interface:
-
Wiegand26, Wiegand34
-
Access ways:
-
Cards ,Code, Card +Code
-
Capacity:
-
2000 users
-
Reading Range:
-
3~8cm
-
Power Supply:
-
DC12V/100mA
-
Size:
-
120 *56*18mm
-
Application:
-
Lock, alarm, exit button, door sensor
-
Keywords:
-
Door access control system, Card access system
Product Description
Standalone RFID Access control for single door control and Security
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Transaction Capacity
|
4,000 Transactions
|
|
|
||
|
Communication
|
Weigand
|
|
|
||
|
Access Control Interface
|
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
|
|
|
||
|
Wiegand Signal
|
Input and Output
|
|
|
||
|
Interface Styles
|
Common, Matrix and Magic styles
|
|
|
||
|
Standard Function
|
Webserver, Anti-passback
|
|
|
||
|
Optional Function
|
ID Card, 13.56Mhz Card
|
|
|
||
|
Power Supply
|
12V DC,3A
|
|
|
||
|
Operating Temperature
|
0 °C- 45 °C
|
|
|
||
|
Operating Humidity
|
20%-80%
|
|
|
||
|
Dimension(WxDxH)
|
62.5×185×42.5mm
|
|
|
||
Advantage
1. For alone door
2. Support NO, NC electric lock
3. Support exit button
4. Support external Wiegand 26 reader
5. Open mode: Card + Code,card,code
6. Fashion Touch Panel Keypad
Product Show

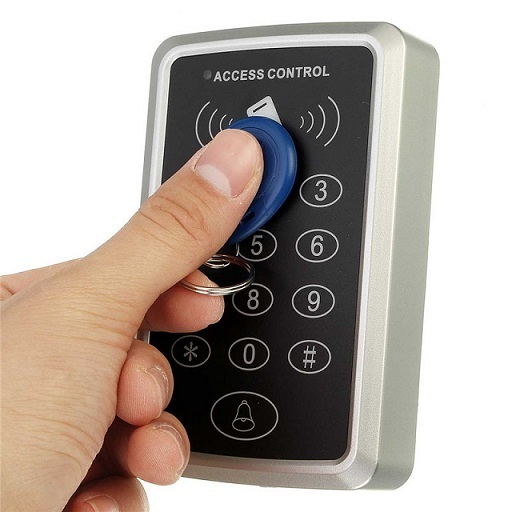

Detailed Images for ACM223 Access control product including card sensor, key, doorbell button.
Application for Touch Keypad RFID & Keypad AccessControl , 125Khz EM1000/4000 USer Capacity
More Configuration for Access Control Product and More Related Product like Exit Button, Power Supplier, And Locks.
Packing & Delivery
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Keypad access control packaging: 1unit per box, 50pcs per carton,
Carton size : 45*31*28cm , Gross Weight :16kg.
