Quick Details
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
CHENGLIWEI
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
8329x2490x3450
-
Warranty:
-
12 Months
-
Driving type:
-
LHD
-
Steering:
-
Power Assistance
-
Certification:
-
CCC
-
Product name:
-
Dumper Truck
-
Brand:
-
Dongfeng
-
Color:
-
Customer's Request
-
Transmission:
-
Manual Transmission
-
Wheel base:
-
3800+1450
-
Loading capacity:
-
21-30 TON
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 3
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
CHENGLIWEI
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
8329x2490x3450
-
Warranty:
-
12 Months
-
Driving type:
-
LHD
-
Steering:
-
Power Assistance
-
Certification:
-
CCC
-
Product name:
-
Dumper Truck
-
Brand:
-
Dongfeng
-
Color:
-
Customer's Request
-
Transmission:
-
Manual Transmission
-
Wheel base:
-
3800+1450
-
Loading capacity:
-
21-30 TON

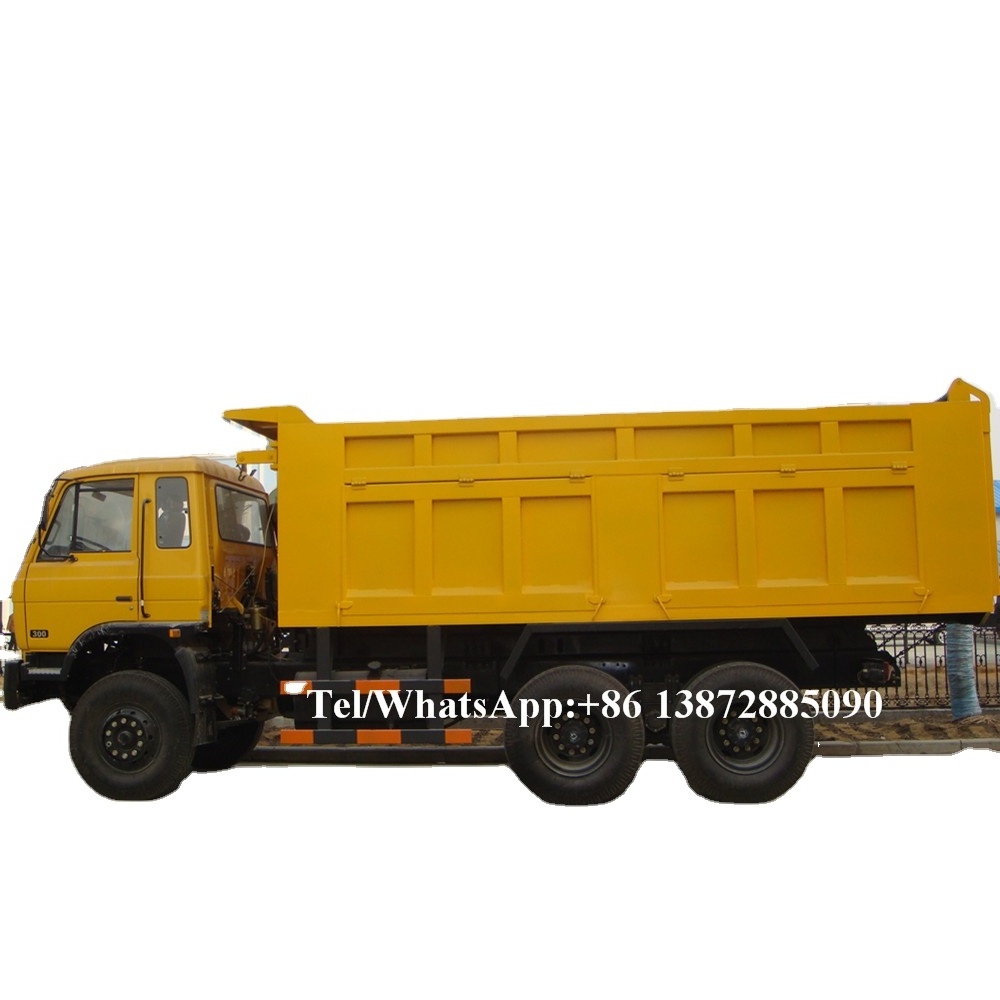

Brand new dongfeng 6*4 15 16 18 cubic meters dump truck for myanmar
18-25 cubic meters capacity , dump truck , also called dumper truck , tipper truck , dump tippers , sand transport dump truck , dump truck for sale , new tippers , prices for tipper truck, left hand drive tipper truck, chinese tipper truck , truck dumper, 40 ton dumper truck
Dump truck control by hydraulic system , dump truck side plate and floor plate made by high quality reinforced carbon steel , dump tippers heavy duty chassis optional :Dongfeng , Foton , Shacman , JAC , Sinotruck etc ..
As customer's required , our factory Chengli special autmobile co.,ltd could custom trucks :
dump truck laoding weight from 2 ton to 60 ton
Dump truck drive mode :4x2 ,6x4 ,6x6 ,8x4 ,8x8
|
DUMP TRUCK |
||
|
# |
Descriptions |
Specifications and types |
|
General |
Truck Brand |
Chengliwei (our brand) |
|
|
Chassis Brand |
Dongfeng |
|
|
Approx. Dimension |
7 83 0*2 49 0*29 8 0 mm |
|
|
GVW./Kerb Wt. |
25000 / 11905 kg |
|
Cab |
Cab Capacity |
3 persons' seat |
|
|
Air Conditioner |
Air Conditioner is optional |
|
Chassis |
Drive Type |
6 X 4 , left hand drive |
|
|
Fuel Type |
Diesel |
|
|
Engine Make & Model |
Dongfeng engine |
|
|
Power |
245 Ps / 1 80 KW |
|
|
Displacement |
8300 ml |
|
|
Emission Standard |
Euro II or EURO III or EURO IV |
|
|
Brake |
Air Brake |
|
|
Wheelbase/No.of axle |
3500+1350 mm / 3 |
|
|
Tyre Specfication |
10.00-20,11.00-20,10.00R20,11.00R20 |
|
|
Tyre Number |
10 tyres and 1 spare tyre |
|
|
Max Speed |
80 km/h |
|
|
Paint |
Automative metallic paint |
|
|
Cargo body dimension |
5300*2300*1270 |
|
Structure& Function |
Type of lifting :front lifting or ventral lifting Floor panel thickness(mm):8 Side panel thickness(mm): 6 Options : options hermetic seal, to fully sealed carriage, sealing cover forms: manual, hydraulic type |
|
More dump tipper truck pictures for reference : dump truck 5 ton , mini tipper 3 ton ,5 ton new dumper price ,7 ton dongfeng
dump truck ,10 ton sand dump truck ,12 ton dump truck for sale ,15 ton tipper sale ,20ton dump truck ,25 ton dumper dimension
30 ton right hand drive tipper for sale ,35-40 ton hydraulic tipper
