Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NEP
-
Model Number:
-
BDM1000
-
Input Voltage:
-
22-55v
-
Output Voltage:
-
230V
-
Output Current:
-
3.2Aac
-
Output Frequency:
-
50Hz/65Hz
-
Size:
-
268x250x42mm
-
Certificate:
-
CE,ROHS
-
Warranty:
-
12 years waranty with 25 years extension.
-
Weight:
-
3.4kg
-
Product Name:
-
Micro Grid Tie Solar Inverter
-
Communications:
-
Power Line
-
Operating Ambient Temperature Range:
-
-40℃~65℃
-
Application:
-
Home Solar Power System
-
Inverter type:
-
NEP Micro Inverter
-
Keyword:
-
Microinverter
-
Protection Degree:
-
IP-67
-
Communication Method:
-
PLC or WiFi(2.4G)
-
Night Power Consumption /mW:
-
110
-
Over/Under Voltage Protection:
-
yes
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
95.5%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NEP
-
Model Number:
-
BDM1000
-
Input Voltage:
-
22-55v
-
Output Voltage:
-
230V
-
Output Current:
-
3.2Aac
-
Output Frequency:
-
50Hz/65Hz
-
Size:
-
268x250x42mm
-
Certificate:
-
CE,ROHS
-
Warranty:
-
12 years waranty with 25 years extension.
-
Weight:
-
3.4kg
-
Product Name:
-
Micro Grid Tie Solar Inverter
-
Communications:
-
Power Line
-
Operating Ambient Temperature Range:
-
-40℃~65℃
-
Application:
-
Home Solar Power System
-
Inverter type:
-
NEP Micro Inverter
-
Keyword:
-
Microinverter
-
Protection Degree:
-
IP-67
-
Communication Method:
-
PLC or WiFi(2.4G)
-
Night Power Consumption /mW:
-
110
-
Over/Under Voltage Protection:
-
yes

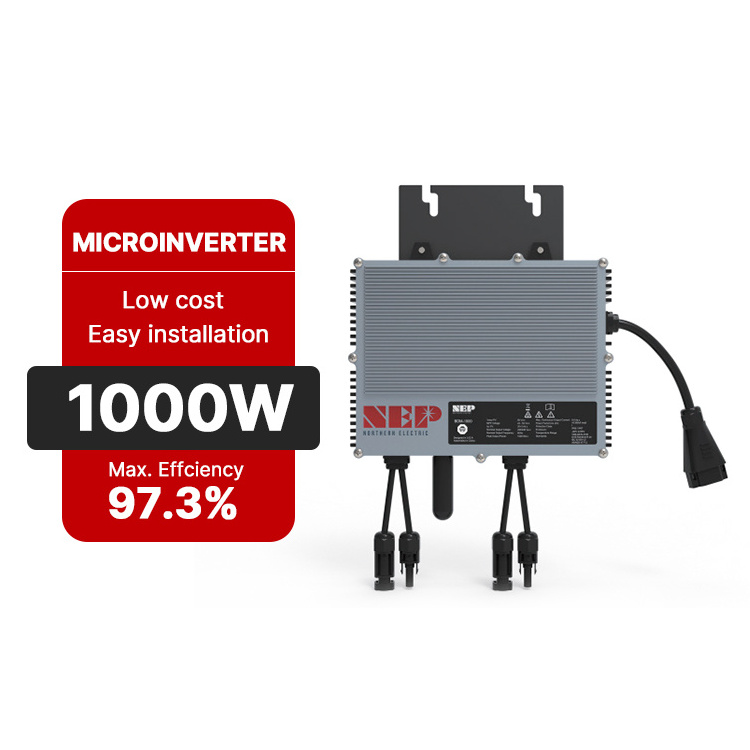

Grid-tie Micro Inverter System
The Solar Micro lwerter, a pivotalcomponentof modern solar enrgy systems, compnises sophisticated aircuts desicned to convert dhrect cuent trom indiwdualsolar panels intaaltemating curent (AC.This technology alows for eficient use of solar powerby enabing each panel to operate independently, maximizing enery production even when shading orobstructions affect part of the instalation.By ensuing optimal performance on a per-panel basis,micro inverters enhance the overal fidiencyand relabiity of solar energy systemsmaking solar power more accessible and effective for a wide range of applications
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the microinverter solution.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the microinverter solution.
Product Parameters
|
Input | DC
|
BDM-1000
|
|
|
Recommended PV Module Power Range /W
|
750×2
|
|
|
MPPT Voltage Range /Vdc
|
22-55
|
|
|
Startup Voltage /Vdc
|
24
|
|
|
Max. Input Voltage /Vdc
|
60
|
|
|
Max. Input Current/A
|
18×2
|
|
|
Overvoltage Protection Category
|
Ⅱ
|
|
|
Output| AC
|
|
|
|
Peak Output Power /VA
|
1000
|
|
|
Max. Continous Output Power /VA
|
1000
|
|
|
Rated Output Voltage /Vac
|
230
|
|
|
Nominal Output Voltage Range/Vac
|
Configurable
|
|
|
Max. Continous Output Current /A
|
4.4
|
|
|
Nominal Frequency / Range /Hz
|
50 / Configurable
|
|
|
Power Factor (Nominal/Adjustable Range)
|
>0.99(full load)
|
|
|
AC Short Circuit Fault Current Over 3 cycles /Arms
|
8.2
|
|
|
THDi@Rated Power
|
<5%
|
|
|
Max. Units per 20A Branch
|
4
|
|
|
Overvoltage Protection Category
|
|||
|
|
|
Efficiency
|
|
|
|
Peak Efficiency
|
97.30%
|
|
|
MPPT Eficiency
|
>99.5%
|
|
|
Night Power Consumption /mW
|
110
|
|
|
General Data
|
|
|
|
Operating Ambient Temperature Range /C
|
-40-65
|
|
|
Relative Humidity Range
|
0-100%
|
|
|
Dimensions (W * H * D)/mm
|
268×250×46.5
|
|
|
Weight/kg
|
3.4
|
|
|
DC Connector Type
|
QC4
|
|
|
AC Connection Type (inverter-inverter)
|
Trunk Cable
|
|
|
Communication Method
|
PLC or WiFi(2.4G)
|
|
|
Protection Class
|
IP67
|
|
Product Details
Features
efficiency
* MTTP tracking efficiency up to 99.5%
* CEC weighted average efficiency up tp 96.5%
secunty
* maximum DC input voltage is 60V
* equipped with various protections such as GFDl, surge protection
reliability
* IP67 protection level
* -40℃ to 65℃ operating temperature
* 12 years waranty with 25 years extension
flexibility
* plug and play installation
* simple and convenient
* easy to expand or change
certification
* RED,ROHS.EMC.UTE.INMETRO, VDE, CE and others
Intelligence
* Panel level monitoring with built-in PLC and WiFi
communication methods
* real-time control of power plant operation status
* automatic high temperature and fault warning
* accurate to every minute of data
* precise positioning pf fault points
