Quick Details
-
operation temperature:
-
Low temperature operation
-
input voltage:
-
DC12V/DC24 input
-
Working current:
-
150mA
-
Starting current:
-
1.2A
-
Withstand grip:
-
1000KG
-
Delay function:
-
0/3/6 second delay
-
performance testing:
-
500000 aging tests passed
-
Applicable door type:
-
Wooden doors/glass doors/fire doors/metal doors
-
Anti theft device:
-
There are screws inside to prevent disassembly
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FFi
-
material quality:
-
aluminium alloy
-
operation temperature:
-
Low temperature operation
-
input voltage:
-
DC12V/DC24 input
-
Working current:
-
150mA
-
Starting current:
-
1.2A
-
Withstand grip:
-
1000KG
-
Delay function:
-
0/3/6 second delay
-
performance testing:
-
500000 aging tests passed
-
Applicable door type:
-
Wooden doors/glass doors/fire doors/metal doors
-
Anti theft device:
-
There are screws inside to prevent disassembly
Products Description
Product advantages:
DC168A small electric plug lock (stainless steel)
Product features:
1.
Aluminum alloy material
.
2.
Signal feedback
.
3. Adjustable delay .
4. low temperature
3. Adjustable delay .
4. low temperature
Specification
|
Product name
|
168 small electric plug lock (stainless steel)
|
|
Product model
|
DC168A
|
|
Lock body size
|
168 * 25 * 35mm
|
|
Lock core size
|
Diameter 12.5mm, extension length 15mm
|
|
input voltage
|
DC12V/DC24 input
|
|
Starting current
|
1.2A
|
|
Working current
|
150mA
|
|
Withstand grip
|
1000KG
|
|
Delay function
|
0/3/6 second delay
|
|
Single lock weight
|
0.6KG
|
|
performance testing
|
500000 aging tests passed
|
|
Applicable door type
|
Wooden doors/glass doors/fire doors/metal doors
|
|
Working mode
|
Power off unlocking, power on locking
|
|
Signal function
|
Door magnetic signal detection
|
|
Low power function
|
Ultra low temperature operation
|

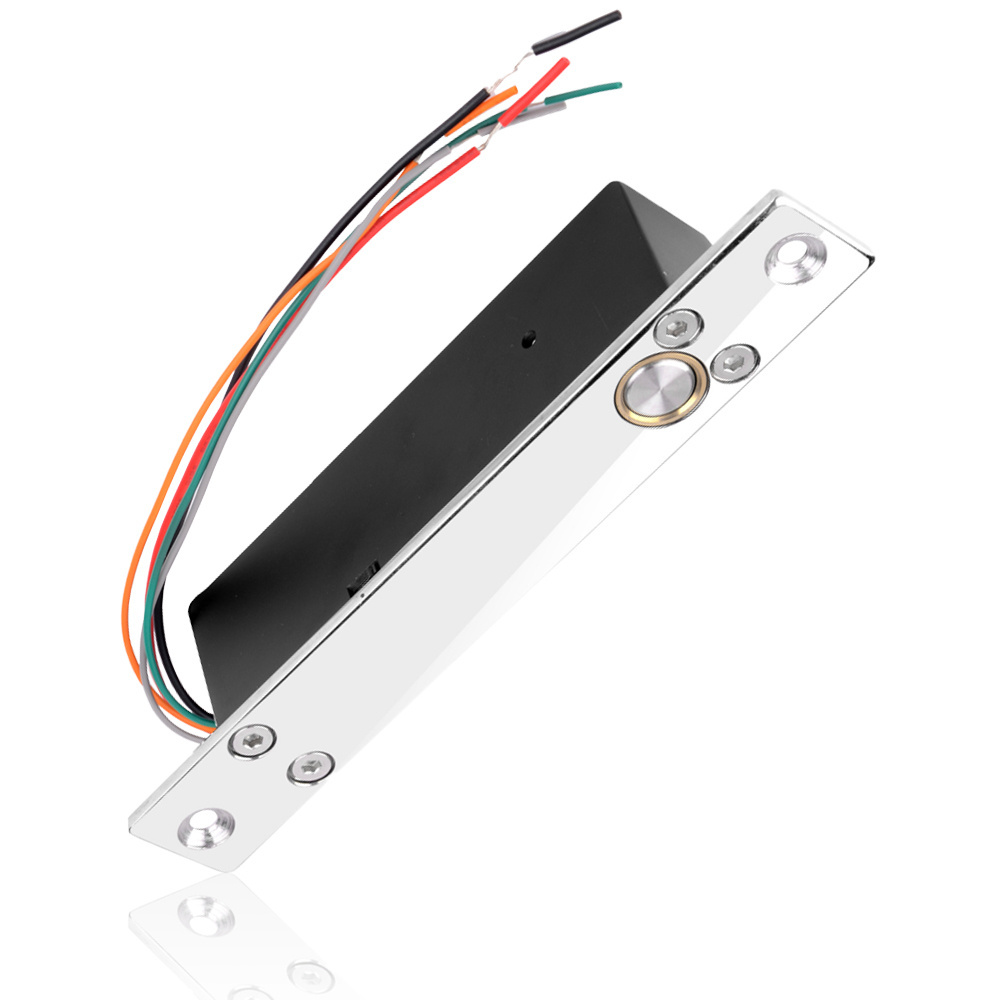

Product image
