Quick Details
-
Brand Name:
-
SOAO
-
Fork Length:
-
1220MM
-
Fork Width:
-
1400MM
-
Overall Dimensions:
-
3.35*1.4*2.2M
-
Weight (KG):
-
4000 kg
-
Product Name:
-

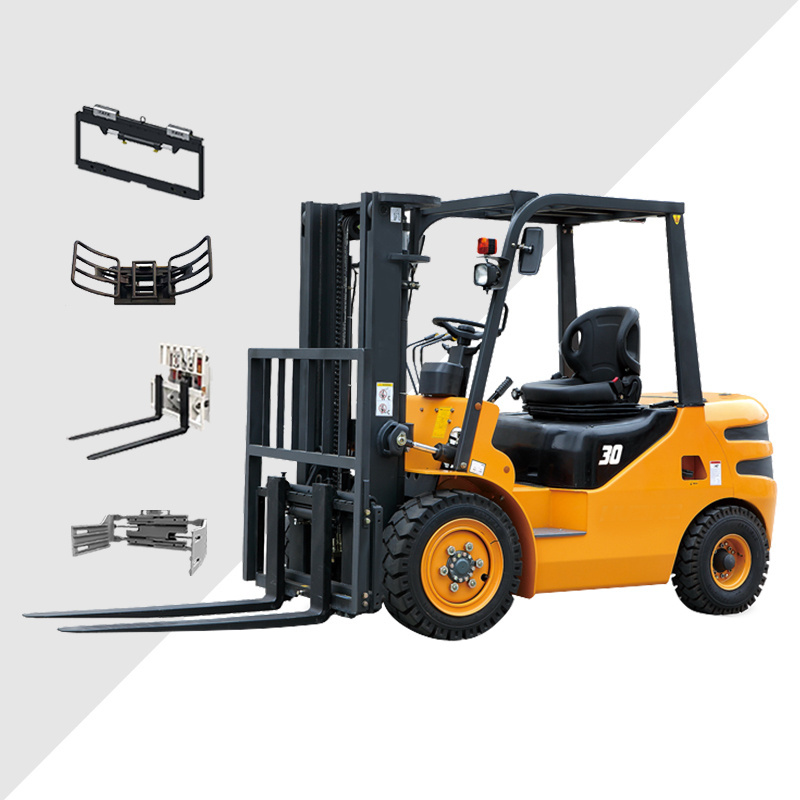

Diesel Forklift Truck
-
Key words:
-
diesel forklift 2 ton
-
Engine:
-
Japanese
-
Operator type:
-
Drive
-
Application:
-
Building\Agriculture\Construction
-
Optional:
-
Side Shift
-
Certification:
-
CE ISO
-
Lifting height:
-
3-6M
-
Packing:
-
Standard Packing
-
Feature:
-
High Efficiency
Quick Details
-
Min. Lifting Height:
-
88MM
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOAO
-
Fork Length:
-
1220MM
-
Fork Width:
-
1400MM
-
Overall Dimensions:
-
3.35*1.4*2.2M
-
Weight (KG):
-
4000 kg
-
Product Name:
-
Diesel Forklift Truck
-
Key words:
-
diesel forklift 2 ton
-
Engine:
-
Japanese
-
Operator type:
-
Drive
-
Application:
-
Building\Agriculture\Construction
-
Optional:
-
Side Shift
-
Certification:
-
CE ISO
-
Lifting height:
-
3-6M
-
Packing:
-
Standard Packing
-
Feature:
-
High Efficiency
What benefits can our Forklift give you?
Our products have passed CE and EPA certification the core components conform to standards of Europe and the United States, you can use in your country, we can meet your any demand model and the tonnage, you can better meet the demand of your work, at the same time, we assure you that due to quality problem the parts are damaged we will supply you with new parts free of charge.
What kinds forklift we are selling
1. Diesel Forklift Truck Range from 1 to 10tons;
2. Electric Forklift Truck Range from 1.5 to 3.5tons;
3. LPG & Gasoline Forklifts Range from 1.5 to 3.5tons;
4. Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ;
5.Rough terrain forklift from 1.8 ton to 5 ton
|
Mast Dip Angle (Front/Rear)
|
6° / 12°
|
|
Dimensions
|
|
|
Fork (Length * Width * Thickness)
|
1220*125*45 mm
|
|
Full Length without Fork
|
2682 mm
|
|
Full Width
|
1225 mm
|
|
Mast Height
|
2105 mm
|
|
Overhead Guard Height
|
2140 mm
|
|
Fork Distance (Outside, Max. / Min.)
|
1100/250 mm
|
|
Min. Turning Radius
|
2400 mm
|
|
Min. Ground Clearance (Mast)
|
126 mm
|
|
Wheel Base
|
1700 mm
|
|
Wheel Tread
|
1000 mm
|
|
Performance
|
|
|
Travel Speed
|
0-19 km/h
|
|
Lift Speed (Full Load / Empty Load)
|
460/540 mm/s
|
|
Fall Speed (Full Load / Empty Load)
|
450/420 mm/s
|
|
Max. Traction Force (Full Load / Empty Load)
|
20/16 kn
|
|
Max. Gradeability
|
20°
|
|
Weight
|
4250 kg
|
|
Forklift and Tire
|
|
|
Tire Type
|
Pneumatic Tire
|
|
Tire Specification
|
28x9-15-12PR / 6.50-10-10PR
|
|
Service Brake
|
Hydraulic-pedal
|
|
Parking Brake
|
Mechanical-pedal
|
|
Drive Element & Transmission
|
|
|
Storage Battery
|
12/80 V/Ah
|
|
Engine Brand
|
Xinchang 490/Quanchai490
|
|
Engine Power
|
36.8 kw
|
|
Engine Type
|
Diesel, 4-cylinder, 4-stroke, Water-cooled
|
|
Fuel Tank Capacity
|
70 L
|
|
Working Pressure
|
17.5 MPa
|
FAQ:
1 Factory:
Q: Are you diesel forklift manufacturer?
A: We are the diesel forklift manufacturer. SOAO diesel forklift factory address is: Jining city, Shandong province, China.
2. Warranty
Q: How to identify the quality about diesel forklift ?
A: Our mini diesel forklift have a 24 months warranty after sale.
3. Packing
Q:What is the container size of 2 ton diesel forklift?
A:Generally, 3 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these 2 ton china diesel forklift, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
