Description:

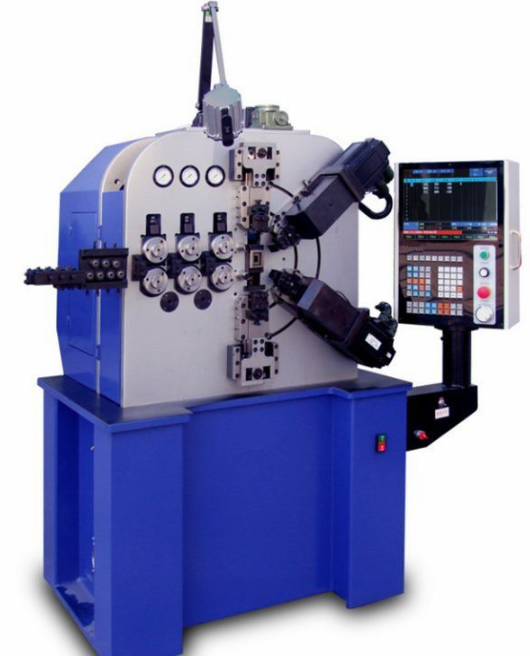

• 1. CNC8645 spring machine is a 6-axis CNC compression spring machine consisting of wire feeding axis, 2 sets outside diameter axis, pitch axis and 2 sets cutter axis. The six axes can act independently or synchronously.
• 2. The compression spring machine upper and lower is driven by three motors independently for controlling the space and cutting tool. The three axes can be exchanged.
• 3. The spring machine pitch can be adjusted by two methods easily: cam inclined knife type and shaft pushing type.
• 4. The outside diameter is driven by two motor independently. The outside diameter can be adjusted by the preset program easily.
• 5. This spring machine can manufacture the compression springs of any shape without adjusting the mechanical parts and absolutely avoid changing the cam plate.

• • 6. English interface, easy operation, accurate positioning, according to the fluorescent screen work, can amend diameter angle of springs anytime.

    7. Wireless, wire breakage and winding automatically stops design and wire frame automatic acceleration function, make production more easily and effectively. With precision detecting and tracking device, substandard products can automatically stop. Mechanical parts automatic supply lubricating oil design , ensure equipment long time running.




Product Range:

This compression spring machine can make various compression springs, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.

Technical Paremeters for 6-axis CNC Compression Spring Machine CNC8645:
