Quick Details
-
Brand Name:
-
muwang
-
Model Number:
-
WL1556S
-
OEM & ODM:
-
Yes
-
Nominal Diameter:
-
385mm
-
Nominal impedance:
-
6 OHM
-
Max Power Input:
-
150W
-
Frequency Range:
-
33-2100Hz
-
Sensitivity:
-
96.2db
-
Voice Coil Diameter:
-
65.5 mm
-
Magnet Diameter:
-
156*80*20 mm
-
Basket:
-
Iron
Quick Details
-
Power:
-
150W
-
Frequency Range (Hz):
-
33-2100Hz, 33-2100Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
muwang
-
Model Number:
-
WL1556S
-
OEM & ODM:
-
Yes
-
Nominal Diameter:
-
385mm
-
Nominal impedance:
-
6 OHM
-
Max Power Input:
-
150W
-
Frequency Range:
-
33-2100Hz
-
Sensitivity:
-
96.2db
-
Voice Coil Diameter:
-
65.5 mm
-
Magnet Diameter:
-
156*80*20 mm
-
Basket:
-
Iron
Product Parameter
| Model | WL1556S |
| Product Name |

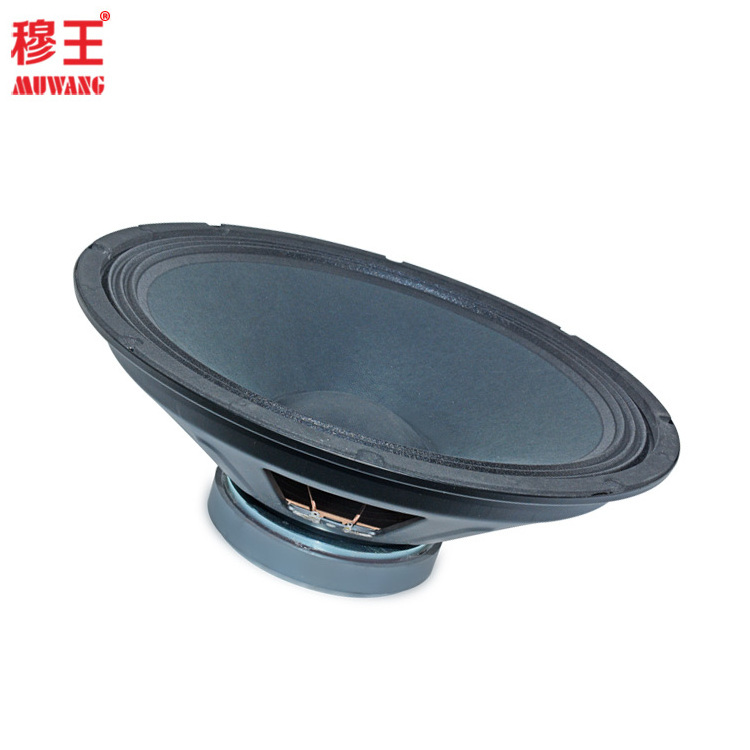

15 inch stage woofer speaker |
| General Specifications |
| Nominal Diameter | 385 mm |
| Resonate Frequency fs |
33 Hz |
| Resonate Frequency Range |
33-210 0Hz |
| Sensitivity | 96.2 db |
| Nominal Impedance | 6 OHM |
| Shortterm Maximum Power | 150W |
| Total Quality Factor,Qts | 0.473 |
| Voice Coil Diameter | 65.5mm |
| Magnet Diameter | 156*80*20 mm |
| Equivalen Air Volume to Cms,Vas | 214L |
| Mechanical Quality Factor ,Qms | 3.241 |
| Physical Information |
| Basket(Frame) | Iron |
| Surround(Damper) | Cotton |
| Voice Coil Wire | Copper(PESVW) |
| Voice Coil Bobbin |
Aluminium(ASV) |
| Magnet |
Ferrite |
