Quick Details
-
Brand Name:
-
T.W.H
-
Power:
-
500W
-
Dimension(L*W*H):
-
1000*430*1125MM
-
Weight:
-
180
-
Product name:
-
Work Glove Machine
-
Function:
-
Jaquard Knitted Gloves Making Machine
-
Product Keywords:
-
High speed Work Glove Machine
-
Suitable raw material:
-
Cotton Yarn
-
Usage:
-
Workshop
-
Color:
-
Customizable
-
Speed:
-
300 Pairs/day
-
Application:
-
Automatic Glove Maker
-
Gauge:
-
7G 10G 13G 15G 18G
-
Control system:
-
PLC+Touch Screen
Quick Details
-
Production Capacity:
-
300 Pairs/day
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
T.W.H
-
Power:
-
500W
-
Dimension(L*W*H):
-
1000*430*1125MM
-
Weight:
-
180
-
Product name:
-
Work Glove Machine
-
Function:
-
Jaquard Knitted Gloves Making Machine
-
Product Keywords:
-
High speed Work Glove Machine
-
Suitable raw material:
-
Cotton Yarn
-
Usage:
-
Workshop
-
Color:
-
Customizable
-
Speed:
-
300 Pairs/day
-
Application:
-
Automatic Glove Maker
-
Gauge:
-
7G 10G 13G 15G 18G
-
Control system:
-
PLC+Touch Screen

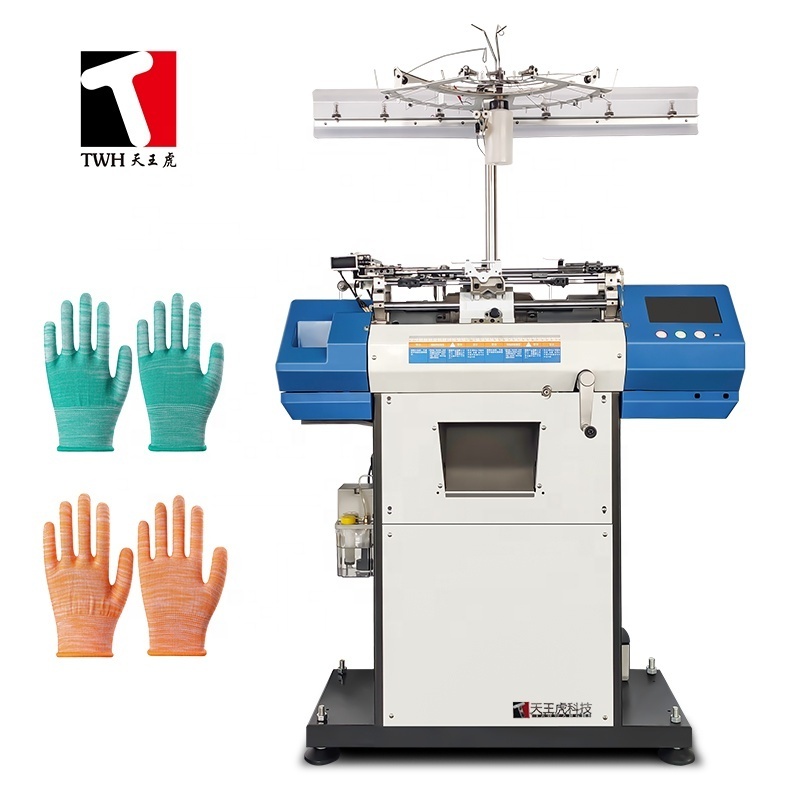

High-speed automatic Glove Making Machines
Related Products
Product Description
2021
High-speed automatic Glove Making Machines
MAIN FEATURE
* The operation panel adopts large-screen high-definition LCD full-screen touch, U disk copy output,simple
and convenient；
* Servo motor synchronous belt drive, arbitrarily change the head stroke, efficient and stable;
* Stepper motor density control system to achieve different weaving density for each part of each line;
* Stepper motor scissors control system, hook yarn, yarn cutting and yarn laying at any position;
* The needle selection roller adopts the screw linkage to ensure the position of the front and rear syringes;
* Stepper motor elastic thread feeding system, computer control the size of the mouth, evenly feeding the yarn;
* Intelligent oil supply system, implementing lubrication friction parts;
* Broken finger weaving system to reduce raw material loss.
* The operation panel adopts large-screen high-definition LCD full-screen touch, U disk copy output,simple
and convenient；
* Servo motor synchronous belt drive, arbitrarily change the head stroke, efficient and stable;
* Stepper motor density control system to achieve different weaving density for each part of each line;
* Stepper motor scissors control system, hook yarn, yarn cutting and yarn laying at any position;
* The needle selection roller adopts the screw linkage to ensure the position of the front and rear syringes;
* Stepper motor elastic thread feeding system, computer control the size of the mouth, evenly feeding the yarn;
* Intelligent oil supply system, implementing lubrication friction parts;
* Broken finger weaving system to reduce raw material loss.
Operating Procedures
Pattern preparation:
The pattern edited by the plate-making system is operated on the file management interface and input into the computer memory, and then the required size is switched according to the actual situation. After reading the pattern or changing the size, enter the running interface to reset and take effect.
Parameter setting:
System parameters Each glove machine has a customized set of parameters determined by its own machinery, such as needle zero position, needle plate length, etc., which have been debugged before leaving the factory, and users generally do not need to modify them. If they need to be modified, they must be professional Personnel.
Working parameters The parameters used by the computer according to the needs of the work, such as the upper limit of the main motor high speed, the turning distance of the head, etc.
A series of parameters closely related to the knitting pattern.
(Note: The knitting parameters are automatically saved when returning to the main interface, and can be saved to the U disk along with the pattern.)
Work confirmation:
The final confirmation of the pattern program, various parameters, and normal operation of the mechanism to be knitted.
Machine operation:
After the above work is completed, use the start button to start the glove machine for knitting.
Mechanical details
|
Contacts
|
7G
|
10g
|
13g
|
||
|
size
|
L3:58/L2:52/L:46/M:42/S:37
|
L3:73/L2:68/L:63/M:58/S:53
|
L3:98/L2:93/L:88/M:83/S:78/XS:73
|
||
|
Average yield
|
18 pairs/hour
|
15 pairs/hour
|
9 pairs/hour
|
||
|
Container capacity
|
48 units/20’FT; 96 units/40’HQ
|
|
|
||
|
power supply
|
Single-phase power supply，220V，140W
|
|
|
||
|
Fuel supply method
|
Automatic oil supply
|
|
|
||
|
Weave density
|
Stepper motor control
|
|
|
||
|
control and display system
|
Computer control, 7-inch touch screen display, USB data transmission
|
|
|
||
|
Transmission system
|
Belt drive, AC servo motor
|
|
|
||
|
Nose
|
Belt drive, AC servo motor
|
|
|
||
|
size
|
990mm(L)*600mm(W)*1700mm(H)
|
|
|
||
