Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 3000 r.p.m
-
Width of bed (mm):
-
220
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2024
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
XiaShi
-
Model Number:
-
G1340
-
Voltage:
-
380V,50HZ,3P
-
Dimension(L*W*H):
-
1705x585x1030mm
-
Weight (KG):
-
330 KG
-
Marketing Type:
-
Other
-
name:
-
G1340 mini lathe mill drill combo
-
Swing diameter over table:
-
190mm/7.5"
-
Max swing over bed:
-
330mm/13"
-
Distance between centers:
-
1000mm/40"
-
Spindle bore:
-
28mm/1.1"
-
Spindle speed (infinitely):
-
50-3000r/min
-
Longitudinal stoke:
-
890mm/35"
-
Cross stoke:
-
185mm/7.3"
-
mini lathe machine:
-
multi-purpose lathe machine
-
miniature lathe:
-
smallest lathe
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
50 - 3000 r.p.m
-
Width of bed (mm):
-
220
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
2024
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
XiaShi
-
Model Number:
-
G1340
-
Voltage:
-
380V,50HZ,3P
-
Dimension(L*W*H):
-
1705x585x1030mm
-
Weight (KG):
-
330 KG
-
Marketing Type:
-
Other
-
name:
-
G1340 mini lathe mill drill combo
-
Swing diameter over table:
-
190mm/7.5"
-
Max swing over bed:
-
330mm/13"
-
Distance between centers:
-
1000mm/40"
-
Spindle bore:
-
28mm/1.1"
-
Spindle speed (infinitely):
-
50-3000r/min
-
Longitudinal stoke:
-
890mm/35"
-
Cross stoke:
-
185mm/7.3"
-
mini lathe machine:
-
multi-purpose lathe machine
-
miniature lathe:
-
smallest lathe

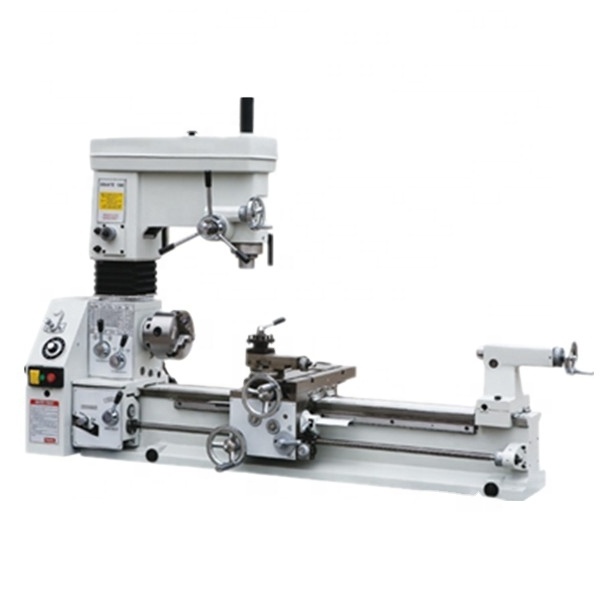

G1340 mini lathe mill drill combo
Introduction:
*
Has the purposes of turning, drilling, milling, boring & thread-cutting
*DC brushless motor, big torque at low speed, infinitely variable speed
*Power-driven for table in milling
*Cam clamping chuck
*Lengthened table
Features:
*Has the devices of safety interlock & an overload safety
*Lengthened drilling/milling box, 360 degree rotation in vertical plane
|
SPECIFICATIONS |
G1340 |
G1324 |
|
Swing diameter over bed |
330mm/13" |
330mm/13" |
|
Swing diameter over table |
190mm/7.5" |
190mm/7.5" |
|
Distance between centers |
1000mm/40" |
610mm/24" |
|
Spindle bore |
28mm/1.1" |
28mm/1.1" |
|
Spindle speed (infinitely) |
50-3000r/min |
50-3000r/min |
|
Longitudinal stoke |
890mm/35" |
510mm/20" |
|
Cross stoke |
185mm/7.3" |
185mm/7.3" |
|
Small toolpost stroke |
70mm/2.75" |
70mm/2.75" |
|
Metric pitch/grade |
0.35-6.5mm /24 |
0.35-6.5mm /24 |
|
Inch pitch/grade |
7-52T.P.I/21 |
7-52T.P.I/21 |
|
Longitudinal feed/grade |
0.067-0.5mm/r/21 |
0.067-0.5mm/r/21 |
|
Cross feed/grade |
0.021-0.157mm/r/21 |
0.021-0.157mm/r/21 |
|
Milling-drilling spindle taper |
MT3/R8 |
MT3/R8 |
|
Milling-drilling shaft stroke |
127mm/5" |
127mm/5" |
|
Milling-drilling box stroke |
110mm/4.33" |
110mm/4.33" |
|
Table size |
450x170mm/17.7"x6.7" |
450x170mm/17.7"x6.7" |
|
Drilling dia. |
24mm/0.95" |
24mm/0.95" |
|
Power of motor |
1.1KW |
1.1KW |
|
N.W./G.W. |
330/380kg |
300/350kg |
|
Overall Dimensions of machine(L*W*H) |
1705x585x1030mm |
1325x585x1030mm |
|
Case dimensions of machine(L*W*H) |
1640x570x1100mm |
1260x570x1100mm |
|
Case dimensions of stand(L*W*H) |
Left :760x450x410,Right:760x 450x350mm |
left :760x450x410,right:760x 450x350mm |
Picture detail
Why Choose us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you hav e any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
