Quick Details
-
Pulse Frequency:
-
50/60Hz
-
Pilot Arc Current:
-
20-400
-
Rated Duty Cycle:
-
60%@400A
-
Dimensions:
-
76*32*46cm
-
Usage:
-
steel, stainless steel and cast iron welding
-
Voltage:
-
380V , 3 phase
-
Power:
-
18.8Kw
-
Weight (KG):
-
30 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
400A MOSFET inverter welding machine
-
Color:
-
Orange / OEM available
-
Weight:
-
30Kg
-
Efficiency:
-
85%
-
Welding current range:
-
20-400A
-
Max no-load voltage:
-
63V
-
Protection class:
-
IP21S
-
Insulation class:
-
F
-
Applied welding rod:
-
1.6-5 mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Smarter-tools
-
Arc Current:
-
400A
-
Pulse Frequency:
-
50/60Hz
-
Pilot Arc Current:
-
20-400
-
Rated Duty Cycle:
-
60%@400A
-
Dimensions:
-
76*32*46cm
-
Usage:
-
steel, stainless steel and cast iron welding
-
Voltage:
-
380V , 3 phase
-
Power:
-
18.8Kw
-
Weight (KG):
-
30 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
400A MOSFET inverter welding machine
-
Color:
-
Orange / OEM available
-
Weight:
-
30Kg
-
Efficiency:
-
85%
-
Welding current range:
-
20-400A
-
Max no-load voltage:
-
63V
-
Protection class:
-
IP21S
-
Insulation class:
-
F
-
Applied welding rod:
-
1.6-5 mm

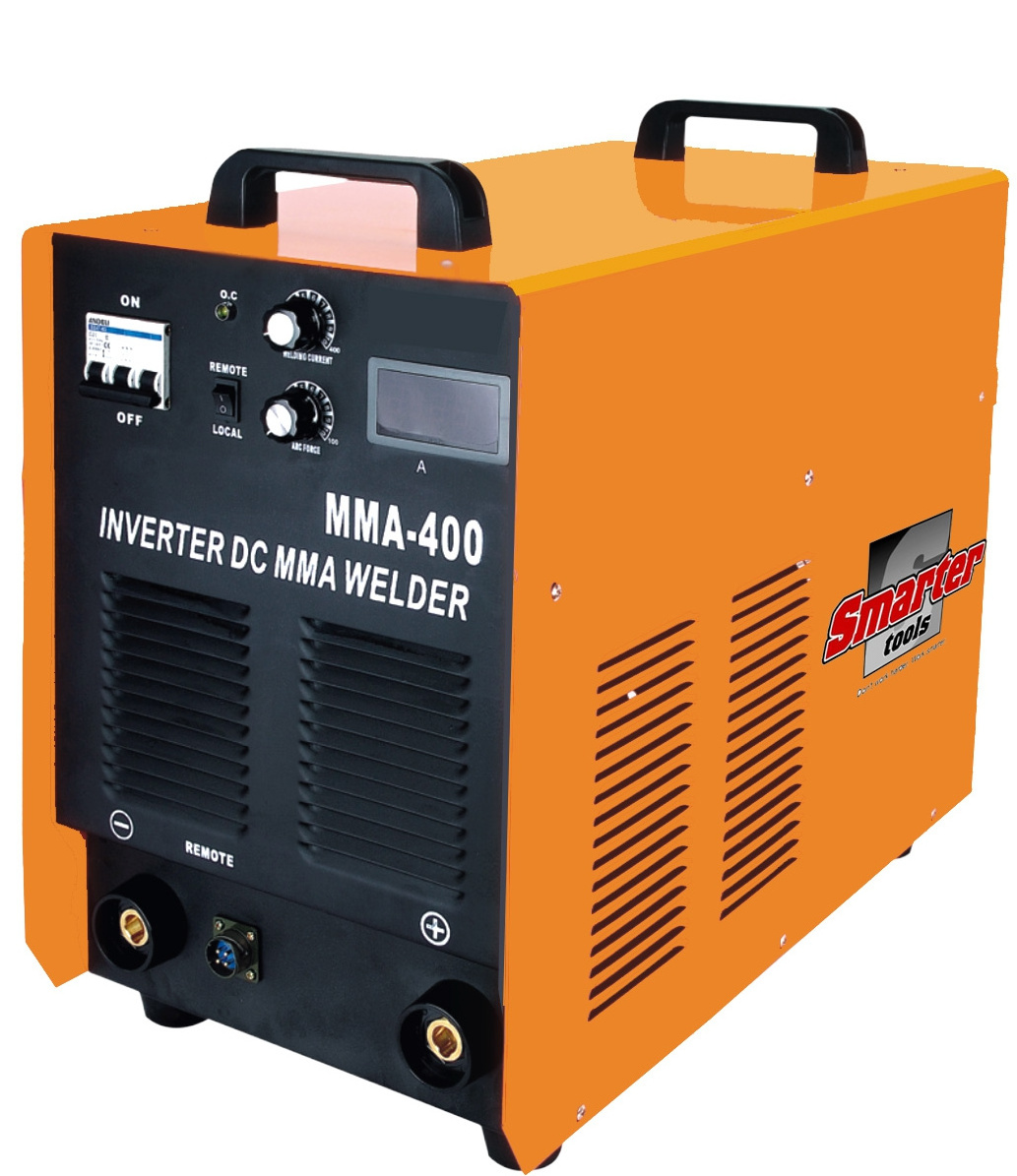

60% Heavy Duty Industrial IGBT Inverter Welder 300A
Email: sales03(a)smarter-tool.com
Brief introduction of the IGBT inverter welder
1. Portable IGBT inverter arc welding machine, three phrase input, air cooled
2. Stable DC output, internally installed heat arcing, anti-sticking and arc force, current output stepless adjustment.
3. Power input indication and overheat input indication on machine
4. Overheating and overload protection function on machine
5. Can use acid and basic electrode, fit for general steel, stainless steel
and cast iron welding
6. Can use 1.6-5mm electrode.
Technical parameter of the IGBT inverter welder
|
Item Model |
MMA-315T |
MMA-400T |
|
Input voltage(V) |
380V |
380V |
|
Frequency(Hz) |
50/60 |
50/60 |
|
Input current(A) |
14.5 |
19 |
|
Input power(KW) |
6 |
9 |
|
No load voltage(V) |
60±5% |
60±5% |
|
Rated operational voltage(V) |
30 |
32.6 |
|
Input current adjusting range(A) |
20-250 |
20-315 |
|
Rated duty cycle |
60% |
60% |
|
Welding current 10min100% |
193A |
243A |
|
Insulation grade |
H |
H |
|
Power factor(cos ø ) |
0.93 |
0.93 |
|
Efficiency |
85% |
85% |
|
Overall dimensions(mm) |
543*330*445 |
543*330*445 |
|
Package Dimension(mm) |
553*340*460 |
553*340*460 |
|
Net Weight(Kg) |
13 |
14.7 |
|
Gross Weight(Kg) |
14.7 |
16.4 |
|
Protection degree |
IP21S |
IP21S |
|
Cooling type |
Air-cooled |
Air-cooled |
