Quick Details
-
Customized support:
-
OEM
-
Place of Origin:
-
GUA
-
Brand Name:
-
No brand
-
Model Number:
-
SYT-Z01-W
-
Mechanical Life:
-
100000 Times
-
Product name:
-
RF433 Wireless Self Powered Remote Control Smart Switch No Battery
-
Function:
-
wireless smart switch no battery no wiring
-
Type:
-
wall light switch, wireless wall button switch
-
Keyword:
-
moes switch, home automation, smart home, iot application
-
Color:
-
White
-
Application:
-
light
-
Max power:
-
1000W/220V
-
Standard:
-
EU, UK, US standard
-
Gang:
-
1/2 gang
-
Control Method:
-
RF Remote
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
110-230V
-
Network:
-
WIFI
-
Customized support:
-
OEM
-
Place of Origin:
-
GUA
-
Brand Name:
-
No brand
-
Model Number:
-
SYT-Z01-W
-
Mechanical Life:
-
100000 Times
-
Product name:
-
RF433 Wireless Self Powered Remote Control Smart Switch No Battery
-
Function:
-
wireless smart switch no battery no wiring
-
Type:
-
wall light switch, wireless wall button switch
-
Keyword:
-
moes switch, home automation, smart home, iot application
-
Color:
-
White
-
Application:
-
light
-
Max power:
-
1000W/220V
-
Standard:
-
EU, UK, US standard
-
Gang:
-
1/2 gang
-
Control Method:
-
RF Remote
Product Description

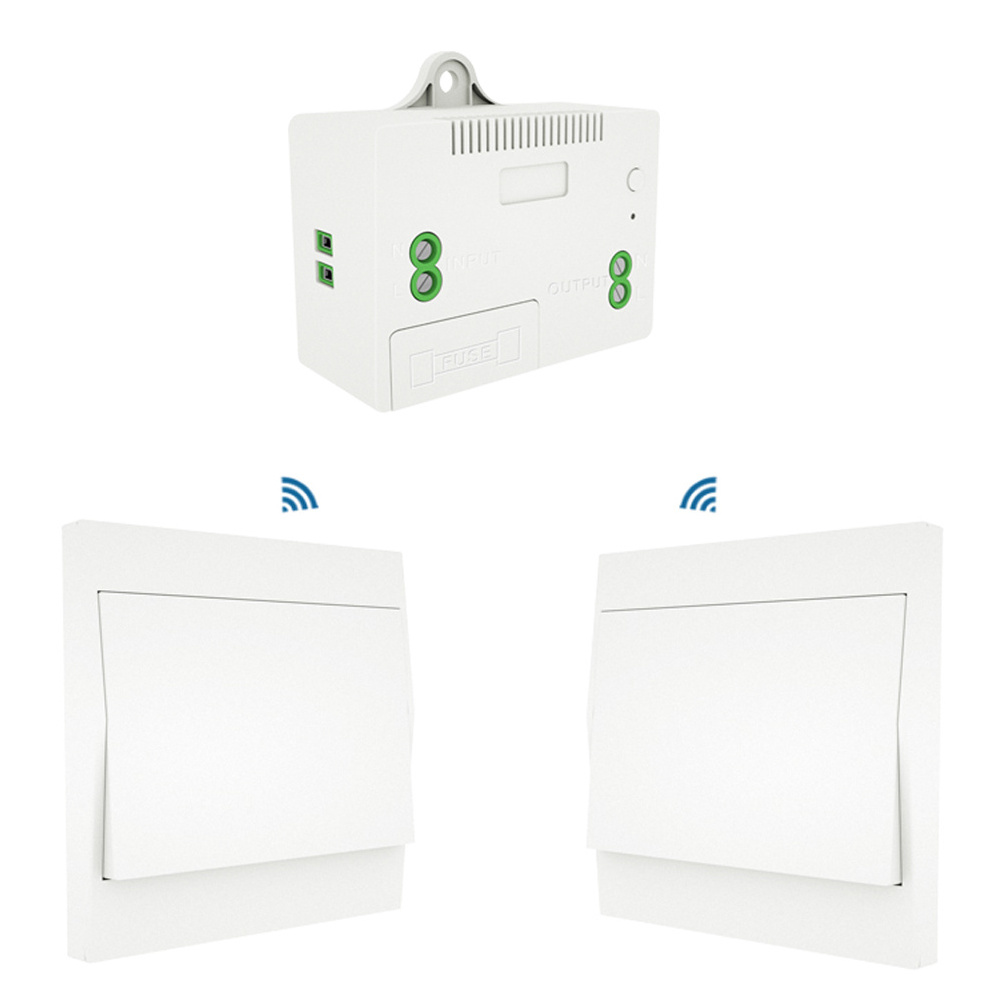

RF433No Battery Remote Control Wall Light Switch Self Powered Wireless Switch,No Wiring Needed Wall Panel Transmitter. RF433 receiver Home Automation
1. Wireless Remote Control:Control your electrical applicationswith the wall panel transmitter within the range required.
2.No WiFi/Battery to Control:With the self powered feature of the Wall Panel Remote Transmitter Switch,you are able to remotely control the devices connected to the RF433 Relay Receivers without WiFi or battery,as long as match the switch to the receiver in advance.Also,the rocker push button enables a lot convenience to your smart life.
3.Multi-Functinal Switch:One Wall Panel Remote Transmitter Switch is able to control multiple RF433 Relay Receivers,and multiple Wall Panel Remote Transmitter Switches can also control one RF Relay Receivers at the same time.Stick the switch with the double-sided tape include.
4.Customer Protection:60 days refund guarantee and return for any reasons within 15 days.ce,CCC ,RoHS Listed.
5. Attention:The RF433 Relay Receiver and the Wall Panel Remote Transmitter Switch must be used together with the same type,so you can’t buy one receiver or one switch alone,or use the self generating wall panel transmitter to connect with other type of receiver.(Two Packaging Optional:one receiver with one transmitter and one receiver with two transmitters)
2.No WiFi/Battery to Control:With the self powered feature of the Wall Panel Remote Transmitter Switch,you are able to remotely control the devices connected to the RF433 Relay Receivers without WiFi or battery,as long as match the switch to the receiver in advance.Also,the rocker push button enables a lot convenience to your smart life.
3.Multi-Functinal Switch:One Wall Panel Remote Transmitter Switch is able to control multiple RF433 Relay Receivers,and multiple Wall Panel Remote Transmitter Switches can also control one RF Relay Receivers at the same time.Stick the switch with the double-sided tape include.
4.Customer Protection:60 days refund guarantee and return for any reasons within 15 days.ce,CCC ,RoHS Listed.
5. Attention:The RF433 Relay Receiver and the Wall Panel Remote Transmitter Switch must be used together with the same type,so you can’t buy one receiver or one switch alone,or use the self generating wall panel transmitter to connect with other type of receiver.(Two Packaging Optional:one receiver with one transmitter and one receiver with two transmitters)
Technical Data Of Wall Panel Transmitter:
Operating Frequency: 433MHz.
Material: HDPE(Type2) Plastic.
Coding Specification: 1527.
Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).
Color: White
Size(L/W/H): 86mm x 86mm x 13mm.
Weight: 60g/2.1ounces.
Operating Frequency: 433MHz.
Material: HDPE(Type2) Plastic.
Coding Specification: 1527.
Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).
Color: White
Size(L/W/H): 86mm x 86mm x 13mm.
Weight: 60g/2.1ounces.
Technical Data Of Receiver:
Encoding Type: Intelligent Learning Code.
RF Working Mode: Superheterodyne Reception.
Modulation Mode: ASK.
RF Frequency: 433MHz.
Working Mode: Momentary, Toggle and Latching.
Input Voltage: AC 85V~250V.
Quiescent Current: 5mA.
Receiving Sensitivity: >97dbm.
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Output Terminal: NO,COM,NC.
NO: Normal Open(Output).
COM: Common(Output).
NC: Normal Close(Output).
Color: Green(PCB Board), Black (Outside Shell).
Package Size: 8.1 * 3.6 * 2.0cm / 3.1 * 1.2 * 0.78in.
Package Weight: 40g /1.41oz.
Encoding Type: Intelligent Learning Code.
RF Working Mode: Superheterodyne Reception.
Modulation Mode: ASK.
RF Frequency: 433MHz.
Working Mode: Momentary, Toggle and Latching.
Input Voltage: AC 85V~250V.
Quiescent Current: 5mA.
Receiving Sensitivity: >97dbm.
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Output Terminal: NO,COM,NC.
NO: Normal Open(Output).
COM: Common(Output).
NC: Normal Close(Output).
Color: Green(PCB Board), Black (Outside Shell).
Package Size: 8.1 * 3.6 * 2.0cm / 3.1 * 1.2 * 0.78in.
Package Weight: 40g /1.41oz.
Contact information:
nicole@novanewenergy.com
whatsapp:008613736393028
Specification
|
item
|
RF433 Wireless Self Powered Remote Control Smart Switch No Battery Needed No Wire.Wall Panel Transmitter, Rocker Push Button wall light switches
|
|
Model Number
|
SYT-Z01-W
|
|
Max. Voltage
|
110-230V
|
|
Mechanical Life
|
100000 Times
|
|
Product name
|
RF433 Wireless Self Powered Remote Control Smart Switch No Battery
|
|
Function
|
wireless smart switch no battery no wiring
|
|
Color
|
White
|
|
Keyword
|
moes switch, home automation, smart home, iot application
|
|
Application
|
light
|
|
Max power
|
1000W/220V
|
|
Standard
|
EU, UK, US standard
|
|
Gang
|
1/2 gang
|
|
Control Method
|
RF Remote
|
Packing & Delivery
* Notice:The package Included different products because you choose a different options.(Either a 1Gang or 2Gang is optional,combined with the receiver you must buy to use together.You shall choose one receiver with one transmitter together or one receiver with two transmitters together.)
* 2*Double-sided tapes for each transmitter
