Quick Details
-
Model Number:
-
HS 6KVA
-
Weight:
-
57kg
-
Product name:
-
high frenquency ups 6kva microprocessor control ups
-
Capacity:
-
6KVA
-
Wave Form:
-
Pure Sine wave
-
Battery Type:
-
Lead Acid Battery
-
Certification:
-
CE/TLC
-
Color:
-
Black
-
Products:
-
On line double conversion UPS
-
Display:
-
LCD+LED
-
Input voltage:
-
85-280vac
-
Transfer Time:
-
0ms
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAYKEE or OEM
-
Model Number:
-
HS 6KVA
-
Weight:
-
57kg
-
Product name:
-
high frenquency ups 6kva microprocessor control ups
-
Capacity:
-
6KVA
-
Wave Form:
-
Pure Sine wave
-
Battery Type:
-
Lead Acid Battery
-
Certification:
-
CE/TLC
-
Color:
-
Black
-
Products:
-
On line double conversion UPS
-
Display:
-
LCD+LED
-
Input voltage:
-
85-280vac
-
Transfer Time:
-
0ms
You may also like
Product Description

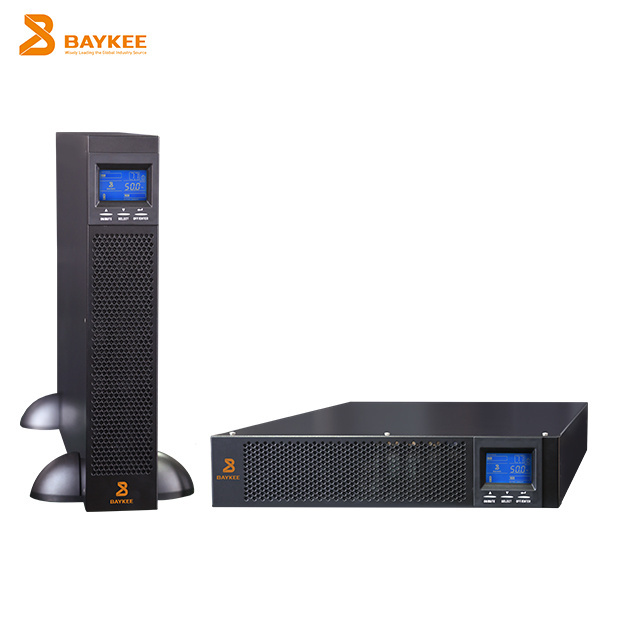

HS ( HTS ) Series Single phase, Three phase high frequency online UPS
HS ( HTS ) series is on-line double conversion UPS, HS capacity include from 1kVA to 10kVA ( single phase input and single phase output ), HTS series capacity include from 10kVA to 20kVA ( three phase input and single phase output ).The power factor of the high frequency ups can reach from 0.8 to 1. The whole efficiency reaches to 90%. The online UPS have small volume, light weight, high efficiency, zero transfer time and pure sine wave output etc features. It is adopt the most advanced interface information operation technology, the user can see the UPS and protection function, and the long distance monitoring can reach the international advanced level. It is the power guard for data processing centre, host system, integrated computer network, ISP service, telecom, computer room etc.
* 35 degree adjustable drawing LCD display panel for 6kVA-10kVA
* UPS operation status, load status, battery status via LCD
* Intelligent digital control, increase the ups stability
* Input power factor correction ( PFC ), reduce pollution to utility grid
* Wide input voltage range, compatible with different utilities
* 8 output power factor lives up to the load trend and stronger load
* Excellent input frequency range, make the ups adapt to the different power supply equipment
* Adopt high precision SMD technology, improve the circuit reliability and running precision
* Cold start
* Intelligent battery management, extend the battery life
* Silencer device, better environment protections
* RS232 communication port, optional USB/SNMP card
* Input line and neutral detecting functions
* Self diagnosis when turn on the UPS, inspect all kinds of ups work status
* Can support software system: windows, windows Net , LAN manager, etc
* Optional standard battery bank or extension battery bank
HS ( HTS ) main features
* High frequency and true online double-conversion
* 35 degree adjustable drawing LCD display panel for 6kVA-10kVA
* UPS operation status, load status, battery status via LCD
* Intelligent digital control, increase the ups stability
* Input power factor correction ( PFC ), reduce pollution to utility grid
* Wide input voltage range, compatible with different utilities
* 8 output power factor lives up to the load trend and stronger load
* Excellent input frequency range, make the ups adapt to the different power supply equipment
* Adopt high precision SMD technology, improve the circuit reliability and running precision
* Cold start
* Intelligent battery management, extend the battery life
* Silencer device, better environment protections
* RS232 communication port, optional USB/SNMP card
* Input line and neutral detecting functions
* Self diagnosis when turn on the UPS, inspect all kinds of ups work status
* Can support software system: windows, windows Net , LAN manager, etc
* Optional standard battery bank or extension battery bank
Specification
HS Series Specification
|
Model
|
|
HS-1kH/
HS-1kS/
HS-1kRH
|
HS-2kH/
HS-2kS/
HS-2kRH
|
HS-3kH/
HS-3kS/
HS-3kRH
|
HS-6kH/
HS-6kS/
HS-6kRH
|
HS-10kH/
HS-10kS/
HS-10kHR
|
||||||
|
Phase
|
|
Single phase & earth ground
|
|
|
|
|
||||||
|
Rated power
|
|
1kVA/0.8kW
|
2kVA/1.6kW
|
3kVA2.4kW
|
6kVA/4.8kW
|
10kVA/8kW
|
||||||
|
Input
|
|
|
|
|
|
|
||||||
|
Voltage range
|
Low voltage conversion
|
160VAC/140VAC/120VAC/110VAC±5% @100% -80%/80%-70%/70%-60%/60%-0 load
|
|
|
190VAC±3% @ 100% load
150VAC±3% @ 50% load
|
|
||||||
|
|
Low voltage recovery
|
175VAC/155VAC/135VAC/125VAC±5% @ 100% -80%/80%-70%/70%-60%/60%-0 load
|
|
|
195VAC±3% @ 100% load
155VAC±3% @ 50% load
|
|
||||||
|
|
High voltage conversion
|
300VAC±5%
|
|
|
275VAC±3%
|
|
||||||
|
|
High voltage recovery
|
290VAC±5%
|
|
|
270VAC±3%
|
|
||||||
|
Frequency range
|
|
40Hz~70Hz
|
|
|
46Hz~54Hz
|
|
||||||
|
Power specifications
|
|
>=0.99 @ 220-230VAC（input power）
|
|
|
|
|
||||||
|
Output
|
|
|
|
|
|
|
||||||
|
Output voltage
|
|
200/208/220/230/240VAC
|
|
|
220VAC
|
|
||||||
|
Voltage range( battery mode)
|
|
±1%
|
|
|
|
|
||||||
|
Frequency range (synchronous correction range )
|
|
47~53Hz or 57Hz~63Hz
|
|
|
46~54Hz or 56Hz~64Hz
|
|
||||||
|
Frequency range(battery mode)
|
|
50Hz±0.25Hz or 60Hz±0.3Hz
|
|
|
50Hz±0.1Hz or 60Hz±0.1Hz
|
|
||||||
|
Surge ratio
|
|
3:1
|
|
|
|
|
||||||
|
Harmonic distortion
|
|
≤3% THD (linear load),
≤6% THD (nonlinear load)
|
|
|
≤3% THD (linear load),
≤6% THD (nonlinear load)
|
|
||||||
|
Transfer time
|
AC to DC
|
Zero
|
|
|
|
|
||||||
|
|
Inverter to bypass
|
4ms(Typical)
|
|
|
Zero
|
|
||||||
|
Waveform(battery mode)
|
|
True pure sine wave
|
|
|
|
|
||||||
|
Efficiency
|
|
|
|
|
|
|
||||||
|
AC mains mode
|
|
88%
|
90%
|
|
90%
|
|
||||||
|
Battery mode
|
|
83%
|
87%
|
|
88%
|
|
||||||
|
Battery
|
|
|
|
|
|
|
||||||
|
Standard machine
|
Battery
|
12V9Ah
|
12V9Ah
|
12V9Ah
|
12V9Ah
|
12V9Ah
|
||||||
|
|
number
|
2
|
4
|
6
|
16
|
16
|
||||||
|
|
Charge time
|
4 hours charging to 90%
|
|
|
7 hours charging to 90%
|
|
||||||
|
|
Max. charge current
|
1A
|
|
|
|
|
||||||
|
|
Charge voltage
|
27.3VDC±1%
|
54.7VDC±1%
|
82VDC±1%
|
219.2VDC±1%
|
|
||||||
|
Long backup time machine
|
Battery
|
External battery
|
|
|
|
|
||||||
|
|
Number
|
|
|
|
|
|
||||||
|
|
Max. charge current
|
1A/2A/4A/6A
|
|
|
5A
|
|
||||||
|
|
Charge voltage
|
27.4/41VDC±1%
|
54.7/82.1/109.4VDC±1%
|
82.1/109.4VDC±1%
|
219VDC±1%
|
|
||||||
|
Display
|
|
|
|
|
|
|
||||||
|
LCD or LED
|
|
Load, battery capacity, AC mains mode, battery mode, bypass mode, fault indicator
|
|
|
|
|
||||||
|
Alarming voice
|
|
|
|
|
|
|
||||||
|
Battery mode
|
|
Ring one time per 4 seconds
|
|
|
|
|
||||||
|
Battery low capacity
|
|
Ring one time per 1 seconds
|
|
|
|
|
||||||
|
Overload
|
|
Ring one time per 0.5 second
|
|
|
|
|
||||||
|
Faults
|
|
Continue to ring
|
|
|
|
|
||||||
|
Physical performance
|
|
|
|
|
|
|
||||||
|
Standard machine
|
Tower size D*W*H mm
|
282*145*220
|
397*145*220
|
421*190*318
|
520*248*616
|
520*248*616
|
||||||
|
|
Weight(kg
|
9.8
|
17
|
27.6
|
57
|
58.5
|
||||||
|
Long backup time machine
|
Tower size D*W*H mm
|
282*145*220
|
397*145*220
|
397*145*220
|
520*240*460
|
520*240*460
|
||||||
|
|
Weight(kg)
|
4.1
|
6.8
|
7.4
|
19.5
|
21.5
|
||||||
|
Rack mounted machine
|
Tower size D*W*H mm
|
310*438*88
|
410*438*88
|
410*438*88
|
647*484*130
|
647*484*130
|
||||||
|
|
Weight(kg)
|
9
|
12
|
41.2
|
19.5
|
21.5
|
||||||
|
Environment
|
|
|
|
|
|
|
||||||
|
Humidity
|
|
20-90% RH @ 0-40℃ (No condensation)
|
|
|
|
|
||||||
|
Noise
|
|
<50dB @ 1M
|
|
|
<50dB @1 M
|
<50dB @ 1M
|
||||||
|
Control management
|
|
|
|
|
|
|
||||||
|
Smart RS-232 (optional USB)
|
|
Support windows2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
|
|
|
|
|
||||||
|
Optional SNMP
|
|
Support SNMP card for remote control
|
|
|
|
|
||||||
|
Machine type
|
HTS-10kH
|
HTS-15kH
|
HTS-20kH
|
|||
|
Dimension（W×D×H）
|
248× 520× 616
|
|
|
|||
|
Net weight（Kg）
|
28.5
|
36.5
|
36.5
|
|||
|
Power
|
|
|
|
|||
|
Apparent power（KVA）Active power（KW）
|
10kVA/8kW
|
15kVA/12kW
|
20kVA/16kW
|
|||
|
Electric supply
|
|
|
|
|||
|
Range of voltage
|
220VAC～478VAC
|
|
|
|||
|
Electric current
|
59A.max
|
86A.max
|
112A.max
|
|||
|
Range of frequency
|
46Hz～54Hz
|
|
|
|||
|
Power factor
|
0.95
|
|
|
|||
|
Output
|
|
|
|
|||
|
Voltage
|
220VAC(230VAC)×（1±1%）
|
|
|
|||
|
Electric current
|
45A
|
68A
|
91A
|
|||
|
Frequency
|
46Hz~54Hz(following the electric supply)，50Hz×(1±0.1%)(battery mode)
|
|
|
|||
|
Power factor
|
0.8
|
|
|
|||
|
Overload capacity
|
105%～125%，changing into bypass after 1min；125%～135%，changing into bypass after 30seconds and output disconnected after 1min；>135%，
changing into bypass after 0.5seconds
|
|
|
|||
|
Peak value
|
3:01
|
|
|
|||
|
Distortion
|
THD<2% (linear full load)
|
|
|
|||
|
Storage battery （Its lifespan will be decreased sharply in case of using it in high temperature.）
|
|
|
|
|||
|
Backup time
|
Depending on the capacity of the external battery
|
|
|
|||
|
Charging time
|
Depending on the capacity of the external battery
|
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
