Quick Details
-
Color:
-
Customized
-
Floor:
-
MGO Board/cement-fibre board
-
Wall Panel:
-
EPS/Rock wool sandwich panels
-
Window:
-
Aluminum Window
-
Door:
-
High-end Glass Door
-
Size:
-
Customized
-
Style:
-
Modern Simple
-
Certification:
-
ISO9001/ISO14001/CE
-
Project Solution Capability:
-
graphic design/3D model design
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
zhongnan
-
Product name:
-
Modular Mobile Prefabricated Tiny House Prefab Container House
-
Color:
-
Customized
-
Floor:
-
MGO Board/cement-fibre board
-
Wall Panel:
-
EPS/Rock wool sandwich panels
-
Window:
-
Aluminum Window
-
Door:
-
High-end Glass Door
-
Size:
-
Customized
-
Style:
-
Modern Simple
-
Certification:
-
ISO9001/ISO14001/CE
-
Project Solution Capability:
-
graphic design/3D model design

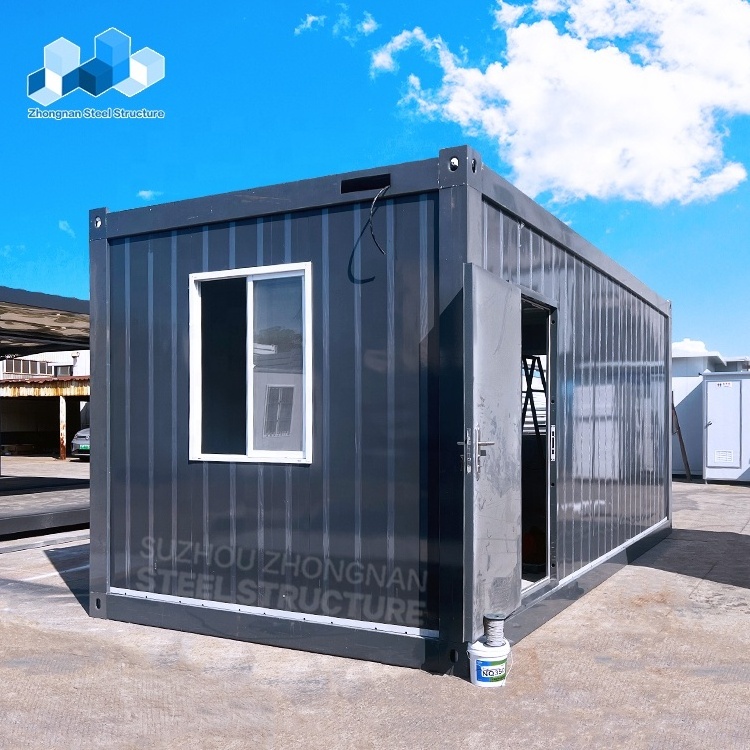

Zhongnan Detachable Office mobile Flat Pack Prefab house modular glass wall tiny home prefabricated Container House
| Container House Parameters | ||
| Size | 20FT/40FT Customized | |
| Life span | More than 35 years | |
| Steel Frame | Main Beam For Floor And Bottom | Galvanized formed beam |
| Thickness:3.0mm,2.5mm,2.3mm | ||
| Top Frame | C shape steel:C80*1.3mm,galvanized | |
| Square tube: 20*20*1.0mm,galvanized | ||
| Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||
| Bottom Frame | Square tube: 50*100*1.2mm,galvanized | |
| Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||
| Column | Galvanized steel Column | |
| Corner fitting | Galvanized steel | |
| Wall system | 75mm Sandwich Panel | 75mm rock wool board,density≥80kg/m3 |
| Floor | Fiber Cement Board | Thickness :18mm |
| Vinyl flooring | Thickness:1.6mm/2.0mm | |
| Roof | Ceiling | V-831 type,0.4mm Integrated Color Steel Sheet |
| Window | Sliding Window | 925mm*1100mm |
| Door | Steel Security Door | 840mm*2035mm |
| Electrical Device |
100V- 250V, 2P63A, Using IP44 standard power distribution box. main power cable is 6m², AC cable is 4m², socket cable is 2.5m², lighting & switch cable is 1.5m².
Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light,2*15W.ADAPTS power supply according to different countries and regions |
|
| Accessories | Screw ,Blot, Silicon sealant,etc | |
