Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Oceanblue
-
Dimension(L*W*H):
-
3990*1980*3000mm
-
Weight:
-
5000 KG, 5000 KG
-
Product name:
-

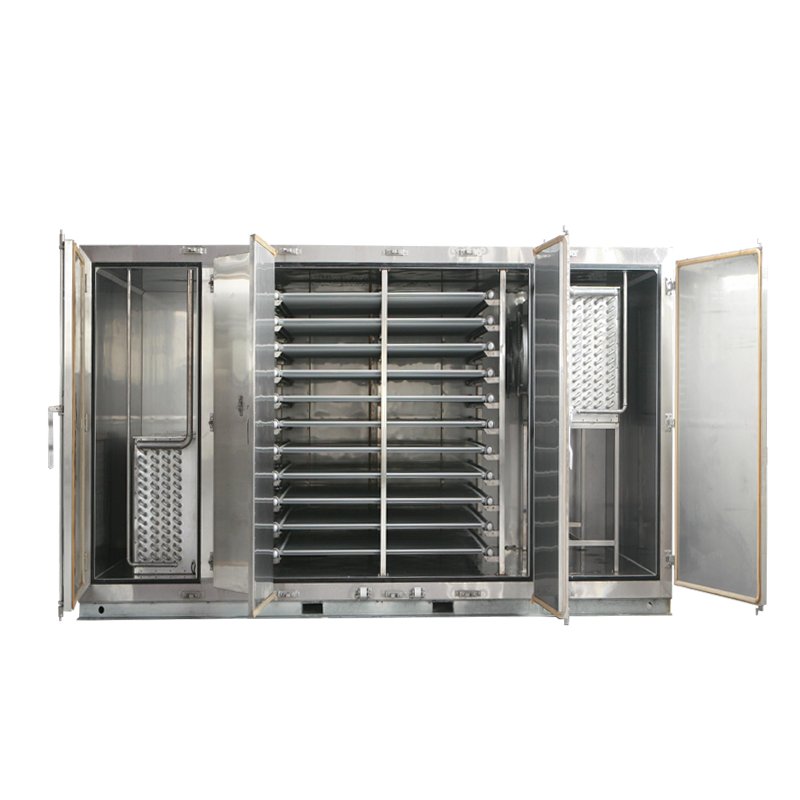

Cold room ocean small batch refrigerator vertical plate freezer
-
Material:
-
Stainless Steel
-
Application:
-
fish
-
Cold consumption:
-
58KW
-
Refrigerant:
-
NH3
-
Freezer type:
-
Contact plate freezer
-
Freezing time:
-
4 hours / time
-
Freezeing Capacity:
-
2100kg/tray
-
Effective surface:
-
39.8 m2
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
15kw
-
Cooling Capacity:
-
2100kg / tray
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Oceanblue
-
Dimension(L*W*H):
-
3990*1980*3000mm
-
Weight:
-
5000 KG, 5000 KG
-
Product name:
-
Cold room ocean small batch refrigerator vertical plate freezer
-
Material:
-
Stainless Steel
-
Application:
-
fish
-
Cold consumption:
-
58KW
-
Refrigerant:
-
NH3
-
Freezer type:
-
Contact plate freezer
-
Freezing time:
-
4 hours / time
-
Freezeing Capacity:
-
2100kg/tray
-
Effective surface:
-
39.8 m2
APPLICATION
1)Hydraulic contact plate freezer can quickly freeze products by moving up and down the inside aluminum plates .
2)Products contact with two plates and realize heat exchange .
3) Refrigeration system can be equipped as per different requirements of users.
4)It is suitable for freezing food in block on land or fishing vessel ,Such as fish fillet,surimi,shrimp,shellfish,etc.
Industrial refrigeration cold horizontal contact plate freezer
| Product | Capacity (kg/time) | Outline dimension | Weight(kg) |
| fish | 1200 | 4500*1670*2800 mm | 4900 |
Performance
Details
Feature
1) Designed to fit in limited space requirements. easy for installing and moving .
2) Both sides stainless steel panels .Good insulation.
3) Hydraulic up and down system and aluminum alloy plates double contact.
4) E asy for cleaning and meet hygiene requirement
PACKING : IN NUDE OR WOODEN CASE
