Quick Details
-
Model Number:
-
PR1
-
Brand Name:
-
Hikelok
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel 316
-
Product Name:
-
gas regulator
-
Max inlet pressure:
-
400 psi, 3500 psi
-
Outlet pressure range:
-
0-25 psi, 0-50 psi, 0-100 psi ...
-
Gauges:
-
No gauges or with guages
-
Inlet Size:
-
1/4 inch
-
Inlet Type:
-
Female NPT
-
Outlet Size:
-
1/4 inch
-
Product:
-
LPG CNG Gas High Pressure Reducing Regulator
Quick Details
-
Port Size:
-
1/2"NPT(F)
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
PR1
-
Brand Name:
-
Hikelok
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel 316
-
Product Name:
-
gas regulator
-
Max inlet pressure:
-
400 psi, 3500 psi
-
Outlet pressure range:
-
0-25 psi, 0-50 psi, 0-100 psi ...
-
Gauges:
-
No gauges or with guages
-
Inlet Size:
-
1/4 inch
-
Inlet Type:
-
Female NPT
-
Outlet Size:
-
1/4 inch
-
Product:
-
LPG CNG Gas High Pressure Reducing Regulator

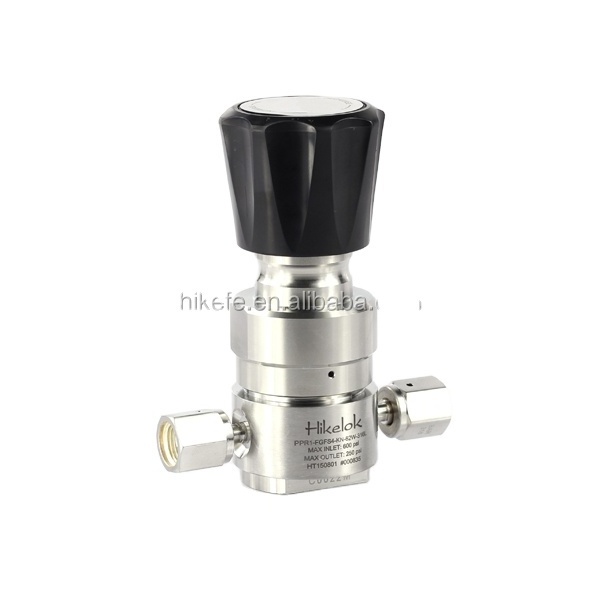

Pressure reducing regulator, LPG CNG low pressure gas regulator
Hikelok ® products are designed and precisely manufactured to intermix and interchange major global brands like Swagelok ® .
Features
- Single-stage pressure-reducing structure
- Metal-to-metal diaphragm seal
- Body thread: 1/2"NPT(F)
- Easy to clean internal structure
- Filter element installed internally
- Panel mounting and wall mounting available
Dimensions
Technical Data
- Maximum inlet pressure: 3000, 500PSIG
- Output pressure: 0-25, 0-50, 0-100, 0-250, 0-500PSIG
- Safety testing pressure: 1.5 times of maximum inlet pressure
- Working temperature: -40 -+165 deg F(-40-+74 deg C)
- Leakage rate: 2*10-8 atm cc/sec He
- CV value=0.08
-
-
Hikelok Main Products
CNG compressor parts 3 way gun valve trunnion ball valve
Brand Name: Hikelok 3 way valve;
Use for CNG dispenser;
6000 psi;
Supply its repair kit;
Like Swagelok three way ball valve ss-83XKF-4;
Port 1, Port 2, Port 3: 1/4" Female NPT.
Seat material: PTFE, PEEK or PCTFE.
Monoflange Double Block and Bleed Valve (DBB Valves)
Maximum working pressure: 10000 psi (688bar).
Working temperature: -54 to +648 C.
Orifice: from 1/8 in. to 1 in.
Flange connections in accordance with ASME B16.5 RF and RTJ.
NPT connections in accordance with B1.20.1.
Antiblowout ball valve stems and nonrotating seat tips.
Swagelok Double Ferrule Tube Fittings
Twin ferrule fittings provide metal-to-metal seal connections, non-elastomeric seals for leak-free connections.
Hikelok twin ferrule fitting is designed to have a maximum allowable working pressure that is higher than that of any tubing.
Industry standard design for all instrumentation grade tubing.
Stainless steel tube harderness: the hardness of the tube shall be not greater than 85 HRB.
Available in sizes from 1/16 to 2 in and 2mm to 50mm.
Hikelok fittings materials include 316 stainless steel, brass, nickel-copper, Hastelloy C, 6Mo, Incoloy 625 and 825.
Hikelok special treated Back ferrule is to provide secure.
Sliver coated threads to reduce galling.
Leak-proof joints capable of satisfying high pressure vacuum and vibration applications.
Low Pressure Proportional Relief Valve
Low pressure relief valve,
Cracking pressure: 5-350psi,
Reseat pressure < 5psi.
Size: from 1/8" to 1/2".
Manual override handles available to open the valve without changing the set pressure.
