1.
Small volume, low energy consumption, easy handling
2. Supporting alarm for over-temperature and for open circuit of thermocouple
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Application:
-
Laboratory Heating Test Equipment
-
Max temperature:
-
1200
-
Keywords:
-
1200c Muffle Furnace
-
Product name:
-
Muffle Furnace
-
Heating rate:
-
5-20C/min
-
Working temperature:
-
1100C(Continuous)
-
Power Supply:
-
220V/50Hz-60Hz
-
Chamber size:
-
100x100x100mm
-
Product Keywords:
-
Laboratory Equipment Electric Heat Muffle Furnace Made
-
Type:
-
Digital
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
CHEMN
-
Model Number:
-
BFC-1200-1L
-
Place of Origin:
-
Anhui, China
-
Application:
-
Laboratory Heating Test Equipment
-
Max temperature:
-
1200
-
Keywords:
-
1200c Muffle Furnace
-
Product name:
-
Muffle Furnace
-
Heating rate:
-
5-20C/min
-
Working temperature:
-
1100C(Continuous)
-
Power Supply:
-
220V/50Hz-60Hz
-
Chamber size:
-
100x100x100mm
-
Product Keywords:
-
Laboratory Equipment Electric Heat Muffle Furnace Made
-
Type:
-
Digital
Product Paramenters
|
Muffle Furnace' Technical Parameters
|
|
|
|
Model
|
BFC-1200-1L
|
|
|
Maximum temperature
|
1200 ℃ (short-term)
|
|
|
Rated temperature
|
1000 ℃
|
|
|
Recommended heating rate
|
10 ℃/min
|
|
|
Temperature control precision
|
±1 ℃
|
|
|
Thermocouple
|
K-type
|
|
|
Chamber size
|
100*100*100 mm (1L)
|
|
|
Heating surface
|
Left, right and top
|
|
|
Heating element
|
Beijing SHOUGANG HRE
|
|
|
Rated power
|
1KW
|
|
|
Weight
|
14KG
|
|
|
Adaptive power
|
AC220 V 50/60 HZ
|
|
|
Outline dimension
|
290*270*450 mm
|
|
Product Features

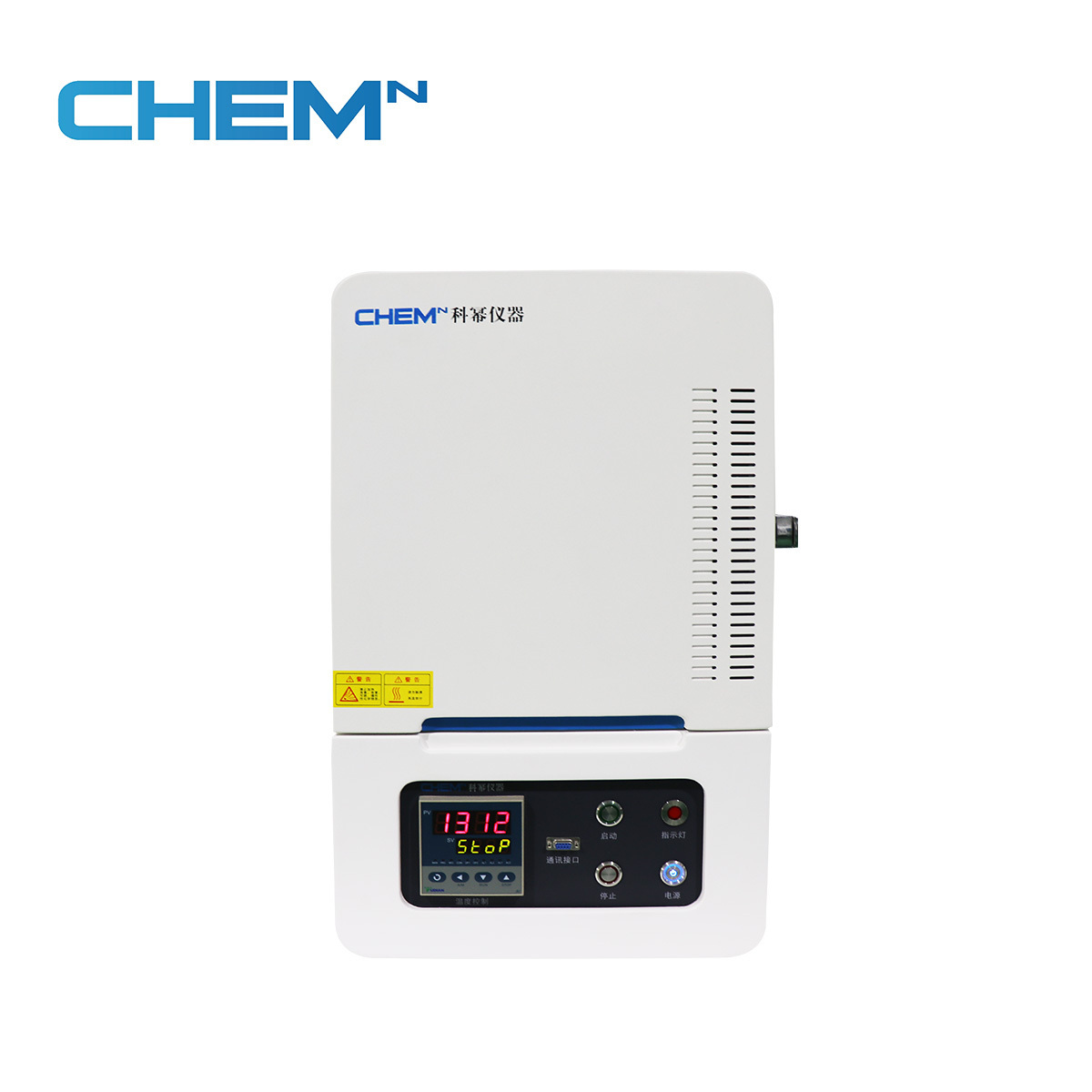

BFC Conventional Box Furnace /Mini Constant Temperature Box Furnace
The mini constant temperature box furnace is integrated with intelligent temperature control system. Adopting three-side heating design, the heating elements are distributed at the left, right and top to provide higher heating rate and uniform temperature. Digital display instrument with a higher temperature control precision is adopted to reduce manual operation errors and improve working efficiency. Besides, the equipment is also provided with emergency stop button and over-temperature alarm function to improve the safety of the equipment.
The mini constant temperature box furnace is integrated with intelligent temperature control system. Adopting three-side heating design, the heating elements are distributed at the left, right and top to provide higher heating rate and uniform temperature. Digital display instrument with a higher temperature control precision is adopted to reduce manual operation errors and improve working efficiency. Besides, the equipment is also provided with emergency stop button and over-temperature alarm function to improve the safety of the equipment.
