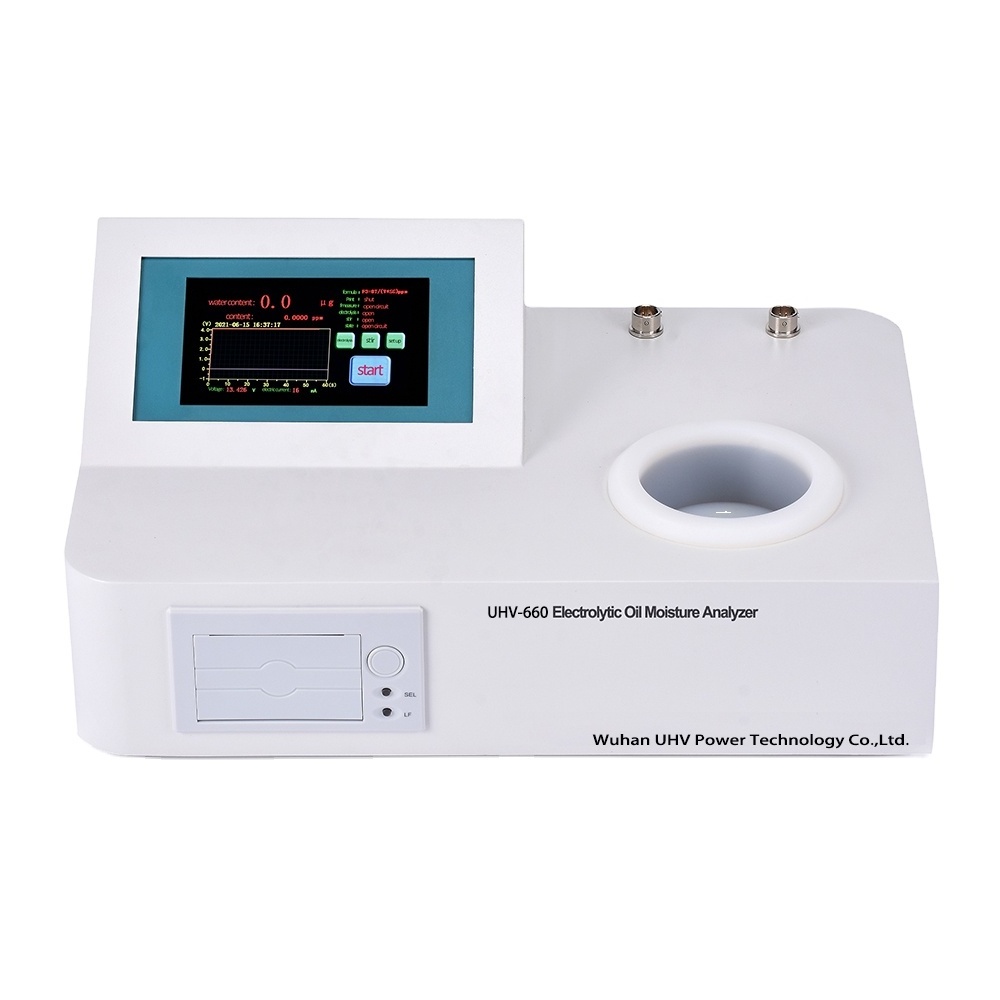

UHV-660 Enhanced Insulation Oil Water Content Testing with Automatic Trace Moisture Analyzer

UHV-660 Enhanced Insulation Oil Water Content Testing with Automatic Trace Moisture Analyzer

FOB Reference Price: Get Latest Price

≥1 Sets

US $1400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: UHV

Model Number:: UHV-660

Product name:: Trace Moisture Tester

Maximum power consumption:: 30W

Power supply:: AC220V±20%

Dimension:: 320*240*150(mm)

Electrolysis water volume:: 10ug~1000ug

Measuring range:: 0ug~200mg

Resolution:: 0.1ug

Temperature range:: 10~35℃

Humidity:: <85%

Weight:: 5kg

Quick Details

Warranty:: 1 YEAR

Power:: Electronic

Place of Origin:: Hubei, China

Brand Name:: UHV

Model Number:: UHV-660

Product name:: Trace Moisture Tester

Maximum power consumption:: 30W

Power supply:: AC220V±20%

Dimension:: 320*240*150(mm)

Electrolysis water volume:: 10ug~1000ug

Measuring range:: 0ug~200mg

Resolution:: 0.1ug

Temperature range:: 10~35℃

Humidity:: <85%

Weight:: 5kg

Product Paramenters

Technical parameters
Titration method	Coulometric titration(coulometric analysis)
Measurement range	1ug～100mg(Typical value 10ug~100ug)
Electrolytic current	0-400mA
Sensitivity threshold	0.1ug
Accuracy	5ugH2O~1mgH2O ± 2ug, 0.3% above 1mgH2O (excluding injection error and environmental humidity error)
Sample type	Solid, liquid, and gaseous states
Display method	64K color high-definition touch display
Data Storage	1000 test records
Status indicator	Dynamic curves, text display
Mixing speed regulation	Sliding touch panel speed control
Printer	Micro thermal printer, paper width 56mm
Power supply	AC220V±10V、50Hz±2.5Hz
Power	50VA
Operating ambient temperature	5～35℃
Operating environment humidity	≤85%
Overall dimensions	330mm x 260mm x 220mm (length x width x height)

Product Characteristics

1、The instrument adopts a high-performance ARM processor with large data storage capacity, fast and stable operation, and excellent anti-interference performance, which has outstanding advantages of fast detection speed and high accuracy.

2、The instrument has a fault self-diagnosis function, which displays and prints the measurement results after the test is completed. The instrument has the function of indicating the dynamic curve o f measuring potential, making the testing status more intuitive.

3、The instrument has a large storage capacity of up to 1000 data records.

4、 The instrument has a delay measurement function, which is very effective when testing samples with low moisture content.

5、The instrument adopts sliding touch stirring speed regulation.

6、The formula for calculating moisture content includes multiple algorithms for calculating key parameters such as volume and weight.

7、During the testing process, if it is necessary to modify the relevant parameters of the calculation formula, it can be modified in a timely manner without affecting the moisture measurement results. The moisture content is calculated according to the newly modified parameters, which is convenient for users to use.
