Quick Details
-
Product name:
-

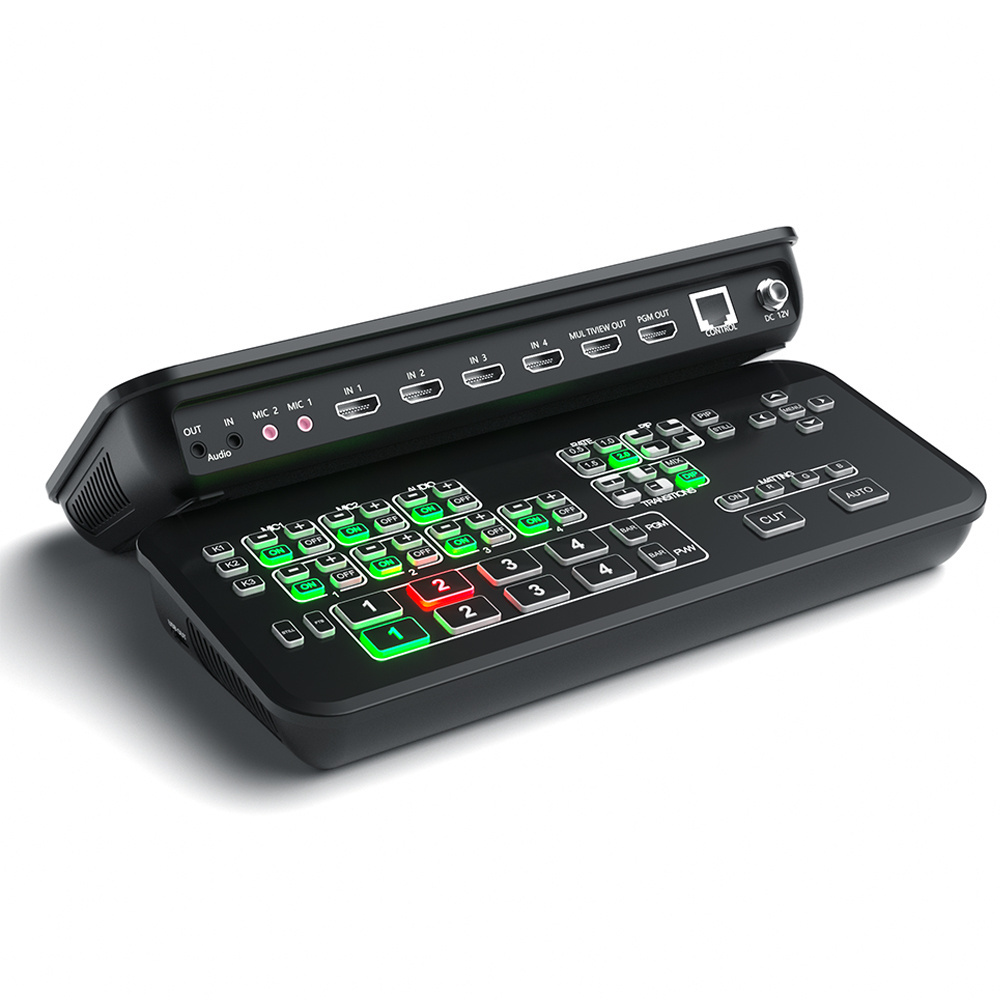

HDMI live Streaming Switch
-
Input:
-
4*HDMI + Mic + Audio
-
Output:
-
1* HDMI PVW + 1*HDMI PGM
-
Resolution:
-
1080p60/1080p50/1080p30/1080p25/1080p24
-
Software:
-
OBS, vMix, VLC, PotPlaYer and other market software
-
Function:
-
RGB(Red, Green or Blue) background cutout
-
Application:
-
video conferences, live broadcasts, weddings, radio and television,etc
-
Supporting:
-
PIP for PVW and PGM
-
Weight:
-
1.15kg
-
Color Box Size:
-
28.6 x 15 x 10cm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
A1
-
Product name:
-
HDMI live Streaming Switch
-
Input:
-
4*HDMI + Mic + Audio
-
Output:
-
1* HDMI PVW + 1*HDMI PGM
-
Resolution:
-
1080p60/1080p50/1080p30/1080p25/1080p24
-
Software:
-
OBS, vMix, VLC, PotPlaYer and other market software
-
Function:
-
RGB(Red, Green or Blue) background cutout
-
Application:
-
video conferences, live broadcasts, weddings, radio and television,etc
-
Supporting:
-
PIP for PVW and PGM
-
Weight:
-
1.15kg
-
Color Box Size:
-
28.6 x 15 x 10cm
HDMI preview output CCTV channel switching station audio and video switcher mixer hdmi live stream video switcher
| Product name | HDMI Live Streaming Switcher |
| Intput | 4*HDMI + Mic + Audio |
| Output | 1* HDMI PVW + 1*HDMI PGM |
| Video encoding | MPEG-4 AVC/H.264 |
| Resolution | 1080p60/1080p50/1080p30/1080p25/1080p24 |
| Support system | Windows / MacOS |
| Support | PIP PVW and PGM ; RGB background cutout; |
| Weight | 1.15 |
| Color Box Size | 28.6 x 15 x 10cm |
| Application | video conferences, live broadcasts, weddings, radio and television, program production, outdoor sports, teaching courses, and others video switching scene. |
| Wideo capture software | OBS, vMix, VLC, PotPlaYer and other market software |
Feature:
- HDMI input signal is automatically adapted for above 720P resolution, 1080P output signal resolution can be selected according to requirements(1080p60/1080p50/1080p30/1080p25/1080p24), which is quite flexible.
- Support PIP for PVW and PGM , support adjust the window size and position, and support screen freeze.
- Support RGB(Red, Green or Blue) background cutout ; and can adjust the tint according to the shade of the studio filter's background color in software.
- Support hard-cutting with CUT key and AUTO special effect switch ,and the transition speed can be adjusted with RATE keys(X1, X2, X3, X4).
- Widely used for video conferences, live broadcasts, weddings, radio and television, program production, outdoor sports, teaching courses, and others video switching scene.
