With 390 office employees and 60 R&D personnel, WanWayTech has won praise from more than 1,000 enterprise buyers and millions of users worldwide through its stable quality, perfect service system and comprehensive advantages. Employed with experienced technical and management personnel, it always adheres to the brand concept, provides the ultimate user experience, and builds the brand with passion. Till now, WanWayTech has obtained ISO9001, ISO14001, CMMI3, ITSS, CE, FCC, RoHs, Reach and other international certificates. It has a total of 24 invention patents and 32 utility model patents, more than 48 software copyrights, and over 30 industry honors.
- Product Details
- {{item.text}}
Quick Details
-
OS:
-
android,ios
-
Screen Type:
-
none
-
Warranty:
-
12 Months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
wanway
-
Model Number:
-
G19H
-
Product name:
-
Track Gps Device
-
Application:
-
Web Platform
-
Network:
-
2g network
-
Features:
-
Waterproof IP67
-
Size:
-
72mm(L)*30mm(W)*12mm(H)
-
Device weight:
-
32g
-
Quad Band:
-
850/1900/900/1800MHz
-
GPS Accuracy:
-
5-10m
-
Voltage Input:
-
9-90v
-
GSM/GPS Antenna:
-
Built-in Design
Quick Details
-
Car Fitment:
-
BYD
-
Resolution:
-
none
-
Function:
-
Waterproof IP67
-
OS:
-
android,ios
-
Screen Type:
-
none
-
Warranty:
-
12 Months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
wanway
-
Model Number:
-
G19H
-
Product name:
-
Track Gps Device
-
Application:
-
Web Platform
-
Network:
-
2g network
-
Features:
-
Waterproof IP67
-
Size:
-
72mm(L)*30mm(W)*12mm(H)
-
Device weight:
-
32g
-
Quad Band:
-
850/1900/900/1800MHz
-
GPS Accuracy:
-
5-10m
-
Voltage Input:
-
9-90v
-
GSM/GPS Antenna:
-
Built-in Design

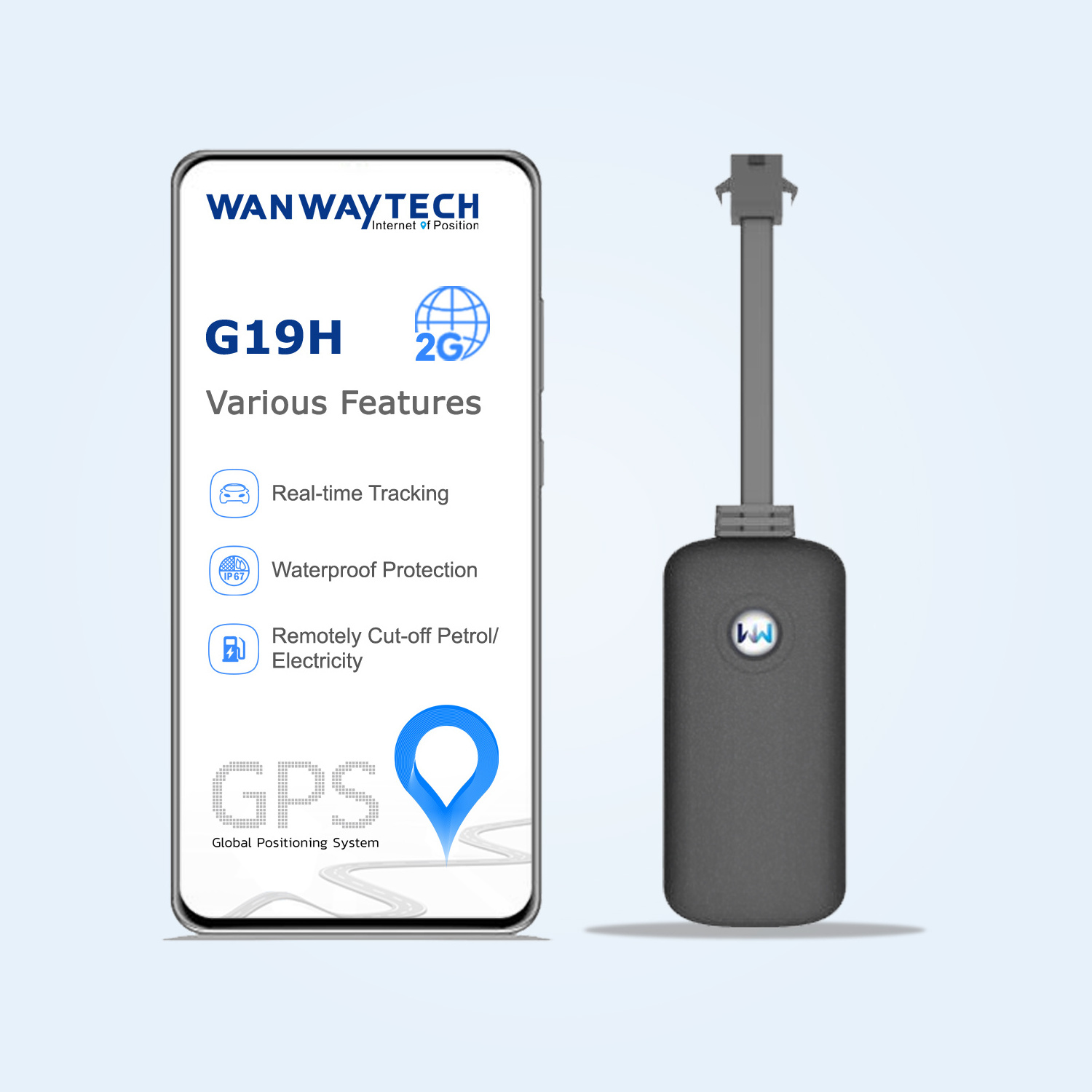

G19H is a waterproof real-time positioning device that can realize functions such as electronic fences, remote tracking, and one-key car lock. The terminal can meet the needs of scenarios related to car monitoring, online car-hailing, car rental, and cargo logistics transportation.
The G19H GPS accessed to platform can realize functions such as low battery alarm, power failure alarm, electronic fence, location track tracking, street view map, etc. The platform functions can be developed in depth according to customer needs.
|
Product Functions
|
|
|
|
Waterproof IP67
|
simple GPS for vehicles tracking, powerfully work in rainy day.
|
|
|
Real-time Tracking
|
update position every 10 seconds with continuous tracking.
|
|
|
Fast Positioning
|
provide a timely positioning service after installing it.
|
|
|
Trace Playback
|
check the history trace of your vehicle to help you find useful information.
|
|
|
Mileage Report
|
it can help you to know how far you drive.
|
|
|
Over-speed Alarm
|
when your speed is over what you set, it will send alarm to remind you keep safe.
|
|
|
Geo-fence Alarm
|
users can set a range of geo-fence on map with circle, polygon or customize shape, and it will alarm when the device gets in or
out of presetting range via APP or SMS. |
|
|
Remotely Cut-off Petrol/Electricity
|
Remotely control vehicle engine via platform, app or sms to avoid someone driving the vehicle illegally.
|
|
|
Platform/APP/SMS Checking
|
various methods like platform, app, sms to check asset status.
|
|
|
Product Features
|
|
|
|
Dedicate Design
|
give you good hand-feeling.
|
|
|
2G Wired
|
support 2g gsm network
|
|
|
4-wire
|
Connect to relay, engine shut-off
|
|
|
Product Parameters
|
|
|
|
Device Name
|
Vehicle GPS Tracker
|
|
|
Model
|
G19H
|
|
|
Features
|
Waterproof IP67
|
|
|
Device Dimension
|
72mm(L)*30mm(W)*12mm(H)
|
|
|
Box dimension
|
130mm(L)*90mm(W)*40mm(H)
|
|
|
Device weight
|
31g
|
|
|
Package Weight
|
162g
|
|
|
Quad Band
|
850/1900/900/1800MHz
|
|
|
GPS Accuracy
|
<=5m
|
|
|
Voltage Input
|
9-90v
|
|
|
Back-up Battery
|
55mAh
|
|
|
|
Hot Start<2S(Open Sky)
|
|
|
Positioning Time
|
Warm Start<15S
|
|
|
|
Cold Start<38S(Open Sky)
|
|
|
GPS Sensitivity
|
-144dBm
|
|
|
Tracking Sensitivity
|
-160dBm
|
|
|
Operating Temperature
|
-20℃—70℃
|
|
|
GPS chip
|
MTK
|
|
|
GSM/GPS Antenna
|
Built-in Design
|
|
WanWayTech has been dedicating itself to offering both corporate and individual IOT digital services for Fleet Management, Car Rental, Cargo & Logistics, Asset Management, UBI Insurance industries and Personal Care etc.
FAQ
Q1. Do this gps tracker need a sim card?
A: Yes, this device needs a sim card which support 2g gsm network.
Q2: How many data traffic will it use monthly?
A: Usually 50mb data traffic will be need. For saving data traffic, you can set positioning time interval for device.
Q3: Why gps tracker show offline on the platform?
A: When you meet this situation, please check your sim card if it works normal. Try to send sms command "status#", show the reply message to our after-sales team, they will help.
Q4: How long will i get the package after payment?
A: This depends on logistics system. In normal condition, the package will arrive at your address in 30 days.
Our Service
1. We support one year platform free, during the period, you can use our platform without any restriction. If expired, please contact after-sales person for renew.
2. The device has one year free replacement. Faulty device must be reported and returned within the warranty period, keep original package if possible. Device expired warranty is not acceptable.
3. WanWay Tech online technical support team will service you. In the box, you can find our after-sales service card, if any question, please don't hesitate to contact us. Your satisfaction is our inexhaustible motive force.
