Quick Details
-
Product name:
-

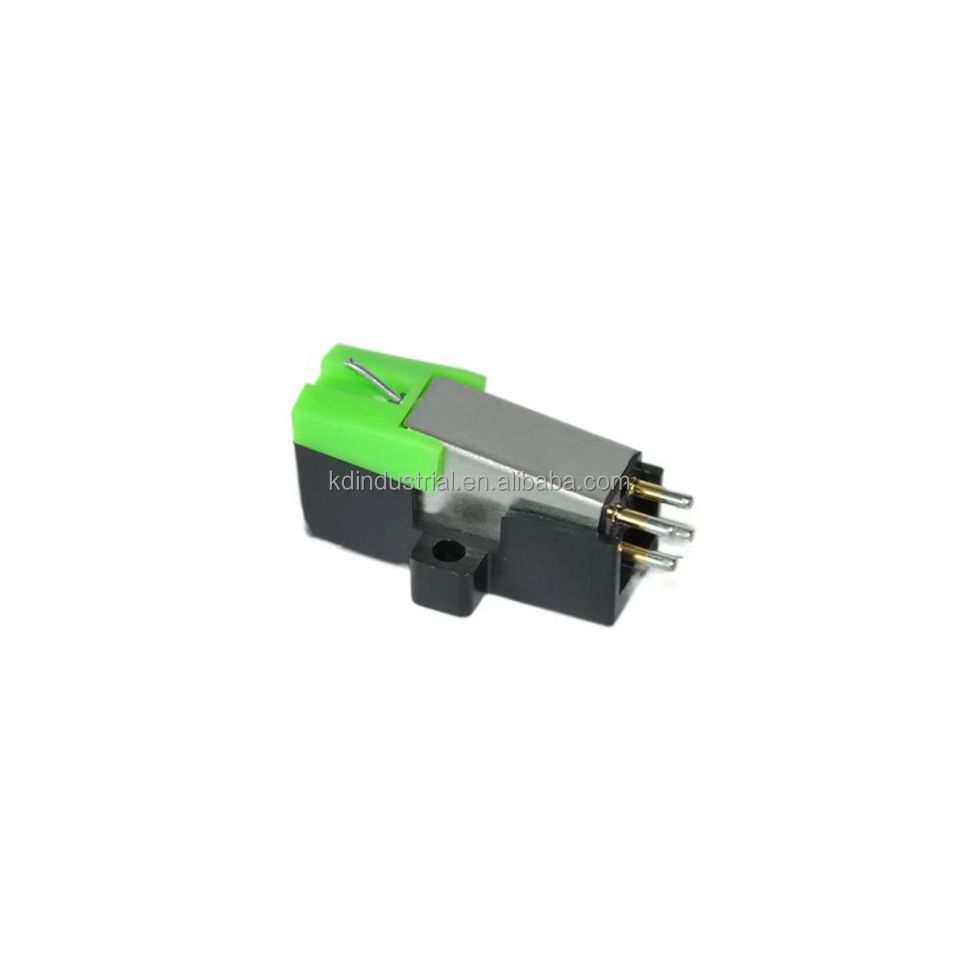

Moving Magnet Turntable Cartridge
-
Application:
-
LP Record Player Phonograph
-
Color::
-
Green, Black
-
Service::
-
Customizing Products
-
Material:
-
aluminum, plastic
-
Weight:
-
4.3g ±0.2g
-
Output Voltage:
-
4 mV±3 dB
-
Outeput Balance:
-
2.5dB or less at1 kHz
Quick Details
-
Brand Name:
-
K&D
-
Model Number:
-
KDCC-003
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Moving Magnet Turntable Cartridge
-
Application:
-
LP Record Player Phonograph
-
Color::
-
Green, Black
-
Service::
-
Customizing Products
-
Material:
-
aluminum, plastic
-
Weight:
-
4.3g ±0.2g
-
Output Voltage:
-
4 mV±3 dB
-
Outeput Balance:
-
2.5dB or less at1 kHz
Product Description
Moving Magnet Turntable Cartridge with Phono Cartridge for LP Record Player Phonograph
Weight 4.3g ±0.2g
Tracking Force3.5±0.5g
Recommended Load 47kQ
Stray Capacitance 100pF
tylus Radius of Curvature Conical 0.6mil
DC Resistance:280Ω ±20%
Coil Impedance :2.9 kΩ ±20% at l kHz
Output Voltage: 4 mV±3 dB
At l kHz , 5 cm per second
Outeput Balance: 2.5dB or less at1 kHz
Phase,polarity: In-phase and have a positive polarity.
Frequency Response:Measurement point 20Hz-20kHz/1kHz ±3 dB
Channel Separation:Measurement point 1kHz over 16dB
Tracking: Trace 300Hz,700 when a tracking force is 3.5g or less.
Clearance: Over 0.8mm when a tracking force is 3.5g.
Force of Pulling a Stylus Assembly:200-1000g
Tracking Force3.5±0.5g
Recommended Load 47kQ
Stray Capacitance 100pF
tylus Radius of Curvature Conical 0.6mil
DC Resistance:280Ω ±20%
Coil Impedance :2.9 kΩ ±20% at l kHz
Output Voltage: 4 mV±3 dB
At l kHz , 5 cm per second
Outeput Balance: 2.5dB or less at1 kHz
Phase,polarity: In-phase and have a positive polarity.
Frequency Response:Measurement point 20Hz-20kHz/1kHz ±3 dB
Channel Separation:Measurement point 1kHz over 16dB
Tracking: Trace 300Hz,700 when a tracking force is 3.5g or less.
Clearance: Over 0.8mm when a tracking force is 3.5g.
Force of Pulling a Stylus Assembly:200-1000g
Main Features
1) Standard stereo moving magnetic cartridge;
2) Sale in the original factory package;
3)Compatible with all turntables that accept standard headshell-mounted cartridges;
4) Easy to install;
5) Excellent sound quality and strong tracking ability;
6) It recaptures even the context of sounds, clearly displaying players and instruments' positions in the sound-stage. An accurate and increased sense of spaciousness and localization - placing you directly in the recording session;
7) In full surround sound.
2) Sale in the original factory package;
3)Compatible with all turntables that accept standard headshell-mounted cartridges;
4) Easy to install;
5) Excellent sound quality and strong tracking ability;
6) It recaptures even the context of sounds, clearly displaying players and instruments' positions in the sound-stage. An accurate and increased sense of spaciousness and localization - placing you directly in the recording session;
7) In full surround sound.
Vinyl record player stylus replacement
