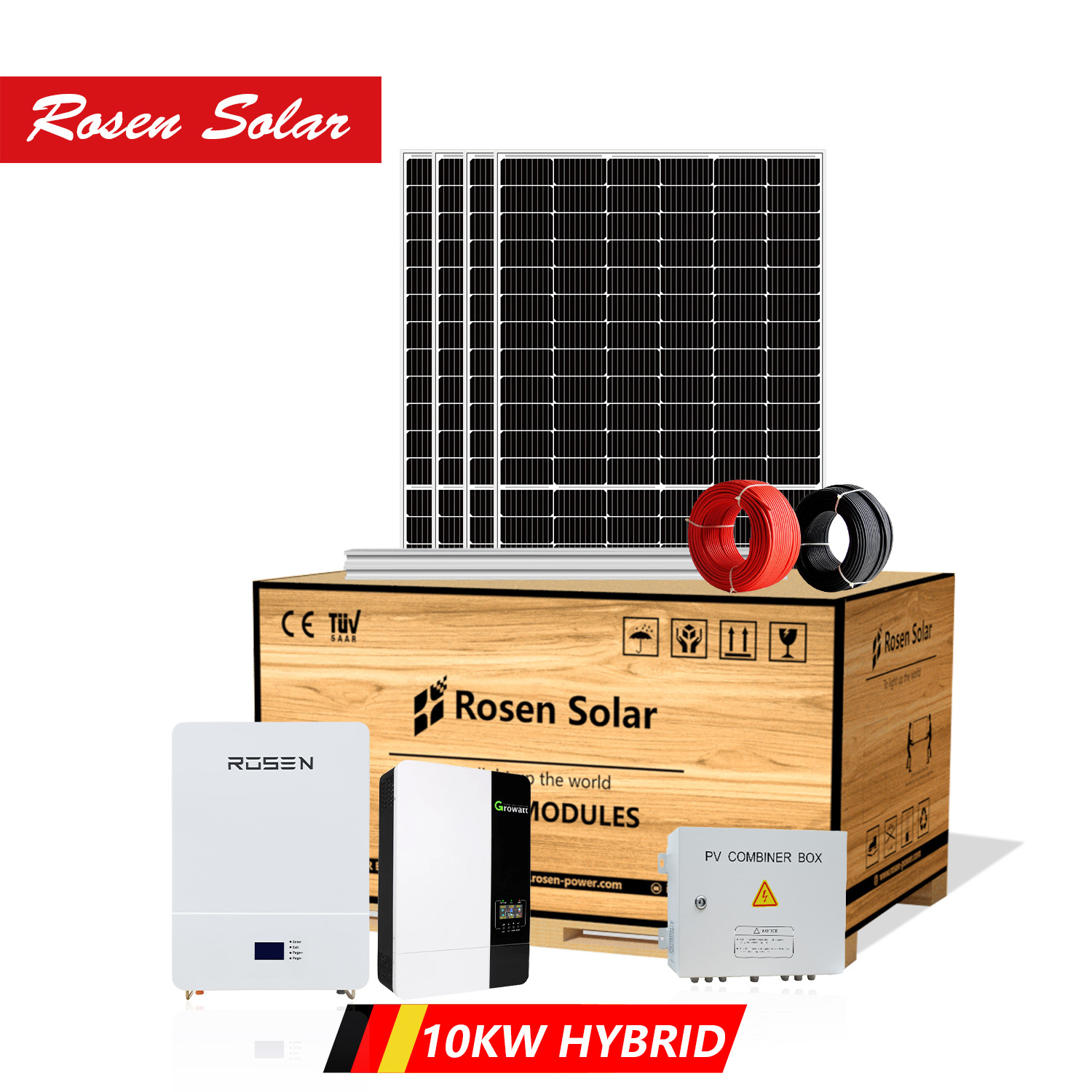

Complete Set Solar Panel Power System 10kW Solar Energy Residential Hybrid Off Grid Solar System

Complete Set Solar Panel Power System 10kW Solar Energy Residential Hybrid Off Grid Solar System

FOB Reference Price: Get Latest Price

≥5 Pieces

US $0.7

≥10 Pieces

US $0.65

≥30 Pieces

US $0.6

Free Inquiry

Customized Request

Explore More Products

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

Off-Grid High Power Photovoltaic Panel Charging Controller Solar Regulateur Mppt

$ 59.11

High Performance Waterproof Home Balcony Complete System Solar Panel

$ 2.48 - $ 63.72

900W Micro Balcony Power Plant 300w 600w 800w Deutschland Balcony Solar Panel Power System

$ 2.48 - $ 63.72

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

Off Grid Pwm Solar Charge Controller Max Pv 100v 12v 24v 48v Auto Lcd Display Battery Intelligent Regulator For Solar Panel

$ 4.92

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

Place of Origin:: China

Brand Name:: Rosen or OEM

Model Number:: RS10KW-HY

Output Voltage (V):: 110/120/230/240Vac; 208/220/240/380/400Vac

Output Frequency:: 50/60Hz

Work Time (h):: 24hours

Type:: Hybrid Off/On Grid System

Battery:: GEL/Lithium LifePO4 Powerwall

PV Cable:: 4mm2/6mm2/10mm2 etc

Mounting Structure:: Aluminium Alloy/Hot Dip Galvanized Steel

Package:: Standard Wooden Box/Carton

Monitor:: WIFI/RS232/RS485/GPRS

Accessories:: MC-4 spanner, Crimping pliers etc

Inverter:: Single/Three Phase

Combiner Box:: IP 68 Rated

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon, Mono Half Cell

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

Place of Origin:: China

Brand Name:: Rosen or OEM

Model Number:: RS10KW-HY

Output Voltage (V):: 110/120/230/240Vac; 208/220/240/380/400Vac

Output Frequency:: 50/60Hz

Work Time (h):: 24hours

Type:: Hybrid Off/On Grid System

Battery:: GEL/Lithium LifePO4 Powerwall

PV Cable:: 4mm2/6mm2/10mm2 etc

Mounting Structure:: Aluminium Alloy/Hot Dip Galvanized Steel

Package:: Standard Wooden Box/Carton

Monitor:: WIFI/RS232/RS485/GPRS

Accessories:: MC-4 spanner, Crimping pliers etc

Inverter:: Single/Three Phase

Combiner Box:: IP 68 Rated

Product Description

System Configuration

Item	5KW	10KW	15KW
Half Cell Solar Panel	14 pieces	28 pieces	42 pieces
PV Combiner Box	2inputs 1output	2inputs 1output	2inputs 1output
Hybrid Inverter On and Off	5kw	10kw	15kw
WIFI Module Monitor	1 set	2 sets	3 sets
Solar Battery	GEL/Lithium Powerwall	GEL/Lithium Powerwall	GEL/Lithium Powerwall
PV Cable	6mm2	6mm2	6mm2
Mounting Bracket	Tile Roof/Ground	Tile Roof/Ground	Tile Roof/Ground
MC4 Connector	14pcs	28pcs	42pcs
Installation Tool Box	1set	1set	1set
Installation Manual	Yes	Yes	Yes
For more technical specification and price list, please contact: +86 15955104975

Technical Specification

Solar Panels

• Optional Mono/Poly Blue/Black Panels
• High Efficiency with Half Cell PERC panels available
• 5BB/6BB/9BB PV cell Mono 158.75mm/166mm/182mm
• Anti-PID

Hybrid Off Grid Inverter

• Single Phase AC Voltage

• Intelligent cloud platform monitoring, realizing one- key APP real-time monitoring • Support RS485, GPRS, WIFI and other communication methods

• Combined design for three phase AC voltage

Solar Battery

• 2v/12V/24V/48V Battery Optional

• Lead Acid Deep Cycle Battery

• Lithium ion LifePO4 Module or Powerwall Optional

• Fast installation and convenient design

Mouting Brackets

• Tile or color steel roof tile/ground installation
• Customized design with CAD auto drawing
• Complete set of Rail, Splice, Mid & End clamps, L feet, Hanger Bolt, earth clamp etc

DC Cable & MC4 Connector

• Cross Section: 4mm2, 6mm2, 10mm2 16mm2, 25mm2 Optional Rated

• Voltage:1000VDC
• Colors: Black For STD, Red Optional.
• Lifetime:more than 25 Years

Installation Tool Box

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

F&Q:
1, How does Warranty work?
-Warranty is 25 to 30years, and solar panels efficiency more than 22%.
2, Do you have Installation manuals?
-Yes, installation manual with technician's online guidance step by step.
3, Which main types of solar panels you are making now?
-We are making Mono N type TOPCON solar panels and HJT panels etc, power range 400W to 700W. Polycrystalline solar panels are
available too. As you know TOPCON is the trend now, and tier 1 manufacturers have agreed on pv module dimension as 2382mm*1134mm,
landscape frame hole distance 400/790/1400mm
4, For further information, please leave a message or call us directly ↓↓↓

Packing & Delivery

Rosen Project

Rosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types. Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock. Our technicians will help with installation guidance, project design,commissioning, and aftersale service.

For more details
