Quick Details
-
Model Number:
-
LP-22S
-
Place of Origin:
-
China
-
Application:
-
Pro Audio
-
Certification:
-
none
Quick Details
-
Type:
-
Home Amplifier
-
Channels:
-
2 (2.0)
-
Brand Name:
-
Queenway
-
Model Number:
-
LP-22S
-
Place of Origin:
-
China
-
Application:
-
Pro Audio
-
Certification:
-
none

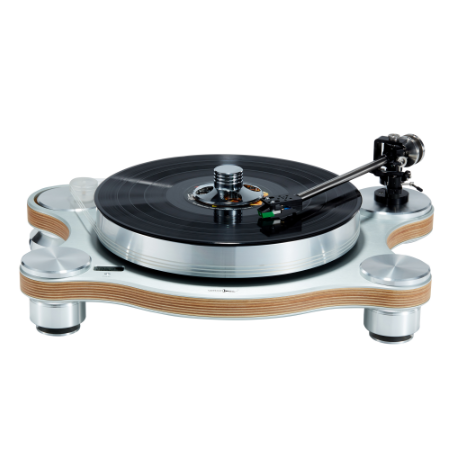

LP-22S Turntable parameters:
Dimension: L600 x W450 x H170mm
Net weight of phonograph: 16.2kg
Drive form: External single AC motor drive, belt drive mechanism
Turntable material: Aluminum alloy CNC precision machining
Thickness of rotary table: 40mm
Turntable weight: 4.6kg
Bearing mechanism: Adjustable magnetic suspension support bearing, built-in upper and lower oil pool, oil-bearing copper inner sleeve, zirconia ceramic shaft
Phonograph base: CNC precision processing aluminum plate + multilayer sandwich structure
Phonograph color: Aluminum alloy
Phonograph feet: Air shock absorber special rubber mechanism adjustable aluminum alloy feet
Phonograph motor: Imported high precision AC synchronous motor
Singing arm base: 9.0-3 special arm base
Speed monitoring: GRS 5-bit digital high precision real time speed detection system
Speed regulation mechanism: Speed regulator for AC motor by adjusting frequency
Turntable speed: 33 1 / 3, 45 speed, electronic touch switch, precise and fine-tuning speed
Package dimension: L640 x W590 x H310mm
Gross weight: 22kg
Dimension: L600 x W450 x H170mm
Net weight of phonograph: 16.2kg
Drive form: External single AC motor drive, belt drive mechanism
Turntable material: Aluminum alloy CNC precision machining
Thickness of rotary table: 40mm
Turntable weight: 4.6kg
Bearing mechanism: Adjustable magnetic suspension support bearing, built-in upper and lower oil pool, oil-bearing copper inner sleeve, zirconia ceramic shaft
Phonograph base: CNC precision processing aluminum plate + multilayer sandwich structure
Phonograph color: Aluminum alloy
Phonograph feet: Air shock absorber special rubber mechanism adjustable aluminum alloy feet
Phonograph motor: Imported high precision AC synchronous motor
Singing arm base: 9.0-3 special arm base
Speed monitoring: GRS 5-bit digital high precision real time speed detection system
Speed regulation mechanism: Speed regulator for AC motor by adjusting frequency
Turntable speed: 33 1 / 3, 45 speed, electronic touch switch, precise and fine-tuning speed
Package dimension: L640 x W590 x H310mm
Gross weight: 22kg
Note when placing an order: From 2022 onwards, Amari phono cartridges will come with Audio-Technica MM white cartridges as standard.
Cartridge Parameters：
Model : Audio-technica AT95E
Frequency response : MM cartridge
Output voltage : 3.5mV (1kHz , 5cm/sec.)
Channel distortion : 20dB (1kHz )
Output balance : 2.0dB (1kHz )
Stylus Pressure : 1.5-2.5g ( recommend 2.0g )
Coil impedance : 2800 ohms (1kHz )
Coil DC resistance : 410 ohms
Load resistance : 47000 ohms ( Recommended )
Load capacitor : 100-200 pF
Coil inductance : 400mH (1kHz )
Static obedience : 20*10-6 cm /dyne
Dynastic obedience : 6.5*10-10 cm /dyne
Stylus type : Joint ellipse ( 0.4*0.7 mil )
Needle bar : Aluminum alloy rod
Vertical tracking foot : 20
Dimension : 17.2*17*30.5 ( H*W*D )
Cartridge Weight : 5.7g
Model : Audio-technica AT95E
Frequency response : MM cartridge
Output voltage : 3.5mV (1kHz , 5cm/sec.)
Channel distortion : 20dB (1kHz )
Output balance : 2.0dB (1kHz )
Stylus Pressure : 1.5-2.5g ( recommend 2.0g )
Coil impedance : 2800 ohms (1kHz )
Coil DC resistance : 410 ohms
Load resistance : 47000 ohms ( Recommended )
Load capacitor : 100-200 pF
Coil inductance : 400mH (1kHz )
Static obedience : 20*10-6 cm /dyne
Dynastic obedience : 6.5*10-10 cm /dyne
Stylus type : Joint ellipse ( 0.4*0.7 mil )
Needle bar : Aluminum alloy rod
Vertical tracking foot : 20
Dimension : 17.2*17*30.5 ( H*W*D )
Cartridge Weight : 5.7g
