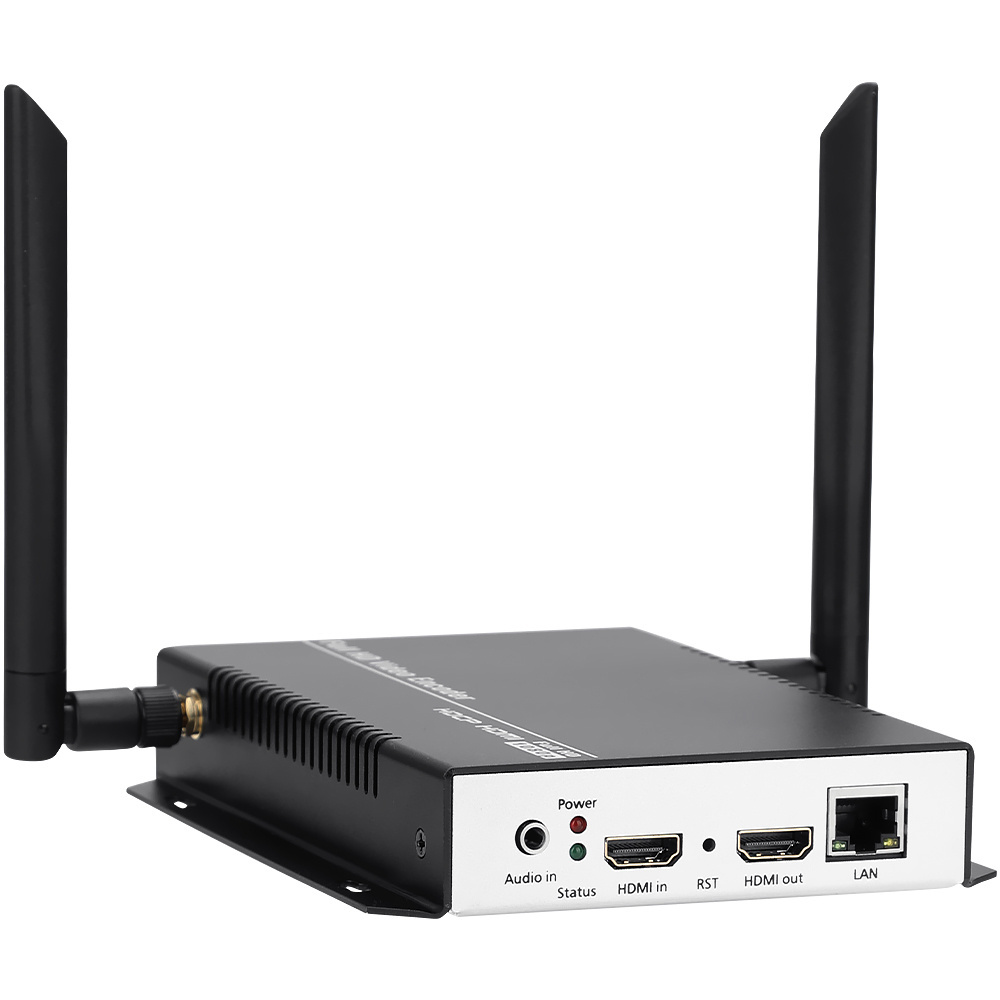

URay HEVC H.265 HDMI VideoTo SRT RTSP RTMP HTTP Streaming Encoder Wireless H265 H.264 HD Video To IP Stream Encoder IPTV WiFi

• Support HEVC /H.265, H.264 /AVC, MJPEG video encoding

  Support AAC, AAC+, AAC++,MP3, MP2, AC3, Opus, G.711 audio encoding

• Support to live streaming on max 4 live broadcast platforms simultaneously

  Support 4 streams output simultaneously, support different protocol transmission for each stream

• Support output video frame rate setting, max 60fps input and output

  Support output video resolution setting, max 1920x1080P input and output

• Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

  Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

• Support multiple on screen display settings, such as logo /text /scroll text /time etc

  Support customize the no signal image when there is no input signal

• Support both HDMI audio and external audio input simultaneously

  Support to switch HDMI audio or external audio as output audio at will

• Support single-channel HDMI signal local output for reuse

  The looped out hdmi signal is the same as the input hdmi signal without any loss

• Support web page or APP control dashboard

  Support wide area network remote management(via port forwarding)

• Provide SDK /API /CGI for secondary development

  Support logo printing /language /firmware /function etc customization

• Set up for the first time, plug and play when use it later

  Not only RTMP(S), but also streaming HLS to YouTube or other server(New feature)

Model No.	UHE265-1LW
Video
Input Video	1XHDMI, support HDCP
Input Resolution	Max 1920x1080 resolution, max 60fps frame rate
Video Encoding	HEVC /H.265, MPEG-4 /H.264 AVC, MJPEG
Encoding Levels	H,265 main profile; H.264 high /main /baseline profile
Video Bitrate	Adjustable From 32kbit /s to 32mbit /s
Bitrate Control	CBR, VBR, Strong CBR
Output Resolution	It is adjustable, max 1920x1080P /60fps
Video Pre-processing	De-interlacing, noise reducing, sharpening etc
Audio
Input Audio	HDMI embedded audio or external stereo audio(3.5mm)
Output Audio	Support to switch HDMI audio or external audio at will
Sampling Rate	44.1KHz, 48KHz, Same as the input
Bitrate Control	Adjustable from 48000~320000
Audio Encoding	AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711
Network
Interface	Ethernet port(1000 BASE-T) or WIFI(2.4G /5G)
Streaming Protocol	HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc
Control Panel	Webpage UI(language customizable) Or APP
Firmware Update	Enable by uploading files to dashboard and upgrade
General
Dimension (W* L* H)	165 x 130 x 29 /mm
Net Weight	310g
Temperature	0 to 45(For working), -20 to 80(For storing)
Input Voltage	DC 12V /1A
Material	Aluminum Shell

• Status Display

• Stream Setting

• Video Setting

• Advanced Setting

• OSD Setting

• Network Setting

• WIFI Setting

• Upgrade

•  If you have problem of making payment, please contact us.

•  If you are worried about customhouse charge, please contact us.

•  If you need to print your logo on the device, please contact us.

•  If you require any files regarding to the product(user manual, new firmware etc), please contact us.

•  If you have questions before buying, please contact us.

•  If you meet the technical problems after buying, please contact us.

•  If you want to test this device before buying, please contact us.
