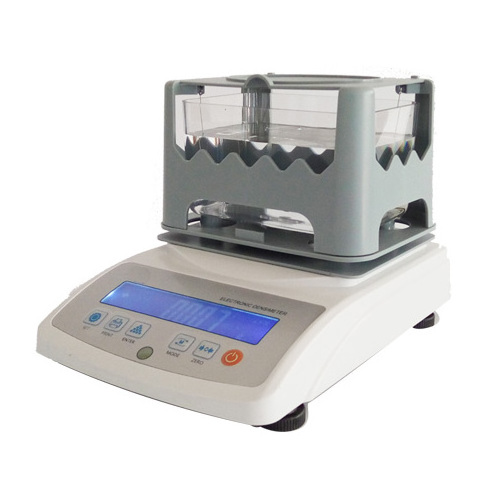

Fast solid density meter,high quality density test meter for solid

Item: Fast solid density meter
Model: MDJ-300A/MDJ-600A/MDJ-1200A/MDJ-300S/MDJ-600S

The solid density meter adopts German HBM high-precision load cell, which does not need to be bundled with the water measuring device; it can measure the density value instantaneously, and has various measuring methods such as saturation measurement method, surface covering waterproof treatment method and high viscous medium liquid method; High measurement accuracy and reliable data.

Application

Mainly suitable for rubber, plastics, wire and cable, electrical appliances, sports equipment, tires, glass products, hard alloys, new materials research laboratories. It also suitable for metal products, powder metallurgy, precision ceramics, refractory materials, magnetic materials, alloy materials, automobiles Parts, mechanical parts, cement plants, civil engineering, construction engineering, coal energy, minerals and rocks, jewelry precious metals industry, etc.

Standard

According to ASTM D792, ASTM D297, GB/T1033,GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781,ISO 1183,GB/T208,GB/T5163,GB/T 1933 standards .

Features

1. With density, volume direct reading measurement function, automatic display without calculation

2. For new material research and development, it can show the percentage of the main material content of the two substances mixture

3. It can automatically determine whether the sample is qualified or not, and alert

4. Fully automatic zero tracking, buzzer alarm, overload alarm function

5. Powder metallurgy, magnetic materials, ceramics, refractories, friction materials, precious metals and other similar porous products can be measured

6. Use water or other liquid as a medium.

7. With setting of actual water temperature , measuring medium density and waterproof processing medium density .

8. With air buoyancy compensation setting, density upper and lower limit setting function

9. Use one-piece large-capacity measuring accessories (length 15.3 × width 10.7 × height 8.0cm) sink to prevent corrosion, drop resistance, breakage.

9. Built-in battery, equipped with windshield, more suitable for field test

10. RS-232C communication interface for easy connection between PC and printer, optional XF-68 printer to print measurement data

11. Rubber sheets, plastic blocks, PVC particles, EVA foam, PE film, wood, glass, foam, cement, graphite, ceramic tiles, silicon carbide, gemstones, tungsten alloys, diamonds, tin, gold can be measuring.

Technical parameter
