Quick Details
-
Brand Name:
-
Fols
-
Standard or Nonstandard:
-
Standard
-
Color:
-
white, green, blue, orange, red
-
Dimension:
-
309*301*170mm
-
Valve body:
-
depen on butterfly valve, ball valve, gate valve
-
Output Torque:
-
50 Nm to 4000 Nm
-
Operating time:
-
100S
-
Rotation angle:
-
0-90°
-
Weight:
-
16 KG
-
Surrounding Temperature:
-
-30°C - +60°C
-
Certification:
-
CE
Quick Details
-
Port Size:
-
Standard
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FOSD-400
-
Brand Name:
-
Fols
-
Standard or Nonstandard:
-
Standard
-
Color:
-
white, green, blue, orange, red
-
Dimension:
-
309*301*170mm
-
Valve body:
-
depen on butterfly valve, ball valve, gate valve
-
Output Torque:
-
50 Nm to 4000 Nm
-
Operating time:
-
100S
-
Rotation angle:
-
0-90°
-
Weight:
-
16 KG
-
Surrounding Temperature:
-
-30°C - +60°C
-
Certification:
-
CE

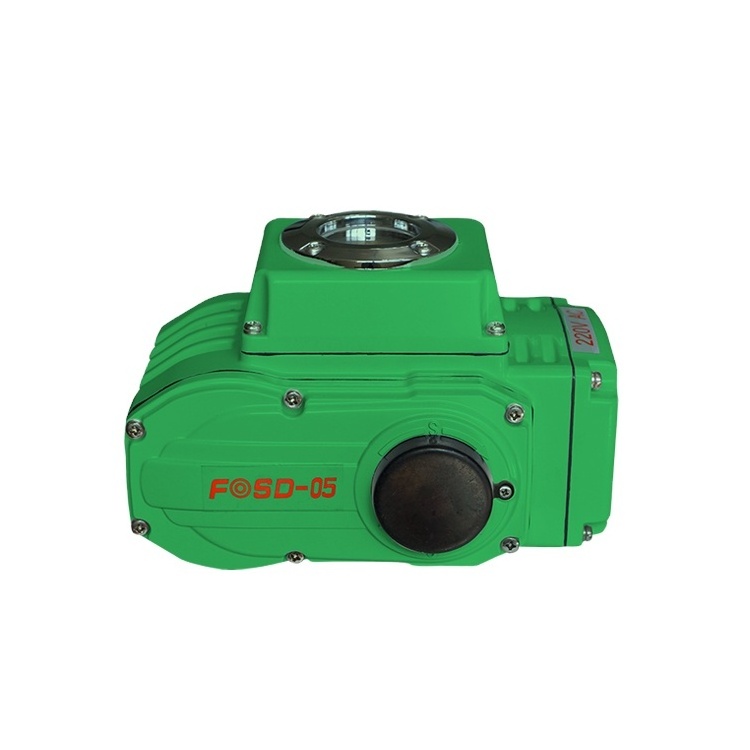

motorized shut off quarter-turn valve actuator
Product Description
Product Description
| Other models of regulating valve actuator peformance | ||||||||
|
Items
Parameter |
FOSD-05E | FOSD-10E | FOSD-16E | FOSD-30E | FOSD-60E | FOSD-125E | FOSD-250E | FOSD-400E |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 20S | 15S/30S | 30S | 100S | 100S | 100S | ||
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AV220V, AC24V, AC110V , AV220 , AC380, DC24V (choose options) | |||||||
| Input signal | 4-20mADC 1-5VDC 0-10 VDC | |||||||
| Output signal | 4-20mADC 1-5VDC 0-10 VDC | |||||||
| Intrinsic error | At most ±0.5% | |||||||
| Return difference | less than 0.3% | |||||||
|
Hysteresis plus
dead band |
0.1%-1.6 adjustabled | |||||||
| Damping characteristics | Zero | |||||||
| Repeatability error | 0% | |||||||
