Quick Details
-
Brand Name:
-
Darhor
-
Key Words:
-
solenoid valve 50 bar
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
orifice:
-
15, 20, 25
-
warranty:
-
one year guaranteed
-
sample lead time:
-
5~7 days
-
Order lead time:
-
7~10 days
-
Thread:
-
NPT, BSP, G
-
Seal Material:
-
NBR EPDM FKM
-
Name:
-
DHH high pressure solenoid
Quick Details
-
Port Size:
-
3/8"~3/4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHH
-
Brand Name:
-
Darhor
-
Key Words:
-
solenoid valve 50 bar
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
orifice:
-
15, 20, 25
-
warranty:
-
one year guaranteed
-
sample lead time:
-
5~7 days
-
Order lead time:
-
7~10 days
-
Thread:
-
NPT, BSP, G
-
Seal Material:
-
NBR EPDM FKM
-
Name:
-
DHH high pressure solenoid

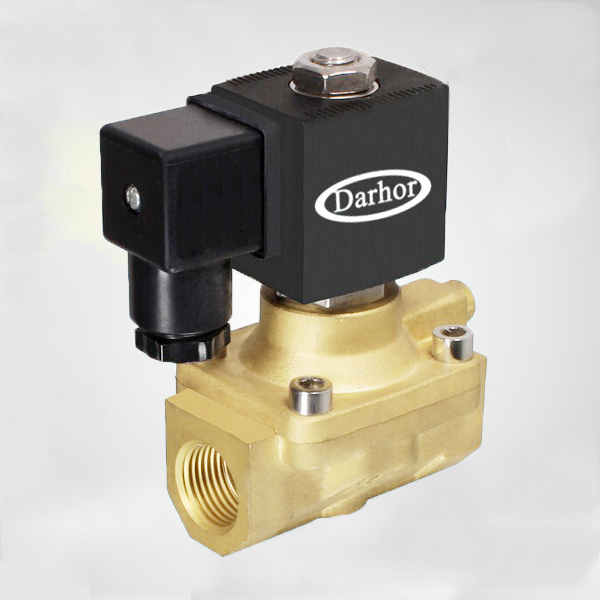

High pressure air compressor 3/4 inch brass solenoid valve 50 bar 40 bar
Characteristic:
2.With PARKER seals to improve the quality.
Material:
Body-Brass
Seal- PU
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304
|
Medium:
|
High pressure air, Gas, Water.
|
|
Temperature:
|
VITON Seal: -10℃ to 150℃
|
|
Pressure:
|
0.03-5.0 MPa
|
|
Port Size:
|
3/8'',1/2'', 3/4''
|
|
Port Thread:
|
BSP,NPT
|
|
Orifice(mm):
|
15
|
|
Voltage:
|
DC - 12V,24V,36V AC - 24V,120V,240V/60Hz;110V,220V/50Hz
|
|
Coils:
|
S91B,22VA(AC),17W(DC),IP65,100%ED NASS COIL 0543 on request
|
|
DHH Series Normally Closed, with Coil S91B,DIN
|
|
|
|
|
|
|
|
|
||||||||
|
Valve
Body |
Port
Size |
Orifice
|
Cv
|
Min
Pressure (MPa) |
Max Pressure(MPa)
|
|
Seals
Material |
Body
Material |
||||||||
|
|
|
|
|
|
AC(22VA)
|
DC(17W)
|
|
|
||||||||
|
DHH12XXX
|
3/8''
|
15
|
4.5
|
0.03
|
5.0
|
5.0
|
PU or
VITON |
Brass
|
||||||||
|
DHH15XXX
|
1/2''
|
15
|
4.5
|
0.03
|
5.0
|
5.0
|
|
|
||||||||
|
DHH20XXX
|
3/4''
|
15
|
4.5
|
0.03
|
5.0
|
5.0
|
|
|
||||||||
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
