Quick Details
-
Brand Name:
-
Huadian
-
Model Number:
-
HDL602-108a
-
Certificate:
-
ISO9001/CE/ RoHS/FCC
-
Product name:
-
high temperature level sensor
-
Measuring media:
-
Liquid,Water.Oil,Gas
-
Measuring range:
-
0.5... 500 metre
-
Output single:
-
4~20mA,1~5V,0~10V,RS485
-
Power supply:
-
3-5VDC,12-36VDC(standard)
-
Medium temperature:
-
-40~300℃
-
Zero tempe drift:
-
±0.03%F.S/℃
-
Overload:
-
200%F.S
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1year, 2years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Huadian
-
Model Number:
-
HDL602-108a
-
Certificate:
-
ISO9001/CE/ RoHS/FCC
-
Product name:
-
high temperature level sensor
-
Measuring media:
-
Liquid,Water.Oil,Gas
-
Measuring range:
-
0.5... 500 metre
-
Output single:
-
4~20mA,1~5V,0~10V,RS485
-
Power supply:
-
3-5VDC,12-36VDC(standard)
-
Medium temperature:
-
-40~300℃
-
Zero tempe drift:
-
±0.03%F.S/℃
-
Overload:
-
200%F.S

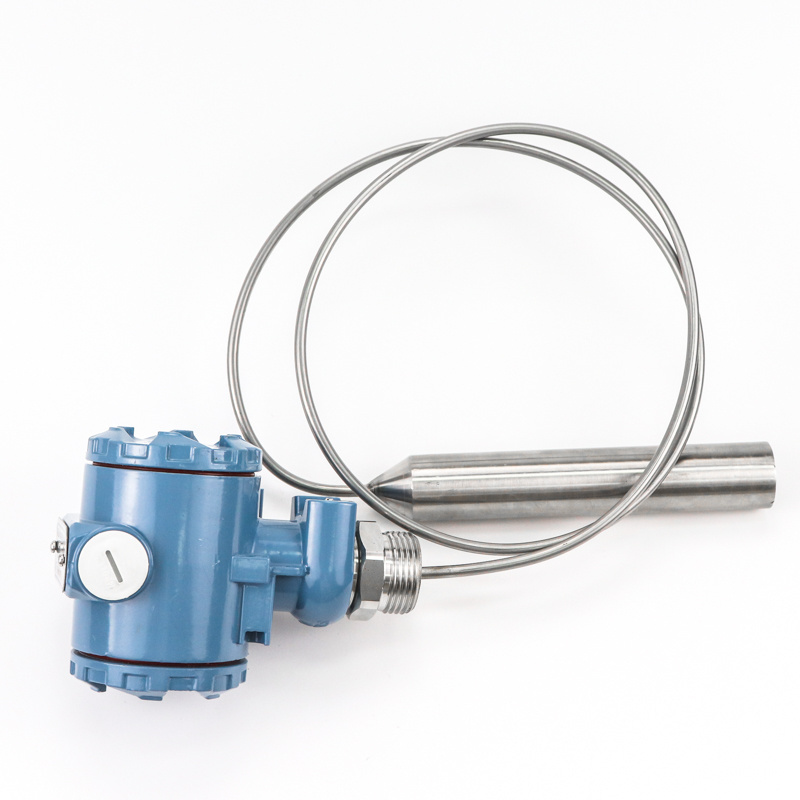

HDL602 high temperature liquid level transmitter consists of stainless steel gas collector, stainless steel capillary and junction box. The sensor and signal processing circuit are designed in the junction box, and the gas collecting cylinder is put into the measured liquid, which is responsible for collecting pressure signals. The gas in the gas collector transmits the collected liquid level pressure signal to the sensor through stainless steel capillary, thus avoiding the direct contact between the sensor and the measured medium, adapting to high temperature corrosion and other occasions, effectively solving the problem of high temperature corrosive liquid and sewage level measurement.
HDL602 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields. When measuring medium such as sewage and silt, filter structure can be added according to customer's requirements.
|
Mainly technical parameters
|
|
|
Model |
HDL602 |
|
Power supply |
3-5VDC,12-36VDC(standard) |
|
Output single |
4~20mA,1~5V,0~10V,RS485 |
|
M easuring range |
0.5... 500 metre |
|
C ompensation temperature |
-10~70℃ |
|
Medium temperature |
-40~300℃ |
|
E nvironment temperature |
-40~85℃ |
|
Measuring media |
Water,Oil,Weak acid and base |
|
Accuracy |
0.1%F.S,0.25%F.S(standard) |
|
Zero tempe drift |
±0.03%F.S/℃ |
|
Sensitivity temperature drift |
±0.03%F.S/℃ |
|
material |
316L core& cable |
|
Overload |
200%F.S |
|
Long-term stability |
≤0.2%F.S/year |
|
Inherent frequency |
5kHz~650kHz |
|
Protection grade |
IP68 |
1. We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
2. We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
3. OEM , Accept lower quantity trial order
4 . Fast delivery . 24 hours With Discount Courier, Air shipment
5 . Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.
All products are in stock (except for special customization).
6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.
7.Long term warranty . Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty !!
