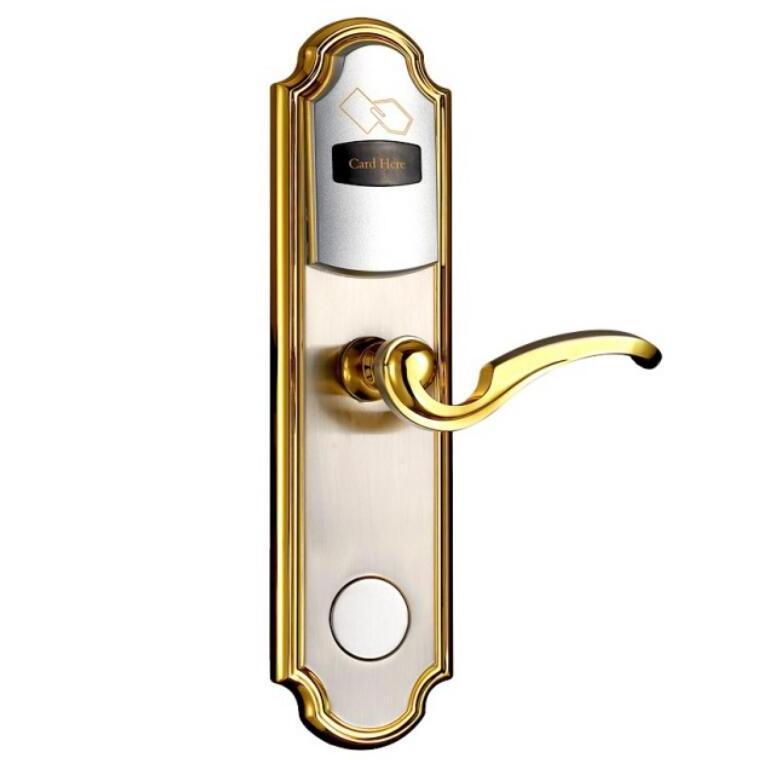

2022 The Zinc Alloy material French style RFID keyless hotel door lock

Product Description

2022 The Zinc Alloy material French style RFID keyless hotel door lock

Pure stainless steel RF Card Hotel Lock, very stable and reliable !!

Main Features:

Superior Benifits :

> Stainless Steel 304 material for panels, handles; self-error detective, very durable and attractive.

> Warranty is 2 years

> Can work with new developed wireless online iMaid System to enable hotels to have real time rooms' status,

To check if guest is in room or out and how much time he stays, To get fast response from guests if DND and CLEAN is requested.

> Can realize " One Card System ", Wall Reader is available to be integrated with hotel elevator, parking barrier system, common doors, swimming poor doors, restaurant doors, POS...etc.

> CE, FCC certified

> Adopt Japan MABUCHI micro-motors which ensure 500,000 running times without problems.

> RFID Mifare PHILIPS technology, 100,000 times write life for keycard, contactless reading keycard.

> ANSI mortise

> Free-rotating while locked

> Powered by 4 units of AA batteries, easy replacement.

> Openings 20,000 times for one new battery pack.

> Mifare card and RF card versions are available.

> Low Battery Voltage warning ( beep and red light ).

> Meeting passage mode is actived by passage card for meeting case.

> 3 public passage modes : Hotel Passage, Building Passage and Floor Passage.

> Do not disturb ( D.N.D )function is available : while thumb turn is on from inside, the lock will refuse keycard from outside by red light blinking.

>Panic release function : the deadbolt and latch are automatically retracted by inside handle pressing to easy egress when emergency happens.

> For 35-75mm thickness doors

Card Useage :

> Guest Card : Issued from reception to open its own room with expiration date.

> Master Card : Hold by management or GM or Manager to access all rooms of hotel( even locked by deadbolt ).

> Floor Card : Hold by clean staff to enter the rooms in one floor.

> Building Card : Hold by Manager to enter the rooms in one building.

> Lost Card : To suspend the lost guest cards.

> Emergency Card : Enter all rooms when emergency happens, and the rooms will stay open.

> Group Card : Can open all rooms you selected in one Group. random rooms.

Specifications :

1. Weight :	3 KGS
2. Size :	300 * 70 * 20 MM
3. Static Load :	< 11Ua
4. Working Load :	100Ma-150Ma
5. Humidity :	20%-90%
6. Working Tempreture :	' -50 ~ +60 degrees
7. Material :	Stainless Steel 304, Moisture-proof, Fire-proof
8. Surface Treatment :	Satin Chrome & PVD ture 24k Gold polished
9. Mortise :	ANSI Standard Mortise
10. Inside Dead Bolt :	Inside Handle Retracts Latches And Deadbolt
11. Card Type :	Temic Card & M1 S50 Card
12. Override Mechanical Key :	2 PCS For Each Lock, or Master Key For All Locks.
13. Lock Operation Records :	240 PCS Or More
14. Power :	DC6V or 4PCS AA Alkaline Batteries.18 Monthes' Duration
15.Low Battery Warning :	Lower Than 3.5 V
16. PMS Interface :	Free SDK, or Fidelio Registered Interface Software
17. Certificates :	CE, FCC, ISO9001

Standard Hotel Locking System :

Hotel Once Card System :

Manufacture Process & Quality Control :

Our Customers :

Worldwide Reference Projects :

Packaging & Shipping

Packing :

We use standard export cartons, each lock has its own box with inside foam box.

Payment & Shipping :

We accept T/T, Western Union, Money Gram, Paypal & L/C payments.

And We ship by sea, by airfreight and by courer ( includes DHL, FedEx, TNT, UPS, EMS, Aramex... etc )
