Quick Details
-
Brand Name:
-
Zhejiang Haijiang
-
Model Number:
-
MNS
Quick Details
-
Voltage:
-
380
-
Current:
-
1600
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhejiang Haijiang
-
Model Number:
-
MNS
Product Overview

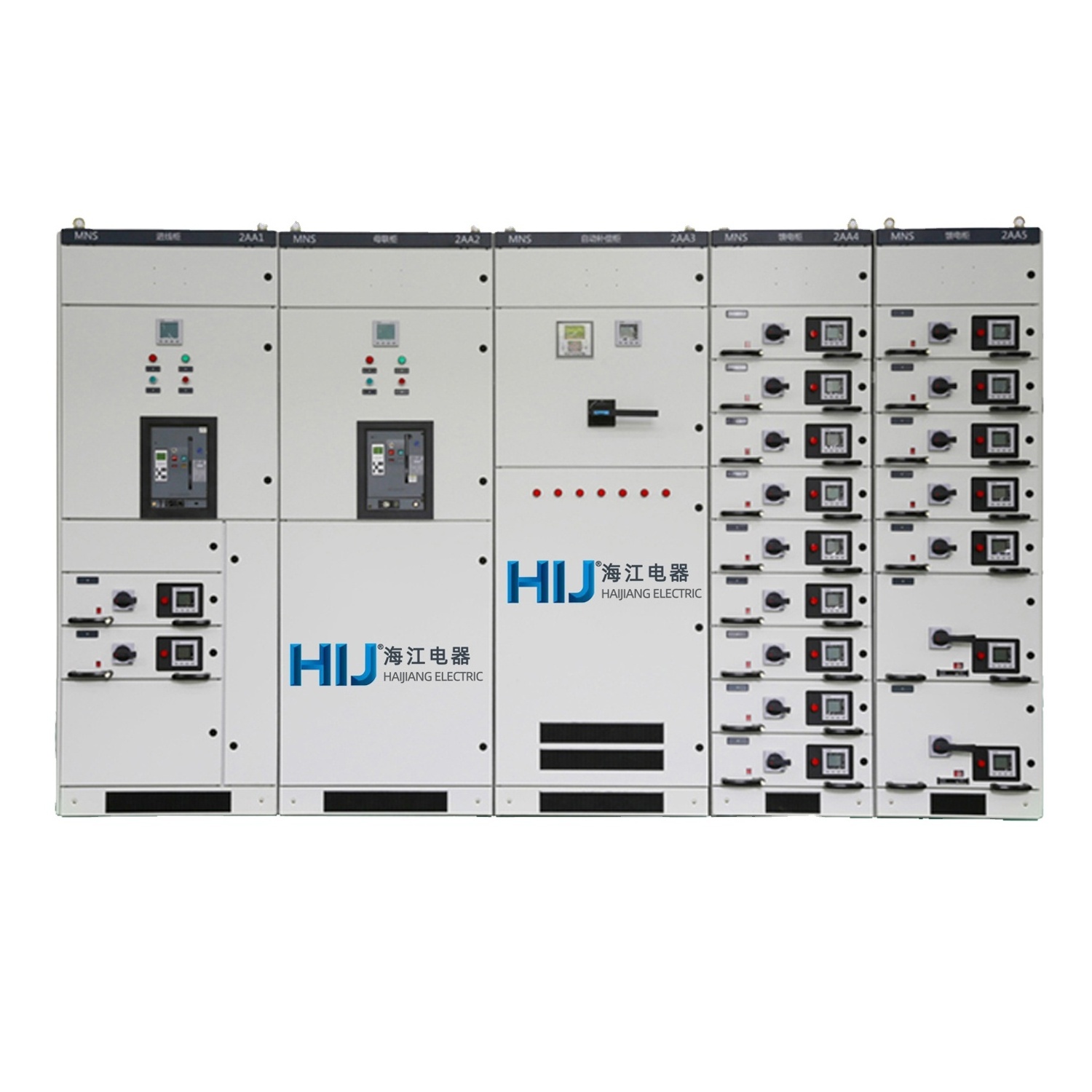

The MNS series low-voltage withdrawable switchgear is a combination cabinet assembled by the factory using standard modules, and its technology has reached international advanced levels.
This series of low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemicals, metallurgical rolling mills, transportation energy, light industry, textiles, industrial and mining enterprises, residential areas, high-rise buildings, etc. It is used for energy conversion, distribution, and control of power systems with AC 50-60Hz and rated working voltage up to AC 660V.
This device complies with the national professional standards GB7251.1 "Low-voltage switchgear and controlgear assemblies" and JB/T9961 "Low-voltage withdrawable switchgear" and also conforms to international professional standards such as IEC439-1, VDE0660 Part 5.
Operating Environment Requirements
▶
The ambient air temperature should not exceed +40°C or be lower than -5°C, and the average temperature within 24 hours should not exceed +35°C.
▶
The air should be clean, with relative humidity not exceeding 50% at the highest temperature of +40°C. Higher relative humidity is allowed at lower temperatures, for example, 90% at +20°C, but considering temperature changes, occasional condensation may occur.
▶
The altitude should not exceed 2000m.
▶
This device is suitable for transportation and storage processes within the temperature range of -25°C to +55°C. In short periods (within 24 hours), it can reach up to +70°C. The device should not suffer any irreparable damage under these extreme temperatures and should operate normally under normal conditions.
▶
If the above usage conditions cannot be met, it should be discussed and resolved by the user and the manufacturer.
▶
When this device is used on offshore oil drilling platforms and nuclear power plants, a separate technical agreement should be signed.
|
Parameters Name
|
|
Unit
|
Content
|
|
|
Rated Insulation Voltage
|
|
V
|
500
|
|
|
Rated Operating Voltage
|
|
V
|
380
|
|
|
Maximum Rated Current of Main Busbar
|
|
A
|
1600
|
|
|
Rated Withstand Current of Main Busbar
|
|
kA/1s
|
30
|
|
|
Rated Peak Withstand Current of Main Busbar
|
|
kA/0.1s
|
75
|
|
|
Maximum Rated Current of Distribution Busbar (Vertical Busbar)
|
|
A
|
800
|
|
|
Peak Current of Distribution Busbar (Vertical Busbar)
|
Standard Type
|
kA/0.1s
|
75
|
|
|
|
Enhanced Type
|
kA/0.1s
|
85
|
|
Switchgear Types
▶
Power Center Cabinet
Compatible with circuit breakers such as Emax, MT, 3WN, AH, ME series, etc.
▶
Motor Control Center Cabinet
Assembled from drawers of different sizes, each circuit main switch uses a high-breaking capacity molded case circuit breaker or a load switch with a rotary fuse. Power factor automatic compensation cabinet (with manual, automatic, and remote power factor compensation devices)
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
