- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
RYGH Tech
-
Model Number:
-
RYGH-3GA-2000W(5050)
-
Beam Angle(°):
-
20.40.60.90.
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 65
-
Product Weight（kg）:
-
44
-
Lumen:
-
170-180LM/W
-
Driver:
-
Inventronics/SOSEN
-
input:
-
AC 90-305V
-
Power:
-
2000 Watt
-
CCT:
-
2700-7000K
-
LED quantity:
-
EMC 5050
-
Beam angle:
-
15, 30, 60, 90, 140*70
-
Surge protection:
-
10KVA
-
Working Temperature:
-
-40-65℃
-
LED Light Source:
-
LUMI-LEDS / Smalite high power 5050 SMD
Quick Details
-
Lamp Luminous Flux(lm):
-
340000
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYGH Tech
-
Model Number:
-
RYGH-3GA-2000W(5050)
-
Beam Angle(°):
-
20.40.60.90.
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 65
-
Product Weight（kg）:
-
44
-
Lumen:
-
170-180LM/W
-
Driver:
-
Inventronics/SOSEN
-
input:
-
AC 90-305V
-
Power:
-
2000 Watt
-
CCT:
-
2700-7000K
-
LED quantity:
-
EMC 5050
-
Beam angle:
-
15, 30, 60, 90, 140*70
-
Surge protection:
-
10KVA
-
Working Temperature:
-
-40-65℃
-
LED Light Source:
-
LUMI-LEDS / Smalite high power 5050 SMD
Product Description
|
Product specifications
IP level: IP66 IK level: IK10 Input voltage: AC 85-305V (AC 200-480V optional) Power supply brands: MEANWELL,Inventronics, SOSEN, DONE, etc Power factor:>0.95 Certificates: CE, RoHs, FCC, TUV, SASO, SAA Product material: ADC12 die-casted aluminum radiator+PC lens Luminaire efficiency: 170-180lm/w(5050), Color temperature: 2700K/3000K/4100K/5000K/5700K/6500K Environmental temperature: -40 ℃~65 ℃ Color rendering index:>80 Lamp life:>50000 hours Chip: Phil-ips Lum-ileds/Lightning/Smalite/TYF 5-8 watts EMC 5050 SMD Warranty: 5 years
Product advantages
1. Anti glare cover 2. ADC12 Die-casted Aluminium, high thermal conductivity 3. Multiple lens options: 25.45.60.90. degrees 4. Standard module
Product application

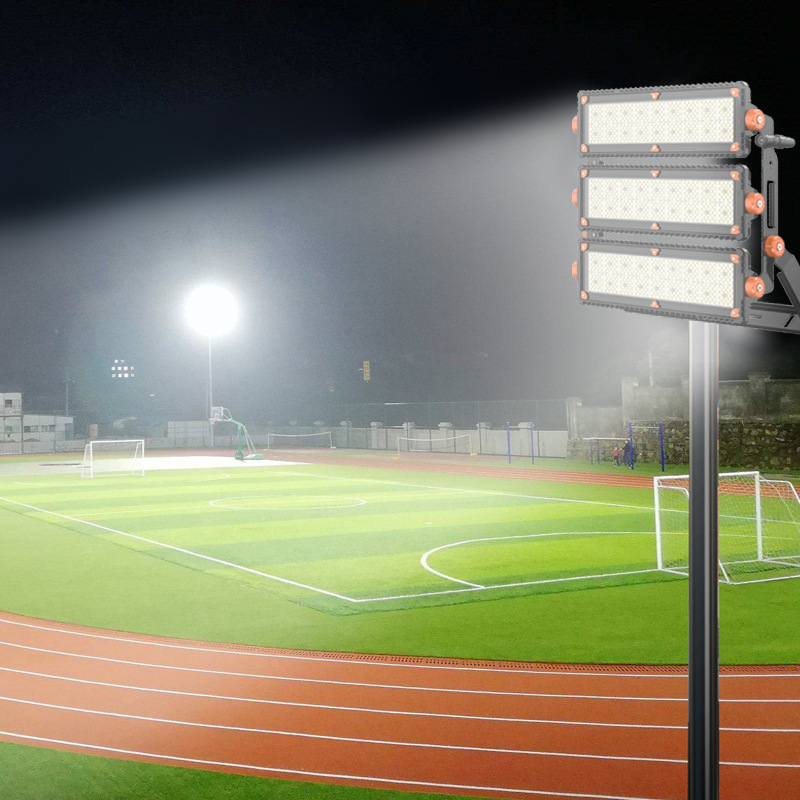

High pole lighting, golf course lighting, road lighting, floodlight lighting, industrial lighting, tunnel lighting, airport lighting, golf course lighting, shipyard lighting, dock Lighting |
|
|
|
|
||||
|
Part No.
|
3GA-500W
|
3GA-1000W
|
3GA-1500W
|
3GA-2000W
|
||||
|
Modules
|
1
|
2
|
3
|
4
|
||||
|
Power
|
400W/500W
|
800W/1000W
|
1200W/1500W
|
1600W/2000W
|
||||
|
Light efficiency
|
170-180lm/w
|
170-180lm/w
|
170-180lm/w
|
170-180lm/w
|
||||
|
Lumen
|
85000lm
|
170000lm
|
255000lm
|
340000lm
|
||||
|
No. of chips
|
5050 288 pcs
|
5050 576 pcs
|
5050 864 pcs
|
5050 1152 pcs
|
||||
|
Dimension
|
721*273*122MM
|
762*504*122MM
|
762*736*122MM
|
762*966*122MM
|
||||
|
Carton Size
|
784*336*185MM
|
825*567*185MM
|
825*799*185MM
|
825*1029*185MM
|
||||
|
N.W.
|
11KG
|
22KG
|
33KG
|
44KG
|
||||
|
G.W.
|
13KG
|
24KG
|
35.5KG
|
47KG
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
