Easy installation.
Detachable terminals
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TR
-
Model Number:
-
TS-3AV63-003
-
Operating Temperature:
-
-10℃~+55℃, -10 ~+55℃
-
Dimensions:
-
72*72mm
-
Max. AC Voltage:
-
600V
-
Power supply:
-
AC 220V or customized
-
Warranty:
-
3 Years
-
Signal input:
-
AC 0-600V(default)
-
Frequency:
-
45~65Hz
-
Function:
-
Three-phase Voltage Measurement
-
Display:
-
LED or LCD screen
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-

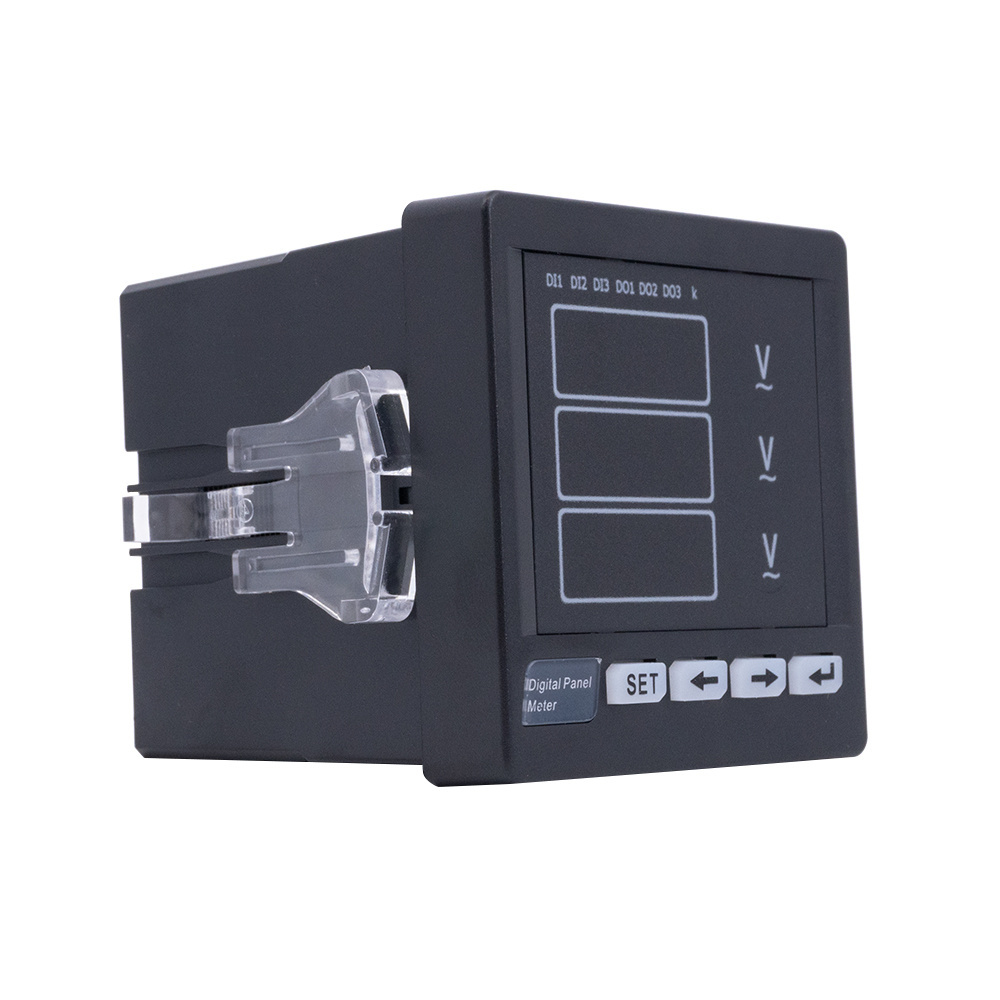

Product name:
-
AC /DC Power 72*72mm Digital Single-phase Voltage Meter
-
Material:
-
ABS
Quick Details
-
Measuring Range:
-
AC 0-600V(default)
-
Accuracy Class:
-
0.5 Class
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TR
-
Model Number:
-
TS-3AV63-003
-
Operating Temperature:
-
-10℃~+55℃, -10 ~+55℃
-
Dimensions:
-
72*72mm
-
Max. AC Voltage:
-
600V
-
Power supply:
-
AC 220V or customized
-
Warranty:
-
3 Years
-
Signal input:
-
AC 0-600V(default)
-
Frequency:
-
45~65Hz
-
Function:
-
Three-phase Voltage Measurement
-
Display:
-
LED or LCD screen
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-
Product name:
-
AC /DC Power 72*72mm Digital Single-phase Voltage Meter
-
Material:
-
ABS
Specification
Performance Characteristics
High precision measurement of single phase AC/DC
voltage
Provide the digital tube display, local data query
Programmable PT ratio
Support for RS-485 communication, Modbus-RTU protocol
Support for switch input, output, analog transmitting output
A variety of dimensions to meet the different requirements of the electric
distribution box
Accuracy of Measurement
Current: level 0.5
Signal Input
Connection Mode: single phase two wires
Rated Voltage: AC 0-600V/DC 0-1000V
Overload Voltage: 1.2 times (Continued ), 2 times / second (instantaneous)
Power Consumption: <1VA/phase (voltage)
Impedance: >300KΩ
The Frequency: 45-65Hz or DC
Auxiliary Power Supply
Working range AC 220V
Power Consumption: <4VA
Function Module
Communication Interface: 1 way RS-485 communication, Modbus-RTU protocol
Baud Rate: 1200-9600bps, the default is 2400bps
Switch Input:
4
ways
Switch Output:
3
ways(capacity: AC 250V /5A, DC 30V/5A)
Transmission Output:
3
ways(analog output: 0/4-20mA or 0-5/10V)
|
Specification parameters
|
|
|
|
Model
|
TS-3AV63
|
|
|
Parameter
|
Voltage
|
|
|
Measure voltage
|
AC 0-600 V
|
|
|
Frame size
|
72*72mm
|
|
|
Hole size
|
67*67mm
|
|
|
Connection mode
|
Single phase two wire
|
|
|
Power supply
|
AC 220V ,AC/DC 85~265V,AC380V, AC100V
|
|
|
Extra function
|
Alarms , analog output, RS485
|
|
To connect the single phase current signalinput
Auxiliary Power Supply:AC220V(Customizable:AC/DC 85-265V or DC)
Products Description
26+YEARSEXPERIENCE
Hubei Tianrui Electronic Co., Ltd. was established in 1998, integratingproduction, marketing and research and development. lt has more than20 years of experience and was listed in 2016. Stock Code: 837601
The company has efficient and fast production capabilities to meet customer customization requirements.
The company has advanced production equipment and technology to improve production efficiency and product quality.
The factory has strict control standards for product quality, ensuring that products meet customer requirements and standards.
Continuously strengthening research and development investment and team building, obtaining various innovative achievements and patents, actively engaging in in-depth exchanges with technology partners, and jointly promoting industry technological progress.
Continuously improving service response speed, service quality and professionalism to enhance customer satisfaction, with the aim of achieving customer satisfaction
Sign core supplier contracts with customers in Türkiye and Italy
Every year, we participate in major international exhibitions in the industry and visit our cooperative clients
We are present at major industry exhibitions
Shipping and packaging
FAQ
Are you a manufacturer or trading company ?
We are a manufacturer has export qualification and experience.
MOQ ?
Instrument type at least 100pcs ;others by 1 -5 pcs
What about your payment term ?
T/T L/C.
What's your OEM capability ?
PER DAY：
Instrument transformer 20 thousand pcs ,current transformer 12 thousandpcs ,voltage transformer 11 thousand pcs
How to ensure your ODM service ?
We have a R&D team for new product design.Successful cases and in contin-ued cooperation.Discussion among both sides - general specification ensurestructure drawing →original sample →electrical performance and installationsuit ensure →communicate and improve -final sample enure →confidencialagreement -contract and Quality guarantee document
Kinds of pakage ?
MULTI-SELECTION
Standard Carton
Export fumigatin-free tray
Tray Film
Edge fixing strip
