- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
3KW
-
Dimension(L*W*H):
-
2300*620*1400MM
-
Weight:
-
580 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Free spare parts
-
Name:
-
commercial fresh noodle making machine price
-
Application:
-
noodle shops, restaurant,factories,canteen, etc
-
Function:
-
dough mixing, rolling , cutting, drying, etc
-
Material:
-
Stainless Steel
-
Feature:
-
High Efficiency
-
Keywords:
-
Noodle Making Equipment/ pasta making machine
-
advantage:
-
Easy Operation Low Cost
-
noodle size:
-
customized by changing noodle cutters
-
Final product:
-
fresh noodle , dry noodle, dumplign wrapper, etc
Quick Details
-
Production Capacity:
-
100-300kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JOCONN
-
Voltage:
-
220V/380V
-
Power:
-
3KW
-
Dimension(L*W*H):
-
2300*620*1400MM
-
Weight:
-
580 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Free spare parts
-
Name:
-
commercial fresh noodle making machine price
-
Application:
-
noodle shops, restaurant,factories,canteen, etc
-
Function:
-
dough mixing, rolling , cutting, drying, etc
-
Material:
-
Stainless Steel
-
Feature:
-
High Efficiency
-
Keywords:
-
Noodle Making Equipment/ pasta making machine
-
advantage:
-
Easy Operation Low Cost
-
noodle size:
-
customized by changing noodle cutters
-
Final product:
-
fresh noodle , dry noodle, dumplign wrapper, etc

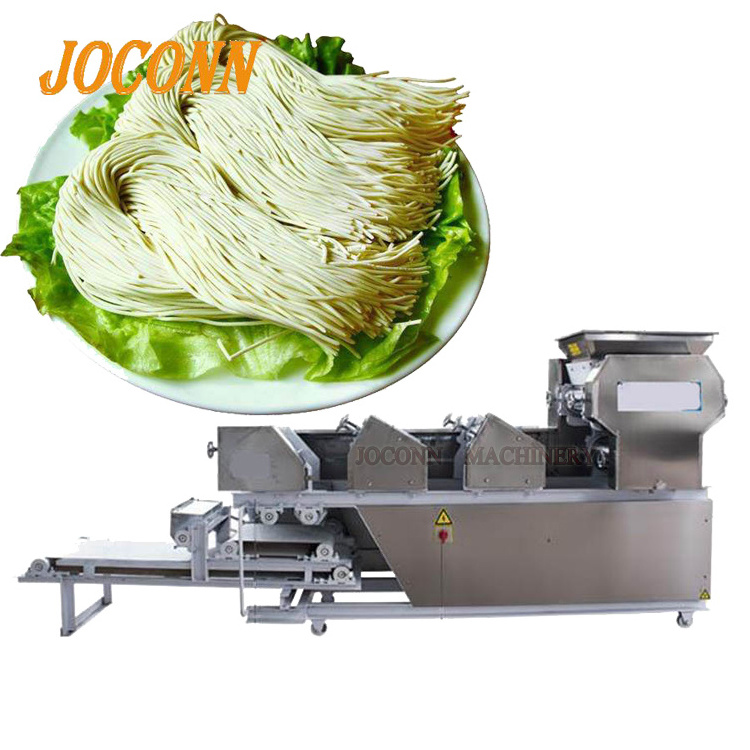

2022 new design Automatic Noodle Making Machine Manufacturer/commercial fresh noodle making machine /Round square Noodle maker
1. Introduction of commercial fresh noodle making machine
Commercial fresh noodle making machine has compact structure, mainly consists of dough hopper, dough press roller, noodle cutter, dry flour box, conveyor belt or noodel climbing rod, etc. Different noodle production, different machine structure. Different capacity, different model, depends on the dough press roller quantity and width.
Final noodle shapd and size can be different by changing noodle cutters. No matter you use it in small restaurant, pasta shops, noodle factories, etc, you can always find one model suitable for your use.
2. Principle of commercial fresh noodle making machine
1. Mix flour and water in proportion with flour mixer to get flour a little wet for eaiser pressing and rolling
2. put mixed flour into noodle making machine hopper ( by hand or by coveyor) to press it into dough sheet for noodle shaping
3.Put doguh sheet into the gap between 2rollers, dough sheet will move forward along with the roller rotates continuously
4. when dough sheet moves under cutter blade, the noodle cutter will cut dough sheet into noodles at one time. at the same time, dry flour will be sprinkled automatically on noodle surface in case of stick.
5. after cutting, noodles are with the uniform shape and size. you can collect the fresh noodles aside for sale, or they will automatically fall onto noodle drying rod for drying in the later further process
3. Features of commercial fresh noodle making machine
4. Models of commercial fresh noodle making machine
|
Model |
JCMT4 |
JCMT5 |
JCMT6 |
JCMT7 |
|
C apacity |
80-100kg/h |
120-130kg/h |
180-210kg/h |
220-240kg/h |
|
R oller(Dia*Width) |
96*250mm |
96*250mm |
96*250mm |
138*260mm |
|
P ower |
2.2kw |
3kw |
3kw |
3kw |
|
Weight |
300kg |
360kg |
550kg |
910kg |
|
Size |
1250*650*1300mm |
2000*650*1500mm |
2500*650*1500mm |
2900*700*1400mm |
|
Note: roller width can also be 260mm, 300mm, 330mm, 350mm, etc |
||||
5. Pictures of commercial fresh noodle making machine
flour mixer/dough mixer
conveyor with Automatic induction
JCMT4 noodle making machine without automatic cutting
JCMT5 noodle making machine
JCMT6 noodle making machine
JCMT7 noodle making machine
6. Finished products
If you are interested, please feel free to contact me by namecard below , or scan the QR code for quick talk on wechat . we are on service 24hrs .
