Quick Details
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weier
-
Voltage:
-
380v,3p,50hz
-
Dimension(L*W*H):
-
10*3.0*2.5 (m)
-
Power (kW):
-
160
-
Weight:
-
8 KG
-
plastic machine name:
-
20-110 MM HDPE PE Pipe Extruder Plastic Pipe Line
-
production line feature:
-
High speed HDPE PE Drip Irrigation Pipe Making Machine
-
after sale service:
-
lifelong
-
guarantee of machine:
-
12 months
-
extruder model:
-
high efficiency
-
intelligent temperature controller:
-
omron from Japan
-
frequency converter:
-
ABB
-
pipe range:
-
10-110mm/16-160mm/110-450mm/500-1200mm
-
project:
-
turn key project for HDPE PE Drip Irrigation Pipe Making Machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33
-
Screw diameter (mm):
-
75 mm
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weier
-
Voltage:
-
380v,3p,50hz
-
Dimension(L*W*H):
-
10*3.0*2.5 (m)
-
Power (kW):
-
160
-
Weight:
-
8 KG
-
plastic machine name:
-
20-110 MM HDPE PE Pipe Extruder Plastic Pipe Line
-
production line feature:
-
High speed HDPE PE Drip Irrigation Pipe Making Machine
-
after sale service:
-
lifelong
-
guarantee of machine:
-
12 months
-
extruder model:
-
high efficiency
-
intelligent temperature controller:
-
omron from Japan
-
frequency converter:
-
ABB
-
pipe range:
-
10-110mm/16-160mm/110-450mm/500-1200mm
-
project:
-
turn key project for HDPE PE Drip Irrigation Pipe Making Machine
20-110 MM HDPE PE Pipe Extruder Plastic Pipe Line
Product specification
Product application: water supply/drainage pipe
Advised raw material:PE 80, PE 100
Product color:as per customer's
Operation norm:CE,ISO9001:2000
Using condition
Power supply: 3P 380V (-10%,+5%) 50Hz
Installed power:about 150 kw
Cooling water: ≤20℃ ≥0.3Mpa~ 6L/min
Compressed air:0.3m³/min>0.5Mpa
Total length:about 38m
Specification :
| Type | Pipe spec | Extruder | capacity | total power |
| WR-PE63 | φ 20-63 | SJ65/33 | 100-120 | 55 |
| WR-PE160 | φ 63-160 | SJ65/33 | 120-300 | 90 |
| WR-PE250 | φ 75-250 | SJ75/33 | 280-400 | 110 |
| WR-PE450 | φ 160-450 | SJ90/33 | 500-700 | 160 |
| WR-PE630 | φ 315-630 | SJ120/33 | 700-900 | 280 |
| WR-PE800 | φ 450- 800 | SJ150/33 | 1000-1100 | 315 |
| WR-PE1200 | φ 710- 1200 | SJ150/33 | 1100-1300 | 355 |
1.
1.High Effeciency Single Screw Extruder
Gear box bearings: NSK, Japan ,with Special design screw & barrel ,with Siemens PLC controlling system ,
ABB550 inverter, Siemens motor, Low voltage component: Siemens
2.Die mould &calibrator
(1) Mould Material: 40GR

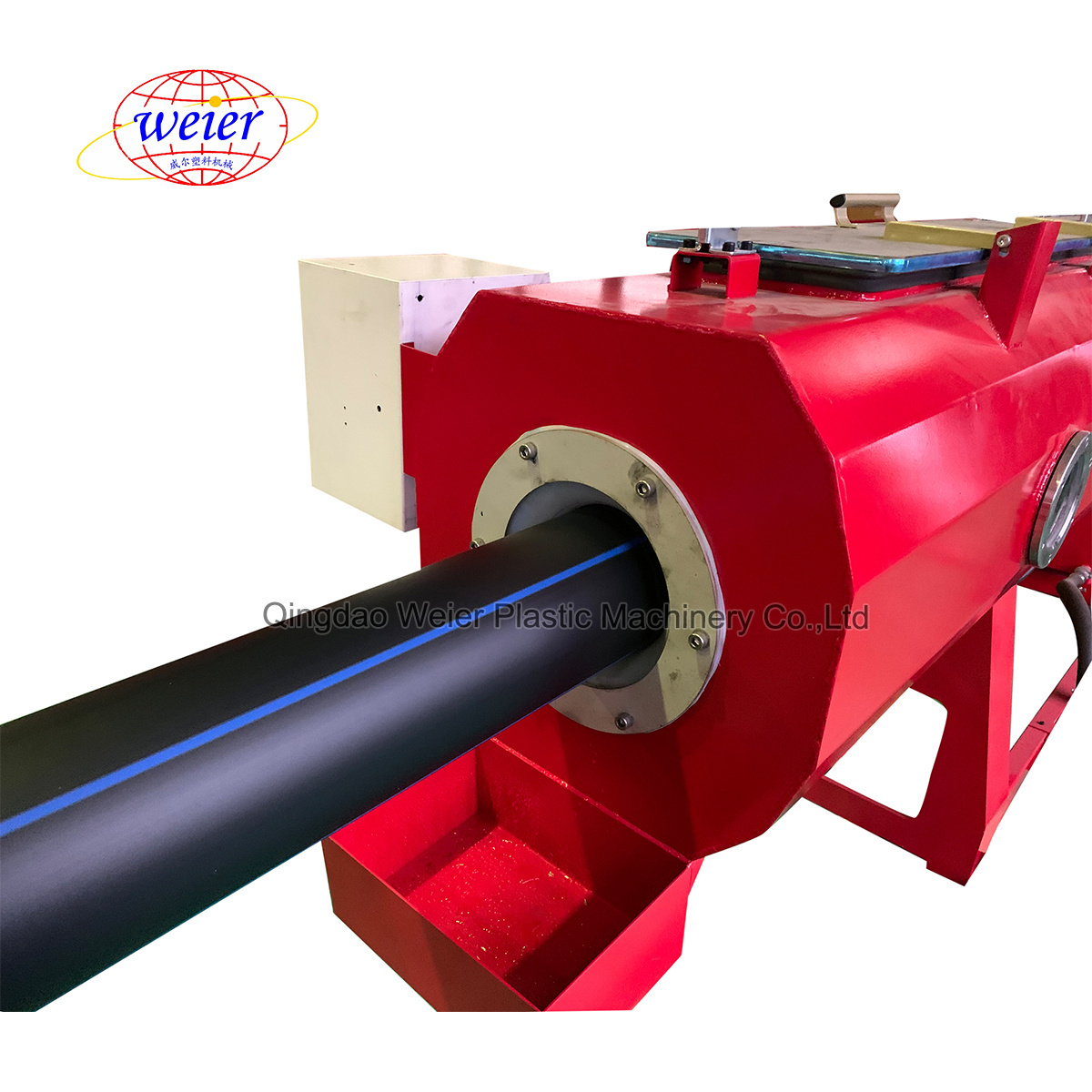

3. Vacumm Calibrating and Cooling Tank
High precision calibrating sleeves made from specify material with high outstanding thermal conductivity, high
Wear resistance and good sliding properties. Automatically control water temperature and water level
4.Haul-off Machine
Based on different diameter of the pipe, the hauling can be 2 caterpillars hauling machine,3 caterpillars hauling and
4 caterpillars machine,it's controlled pneumatically
5.Winding Machine
Pipe diameter ≤110mm can be coiled by winding machine .
Cutting method: Hydraulic or mechanical knife cutting,
Cutting saw: steel alloy or SKD-11
Cast Alunimum clamping for accurate cutting
With Dust collection system
6.Cutting machine
1) Method: Saw cutting (2) Cutting scope: Customized
