Quick Details
-
Brand Name:
-
dongnan
-
Model Number:
-
KW10-Z1P075-76
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40~85(℃)
-
Protection Level:
-
IP41
-
Product Name:
-
Micro Switch
-
Certification:
-
CQC,CE,UL
-
Ratings:
-
3A
-
voltage:
-
250V AC
-
Terminal Type:
-
left , right, straight side PCB,solder,wires
-
Contact Resistance:
-
50MΩ MAX
-
Application:
-
Home Appliance, new energy vehicle, car, auto parts,industry
-
OEM/ODM:
-
yes
-
Electrical life:
-
1E4
-
Lever / wires:
-
Choosable
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125V, 250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dongnan
-
Model Number:
-
KW10-Z1P075-76
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40~85(℃)
-
Protection Level:
-
IP41
-
Product Name:
-
Micro Switch
-
Certification:
-
CQC,CE,UL
-
Ratings:
-
3A
-
voltage:
-
250V AC
-
Terminal Type:
-
left , right, straight side PCB,solder,wires
-
Contact Resistance:
-
50MΩ MAX
-
Application:
-
Home Appliance, new energy vehicle, car, auto parts,industry
-
OEM/ODM:
-
yes
-
Electrical life:
-
1E4
-
Lever / wires:
-
Choosable
Products Description
|
Specifications
|
|
|
Ratings
|
3A 125/250V AC
|
|
Temperature
|
40T85
|
|
Insulation resistance
|
100MΩ min
|
|
OP
|
6.7+-1mm
|
|
Operating Force
|
0.26N MAX
|
|
Electronical life
|
1E4
|
|
Contact Resistance
|
50MΩ MAX
|
|
Test Voltage
|
AC 1000VAC
|
|
OEM ODM
|
YES
|
|
Material
|
plastic AgNi10
|
|
Certification
|
CQC CRUUS CE VDE
|

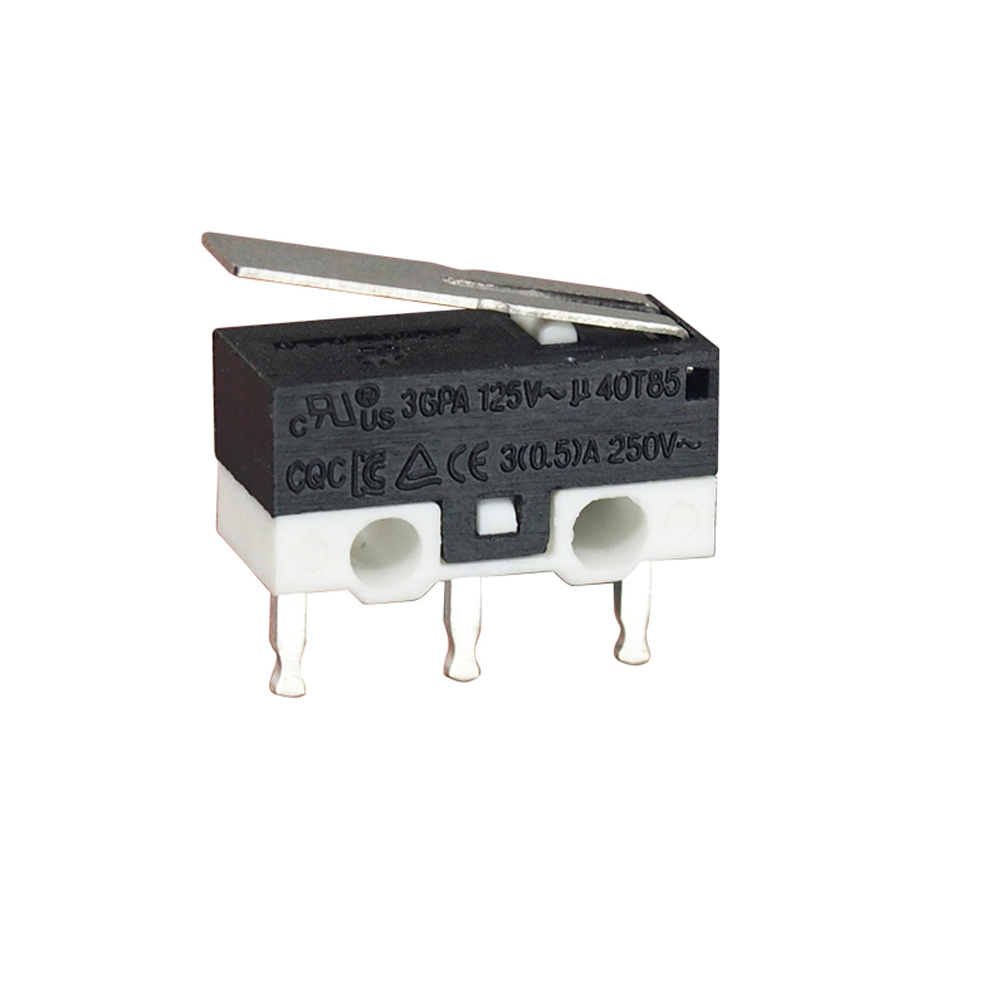

Model：KW10
Use the KW10 Subminiature Snap Action Switch with electric vehicle door locks. This No Micro Switch is ideally suited for managing the states of doors due to its small size and large current range (0.1A to 3A). Complete contact material on the Ac Micro Switch ensures prompt and efficient circuit switching when needed.
Product Features
-Despite its compact size, the mini micro switch is incredibly dependable and robust. This KW10 micro switch is the ideal option for situations where space is at a premium because of its small size, allowing it to be installed easily in various cramped and restricted spaces.
-Subminiature snap action switch is designed to withstand daily use. It can be used for several purposes, such as controlling access to the vehicle or guaranteeing the safety and security of passengers. No micro switch can operate consistently in a variety of working conditions with a current rating ranging from 0.1A to 3A. This guarantees the electric bus's electronic lock functions dependably and effectively.
-Ac micro switch provides rapid contact with a tiny contact gap, enhancing the electronic lock's response time and guaranteeing its stability and safety in an emergency. Our mini micro switches are painstakingly designed to deliver maximum efficiency and dependability.
Application
Micro switches, electromagnets, control units, and other components comprise most of the electronic lock system on electric buses. The control unit sends a signal to the electromagnet, which uses magnetic force to drive the micro switch to open and close the door.
Recommend Products
FAQ
1. Who are we?
We are based in Shenzhen, China, near Hongkong , Guangzhou, Shenzhen port;The cooperation company such as Phoenix, BYD,Panasonic, Samsung from china and more than 100 countries and areas.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Waterproof switches; micro switch; electronic lock actuator; car charger & socket,automotive parts
4.Would you accept to use our logo?
We can make OEM and ODM, customized as you requestment
5.Can I get a sample for reference?
We are glad to send samples for your testing. some samples are free, but you may need to pay the express cost.
6. What is your delivery time?
It takes 3~5 working days for samples, and 15~20 working days for mass productions
