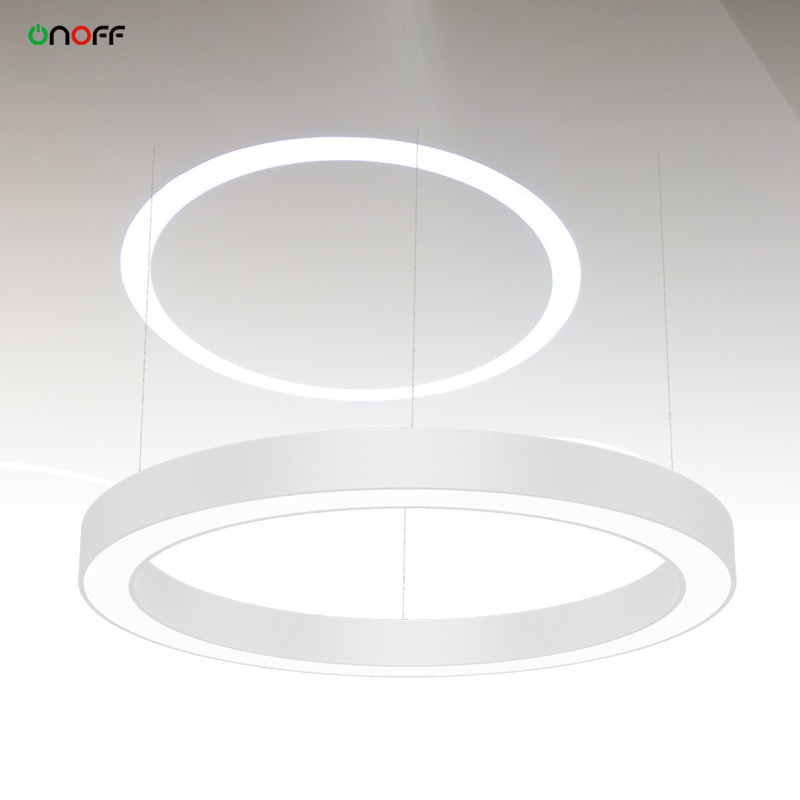

Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light
Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light

Simple style circular LED profile light fixture 100lm/w high lumen ceiling pendant light

FOB Reference Price: Get Latest Price
≥2 Pieces
US $95
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty(Year):
5-Year
Brand Name:
ONOFF/OEM
Model Number:
HR5575-0.6M
Place of Origin:
Guangdong, China
Product Weight（kg）:
4
Product Dimension:
600x600xH80mm
Packing Dimension:
68x68x12cm
PCs/ Ctn:
1
Input Voltage(V):
AC 100-277V
Lamp Luminous Flux(lm):
4500
Beam Angle(°):
120
Product name:
Ceiling LED pendant ring light
Diameter options:
0.6m,0.8m,1.0m,1.2m,1.5m,1.8m,2.0m,2.4m,3m,3.6m,4m,4.5m,5m
Main material:
Aluminum +PC
Style:
Simple, Nordic, Modern
Lumen efficacy:
100lm/w
Control way:
switch on/off, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable
Suitable for:
Commercial building, office, store, mall. hotel
Installation:
Suspended, ceiling, recessed
Shell color:
White, black, silver, golden
Working Time (hours):
50000 hours

Quick Details

Design Style:
Modern
Application:
Office Building
Body Material:
Aluminum
Warranty(Year):
5-Year
Brand Name:
ONOFF/OEM
Model Number:
HR5575-0.6M
Place of Origin:
Guangdong, China
Product Weight（kg）:
4
Product Dimension:
600x600xH80mm
Packing Dimension:
68x68x12cm
PCs/ Ctn:
1
Input Voltage(V):
AC 100-277V
Lamp Luminous Flux(lm):
4500
Beam Angle(°):
120
Product name:
Ceiling LED pendant ring light
Diameter options:
0.6m,0.8m,1.0m,1.2m,1.5m,1.8m,2.0m,2.4m,3m,3.6m,4m,4.5m,5m
Main material:
Aluminum +PC
Style:
Simple, Nordic, Modern
Lumen efficacy:
100lm/w
Control way:
switch on/off, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable
Suitable for:
Commercial building, office, store, mall. hotel
Installation:
Suspended, ceiling, recessed
Shell color:
White, black, silver, golden
Working Time (hours):
50000 hours
Product Description
Aluminum body LED circular light, has various diameters to choose, they are 0.45m, 0.6m, 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3.0m, 3.6m, 4.0m, 4.5m, 5.0m, and it is also allowed to custom made other shapes and colors.

Opal PC diffuser

Our PC cover is exactly fixed on aluminum housing, it is not loose. With high quality Plastic raw material, they stay white color after long time use. No yellowing.

Strong aluminum housing structure(not iron material)

The aluminum profile is 2.0mm thick, to make sure the entire housing has good strength, and better heat dissipation.
Circle ring diameter from 0.45m to 1.2m is one part circle light, no need to connect.
Big diameter from 1.5m to 2.4m is connected by 4 parts, bigger diameter has more connections.
All of them are seamless connection, there is not light leakage after installation complete.
Detailed Images

Product Advantage:
a. Light emitting uniformly, no dark spot, no dark edge.
b. whole housing is extrusion aluminum, with top level surface painting treatment, products looks and feel excellent.
c. Branded power driver built-in, stable and flicker-free. When taking photo or video in the room, there is no screen flickering on the mobile.
d. very good heat dissipation, to make sure long lifespan >50000 hours.
Product Paramenters
Please notice we have all series aluminum profile sizes from slim size to big size, welcome to contact us to get the best choice for your projects.
Item Number
Dimension (mm)
Shell Color
Light color
Other spec
HR35X35
HR40x40
HR55x75
HR60x40
HR80x40
HR60x65
HR40x80
HR60x80
HR80x80
HR100x80

450x450x(H40/65/75/80)
Black
White
Silver
Gold
(Customized RAL colors)
3000K
4000K
6000K
RGB
RGBW
CCT adjust
Aluminum housing structure, 100lm/w,
CRI>80,
PF>0.95,
FLICKER-FREE,
Various mounting.
600x600x(H40/65/75/80)
White
Black
(Other RAL colors customized)
800x800x(H40/65/75/80)
1000x1000x(H40/65/75/80)
1200x1200x(H40/65/75/80)
1500x1500x(H40/65/75/80)
2000x2000x(H40/65/75/80)
2400x2400x(H40/65/75/80)
3000x3000x(H40/65/75/80)
Installation Instructions
There are 5 mounting options.
Type 1 : Normal suspended mounting, the hanging ropes are parallel, suitable for all sizes.
Type 2 : Vertical suspension with a ceiling base(ceiling rose), suitable for all sizes.
Type 3 : Central suspension with ceiling base in the middle position, suitable for ring diameter <1.5meter.
Type 4 : Ceiling surface mounting, suitable for flat ceiling.
Type 5 : Trimless recessed mounting, suitable for gypsum plaster ceiling( Drywall ceiling ).
Please indicate which mounting way you will need, we normally only supply type 1 accessories with suspension steel ropes 1.5meter.
Product Application
Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.
