Quick Details
-
Model Number:
-
RK2-37
-
Max. Current:
-
10A
-
Mechanical Life:
-
10000cycles
-
Category:
-
Rocker switch
-
Shape:
-
Oval
-
Function:
-
on-off, on-on, on-off-on
-
Inidcator light color:
-
red neon, green neon, blue neon
-
Housing color:
-
black, white, grey
-
Cover color:
-
red, white, orange, green
-
Terminal number:
-
2 pins, 3 pins
-
Dimension:
-
25mm
-
Certificates:
-
RoHS CQC TUV CB UL (t85)
-
Application:
-
radiator and fans
-
Certification:
-
UL TUV CB
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RK2-37
-
Max. Current:
-
10A
-
Mechanical Life:
-
10000cycles
-
Category:
-
Rocker switch
-
Shape:
-
Oval
-
Function:
-
on-off, on-on, on-off-on
-
Inidcator light color:
-
red neon, green neon, blue neon
-
Housing color:
-
black, white, grey
-
Cover color:
-
red, white, orange, green
-
Terminal number:
-
2 pins, 3 pins
-
Dimension:
-
25mm
-
Certificates:
-
RoHS CQC TUV CB UL (t85)
-
Application:
-
radiator and fans
-
Certification:
-
UL TUV CB
Recommend Products
Exhibition

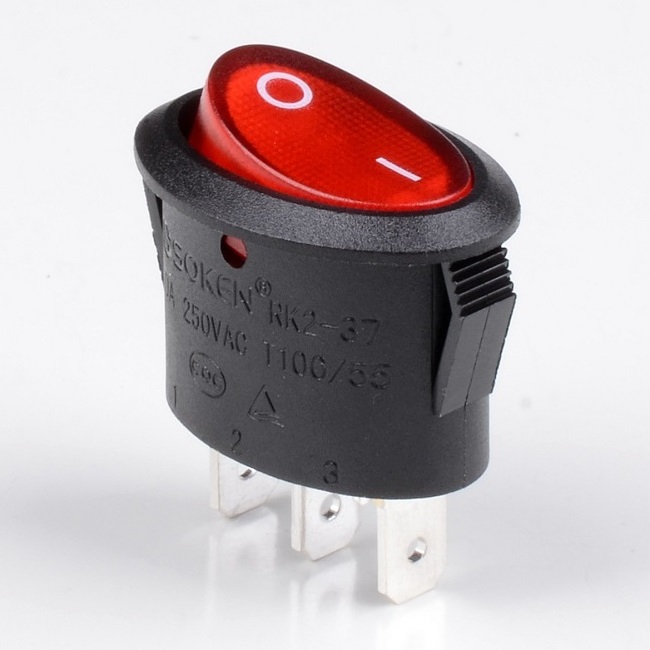

RK2-37 Radiator fan thermo switch/ Rocker switch panel 10a 220~250vac
|
Model
|
RK2-37
|
|
Function
|
ON OFF /SPST /2pin (01)
ON ON /SPDT /3pin (02) ON OFF ON /SPTT /3pin (03) ON OFF with lamp /SPST /3pin (05) |
Products Description
|
Rating
|
250VAC 10A or 125VAC 6A
|
|
Contact Resistance
|
100MΩ Max
|
|
Dielectric Strength
|
1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
|
|
Operating Temperature
|
-25~85°C
|
|
Insulated Resistance
|
500VDC, 100MΩ Min
|
|
Electrical Life
|
≥10,000 cycles
|
|
Pins (Terminals)
|
3 pins
|
|
Housing Material
|
PA66
|
|
Button Material
|
PC
|
|
Base plastic
|
Nylon 66
|
|
Button plastic
|
PC
|
|
Copper parts such as terminal
|
Copper
|
|
Terminal surface treatment
|
Silver plating
|
|
Contact
|
Ag or Composite silver
|
|
Spring
|
Steel Wire
|
|
Waterproof Material
|
PVC
|
