dispensing valve with screw suit for Flux application,Soldering paste application,Magnet bonding

Product Name:

# dispensing # dispensing valve # adhesive valve # glue dispensing valve # dosing valve # measuring valve # controlled volume pump # screw valve # dosing head # small dispensing valve # adhesive dispenser # low flow dispensing pump # Liquid dispensing valve # Micro PC pump # Fluid dispensing pump #

Description of fluid dispensing valve seriesproduct :

Standard SK-M-PEN Series products are suitable for a variety of viscous characteristics of the medium (up to 6,000.000mpas), for you to bring the pulse-free, low shear, high-precision, quantitative linear transmission of the new design concept.

Standard screw dispensing valves, adhesive pumps, filling systems and other products, widely used in the world of consumer electronics, automotive electronics, solar energy, food, daily cosmetics, chemical, steel, paint, 3D printing and other industries.

Technology :

The manufacture of Standard micro-dispensing valve is based on the principle of infinite circulation piston, that is, the principle of screw. The screw valve can provide high precision volume conveying and can be reversed to make the material flow back, so there will be no drop on the discharging side. In order to adapt from low viscosity to high viscosity of a variety of media precision delivery, Standard continue to improve and innovate SK-M-PEN dispensing screw valve series

1 A variety of adhesives, silicone, two-component adhesive, packaging, sealant, etc.

2 All kinds of solder paste, conductive slurry, RTV gum, anaerobic rubber, epoxy resin, polyurethane, etc.

3 A variety of UV paint, paint, paint, thick paint, solvent paint, additives, suspension agent, viscous raw materials, emulsion, grease and so on

Application Industry

1 Automotive industry: engine, body, lamp, window, airbag, Cooler, tubing, ABS, ESP, sensors, such as dispensing, potting application

2 Electronics industry: All kinds of touch screen, Shell package, PCB board, components, connectors, insulators, speakers and other dispensing, potting application

3 Photovoltaic solar energy: conductive slurry delivery, wafer cutting components of rubber conveyor, junction box bonding, potting, assembly seals, etc.

Single dispensing system SK-M-PEN

1) SK-M-PEN is a small, flexible metering and dispensing products,

2) Possess all advantages of viscous & chemical delivery technology

3) Adjustable volume type conveyor or high / low control

4) Volume delivery, adjustable flow rate measurement

5) Automatic suction function, without drawing, leaking

6) Easy to integrate with existing systems, but also can be used when metering valve

7) Need a signal (start/stop), easy to operate, the signal can be replaced

SK-M-PEN suitable for all kinds of high viscosity, shearing sensitivity, grinding media such as

1. Silicone Resin

2. Metal Slurry

3. Viscous medium (anaerobic medium)

4. Coating

5. High precision Point coating

6. Can be integrated with robots and axes

SK Series of Standard brands have different Models SK-M-PEN150; SK-M-PEN300; SK-M-PEN450; SK-M-PEN600; SK-M-PEN750;  SK-M-PEN1000; SK-M-PEN1500; SK-M-PEN3000; SK-M-PEN7000 Which can be applied to different usage, it can be integrated into the existing production line, also be used in desktop dispensing. All the SK series was produced under the principle of screw pump with self-sealing function. The spiral structure makes the material conveying very gentle.The material transported through SK series products will be almost without any shearing force.Even if the high viscosity material SK series products can also make the high viscosity material perfect back suction through the rotor rotation .Cleaning dispensing valve and mixing point rubber valve is very convenient, material replacement can also be completed quickly.

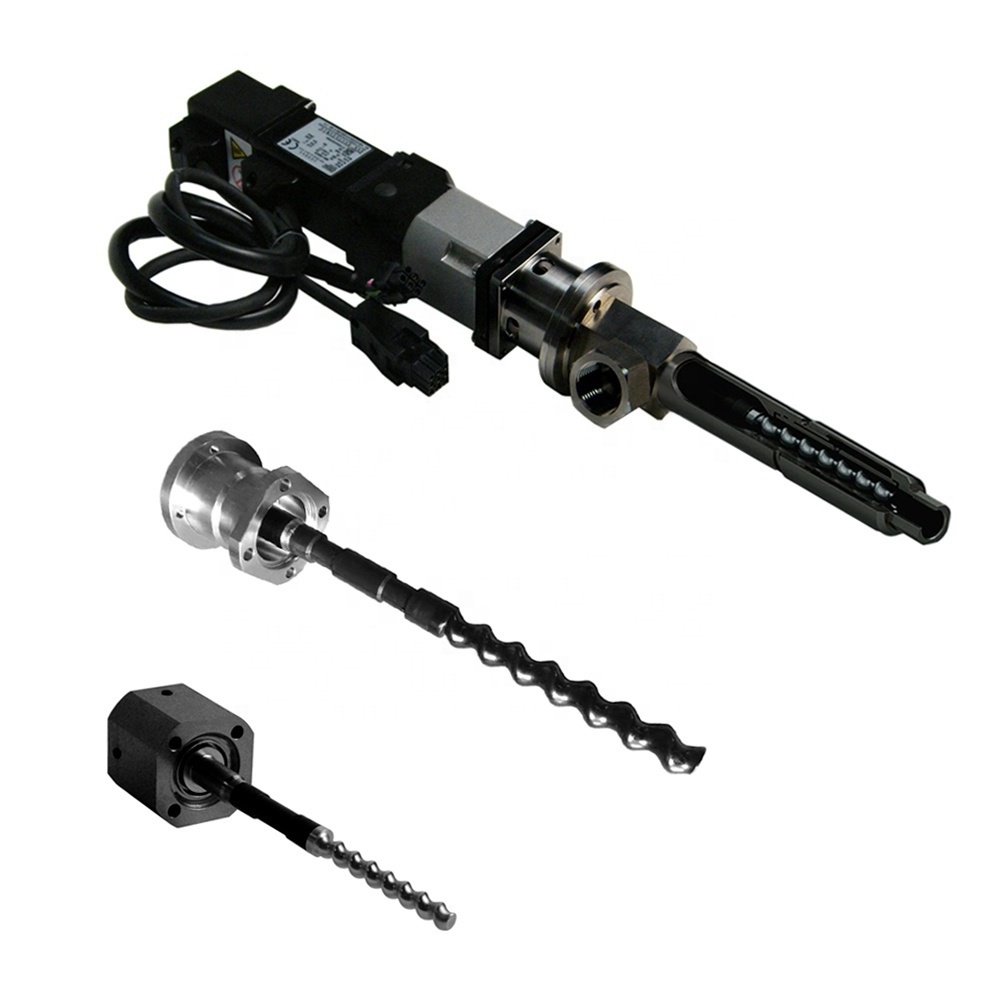

SK-M -PEN1000 Product Description

The new volume precision metering valve SK-M-PEN1000 produced by Standard is mainly used in medium low to high viscosity transmission.

Function principle

SK-M-PEN adopts spiral structure design, pressure-resistant seal, rotor and stator are self-sealing design, easy to replace.The rotor is rotated in the stator cavity to realize the conveying function. The conveying process does not produce a shearing effect on the medium, so it does not affect the dielectric properties.At the same time can be reversed by the motor, easy to achieve the media back-suction function, to ensure that the media and material clean, completely solve the media dripping, drawing problems.

Application

The best volume precision quantitative transport---widely used in various dispensing, line coating, filling, sealing application occasions

Scope of application

1) Electronics Industry  2) Semiconductor industry  3) lcd/led  4)PV Solar Energy industry   5) Pharmaceutical Industry   6)biochemical industry 7) Laboratory   8) optics and optoelectronics industry  9) SMD/SMT

Technical Features

1) true volumetric conveying  2) back-suction function   3)is suitable for all kinds of viscous media 4) easy to clean   5) flow is not affected by pressure change   6) Precision Measurement 7) no need to install any valve   8) transmission pressure range 16-20 Bar

SIZE CHART

TECHNICAL DATA SK-M-PEN1000

Dimensions:	screw valve: (L)415mm; Ø 40mm
	Controller: 250(L)mm*220(W)mm*120(H)mm
Weight:	Screw valve: 1600gram
	Controller: About 2.8kg
Input pressure:	≤6
Output Pressure(bar) :	≥20
Input Connection:	1/4 ″
Output Connection:	luer lock with O ring
Recommended Fluid Viscosity min/max(cps):	0-6000000cps
Delivery Revolution(ml)	1ml/rev
Motor min/max(rpm):	0-120rpm/min
Maximal dosing quantity(ml/min):	120ml/min
Accuracy of Dosing:	±1.5%
Material Screw:	SUS304 SUS316 AL
Material Stator:	FKM FFKM EPDM PU etc
Material Contact parts	SUS304 SUS316 AL
Motor:	German brushless DC servo integrated motor with drive and reducer

Technical data comparison of SK-M-PEN series pump :

Medium Viscosity Chart

1) How does infinite loop piston work?

STANDARD dispensing screw valve belongs to rotary volume pump group. The operation is based on the infinite cyclic piston principle, which conveys the product from the suction end to the release end, thus establishing a pressure difference. The core of each application is a volumetric conveying metric screw valve. The rotor with eccentric motion and adapted to the characteristics in conveying and dosing, the interaction of the stator which corresponds to the condition of the application result of the unending motion piston, because of the geometrical measurement, the constant is always proportional to each turn,and by changing the direction of rotation can change the direction of transmission, so the volume is determined by the angle.

In addition, our technology provides a pressure-stabilized, linear-head pump capacity curve. This makes it clear that the operating rate, time and emission ratios are present. Thus this kind of pump is a revolution in both time and use, and is more widely used with constant dose transport applications. This metering pump has an accurate output measurement of 1% (different media), and the practical operation can be better controlled.

Another advantage is that the resulting conveying cavity, whose volume remainsunchanged throughout the movement. As a result, even solids and even bulk media can be transported. In addition, our pump technology provides additional benefits for other conveying mechanisms. For example, in more than 95% of all applications, no padding and dosing valves (metering valves) are required, and a short reverse motion at the end of the metering process can cause the line to disconnect or stop leaking.

2) What kind of medium can be dosed with the SK-M-PEN series?

1 Light cured epoxy resin, toluene, phenol, production agent, heat curing, gasoline, high filling liquid,

2 Shear sensitive adhesive, LED resin taste, hot conductive paste, solder paste, room temperature vulcanized rubber, silver paste, flux

3) Industrial oils, perfumes, cosmetics and pharmaceuticals, biological suspensions, silicone, lubricants, alcohol, MEK, thermal grease,

4 Polyurethane, solder paste, paint and ink, primer, acetone, epoxy, electrolyte solution, isopropyl alcohol and so on.

3) What can be the reason for too little or no flow of medium?

(1) Potential cause: Motor (dispenser cable) is not connected

Correction: Connect motor to eco-CONTROL unit Check all connections!

(2) Potential cause: Dosing needle is blocked, dosing needle is bent

Correction: Clean and replace the dosing needle

(3) Potential cause: Medium has hardened / cured

Correction: Clean the dispenser

(4) Potential cause: The dosing needle is too small or too long

Correction: Use a different dosing needle cross-section Reduce Dosing speed / flow rate

(5) Potential cause: Insufficient supply of medium

Correction:Increase the supply pressure.Check for air-bubbles.Check the hose line.

(6) Potential cause: Stator is swollen

Correction: Check material resistance, contact manufacturer

4) Why is it leaking or spilling after delivery ?

(1)Potential cause: Reverse flow not properly adjusted

Correcting: Adjusting the reverse flow (instructions in the Operation manual)

(2)Potential cause: Bubbles in Media

Correction: Ventilation medium

(3)Potential cause: Media is compressible

Correction: Medium degassing.

Our services

1 Our screw pump series products, reasonable price, quality service, provide quality inspection. Welcome to sample Custom-made.

2 we have a special quality Supervision Department to ensure the quality of mass production.

3 If the product has quality problems, we will deal with the first time, find out the cause, take responsibility.

4 If you are interested in our products and companies, please leave a message or email us, we will give you an answer within 24 hours ( Telephone/Whatsapp: 0086 -189 4242 4342 )

Why choose us ?

1 Factory Direct Sales, no intermediate links, competitive price

2 Our machines are imported from Europe, the original machine factory, the production of stable product quality, do not use low quality equipment.

3 Ensure on-time delivery, procurement, we can provide the best quality of service control, transportation, documentation and so on.

4 We provide samples and OEM services.

5 We will reply to your enquiry within 24 hours.

6 More than 20 years of experience in this industry business, and professional team, so that our customers feel relaxed and comfortable working with us in

7 Please contact us by email and we will send you more pictures for more choices of our products.

How to make an order for Standard screw pump ?

1) Sample approval

2) Client arrange 50% deposit after receiving our PI(pro forma invoice),

3) We start bulk production and finish production within agreed lead time

4) We send shipping documents to client

5) Client arrange balance payment

6) We arrange shipment , and send original documents or telex release the goods
