Quick Details
-
Rolling thinckness:
-
0.75-1.2mm
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Dimension(L*W*H):
-
4000mm*800mm*1800mm
-
Weight:
-
3500 kg
-
Feeding width:
-
178-182mm
-
Marketing Type:
-
Hot Product 2023
-
Total Power:
-
13kw
-
Number of Rollers:
-
with 8 Groups and 4 Groups' Correctional Rollers
-
Punching material:
-
DC53
-
Material of Rollers:
-
Cr12 with Heat Treatment
-
Material of Shaft:
-
40 Cr with Vacuum Heat Treatment
-
Material of Cutter:
-
Cr12MOV
-
After Warranty Service:
-
whole life service support
-
Cutting device:
-
3 pieceas of blades to keep and cut the shape of profile
-
Servo motor:
-
7.5kw, taking with precision planetary gear reducer
-
Design Software:
-
Vertex BD
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
60 m/min
-
Rolling thinckness:
-
0.75-1.2mm
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Dimension(L*W*H):
-
4000mm*800mm*1800mm
-
Weight:
-
3500 kg
-
Feeding width:
-
178-182mm
-
Marketing Type:
-
Hot Product 2023
-
Total Power:
-
13kw
-
Number of Rollers:
-
with 8 Groups and 4 Groups' Correctional Rollers
-
Punching material:
-
DC53
-
Material of Rollers:
-
Cr12 with Heat Treatment
-
Material of Shaft:
-
40 Cr with Vacuum Heat Treatment
-
Material of Cutter:
-
Cr12MOV
-
After Warranty Service:
-
whole life service support
-
Cutting device:
-
3 pieceas of blades to keep and cut the shape of profile
-
Servo motor:
-
7.5kw, taking with precision planetary gear reducer
-
Design Software:
-
Vertex BD

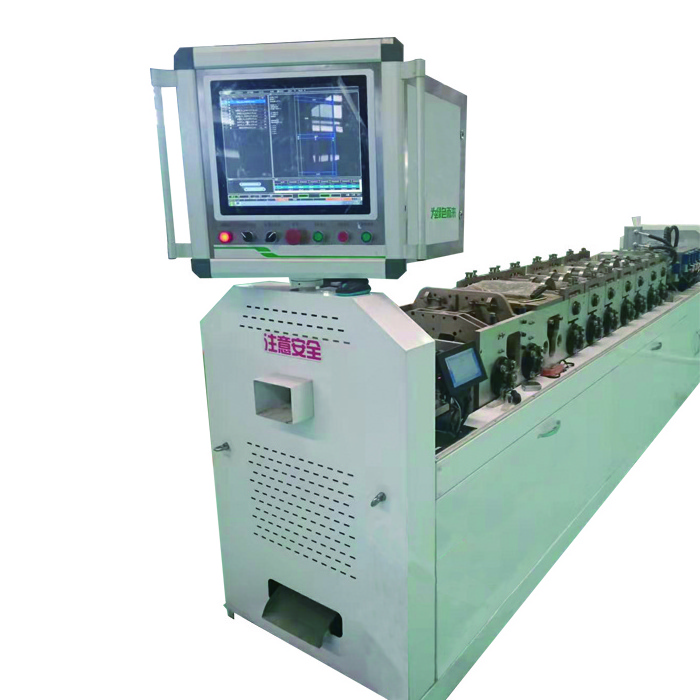

LGS c channel machine light gauge steel frame roll forming machine with VERTEX BD design software
AFFORDABLE Frame and Truss Rollformer 89mm 140 mm profile
steel frames and trusses , high speed production , with Detailing Software included
Steel thickness from 0.6 to 1.2mm G550 and G320
machine has ability to read CSV files via USB input
heave roller system .
C89/C140 Model Light Gauge Steel Framing Machine with Vertex Bd Software for Prefabricated House Building
Product Features
1. More efficient and accurate execution of production orders
;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
