Quick Details
-
Brand Name:
-
OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1
-
Port:
-
1x2 1x4 1x8 1x16 1x32
-
Fiber type:
-
G.657A/G652D/Customized
-
Operating Wavelength(nm):
-
1260~1650
-
Return Loss (dB):
-
≥50
-
Directivity (dB):
-
≥55
-
Operating Temperature (°C):
-
-40~+85
-
Application:
-
FTTH
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
mini type Sc Apc PLC splitter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1
-
Port:
-
1x2 1x4 1x8 1x16 1x32
-
Fiber type:
-
G.657A/G652D/Customized
-
Operating Wavelength(nm):
-
1260~1650
-
Return Loss (dB):
-
≥50
-
Directivity (dB):
-
≥55
-
Operating Temperature (°C):
-
-40~+85
-
Application:
-
FTTH

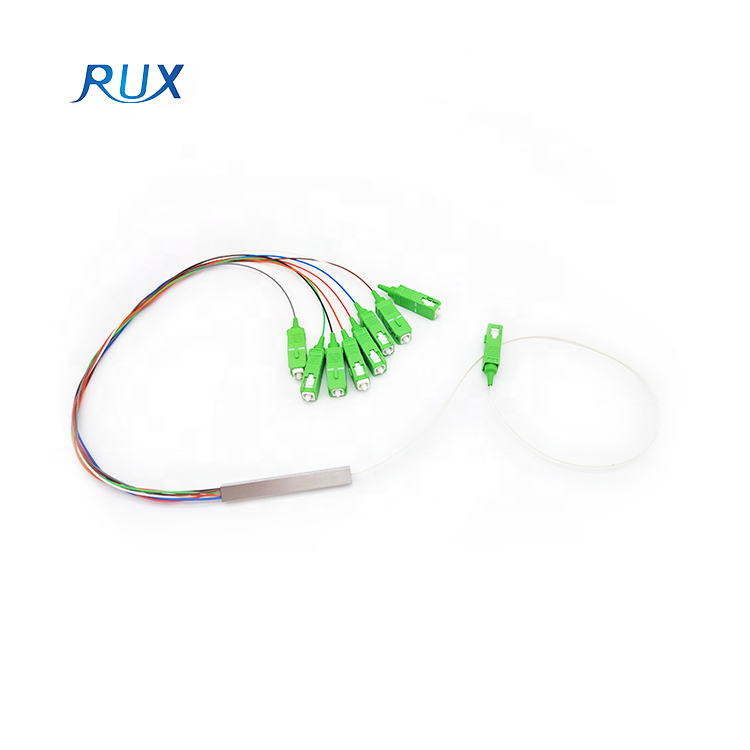

Sc Apc 1x2 1x4 1x8 1x16 1x32 0.9mm Mini Steel Tube Plc Splitter Fiber Optical Splitter
The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small volume, wide operating wavelength range, high reliability, good uniformity of spectrophotometer and so on. For passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and to achieve optical signal shunt. The 1xN and 2xN splitters evenly divide the optical signal into multiple outlets evenly from a single or dual inlet, or vice versa, to import multiple optical signals into a single or two root fiber.
Technical Data
|
ITEM
|
|
Unit
|
Technical Parameters
|
|
|
|
|
|||||
|
Port Configuration
|
|
\
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
|||||
|
Fiber Type
|
|
\
|
G657A or customer specified
|
|
|
|
|
|||||
|
Operating Wavelength
|
|
nm
|
1260~1650
|
|
|
|
|
|||||
|
Insertion Loss
|
Max
|
dB
|
3.8
|
7.1
|
10.4
|
13.7
|
17
|
|||||
|
Loss Uniformity
|
Max
|
dB
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
|||||
|
Return Loss
|
Min
|
dB
|
50
|
50
|
50
|
50
|
50
|
|||||
|
Polarization Dependent Loss
|
Max
|
dB
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
|||||
|
Directivity
|
Min
|
dB
|
55
|
55
|
55
|
55
|
55
|
|||||
|
Wavelength Dependent Loss
|
Max
|
dB
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
|||||
|
Temperature Stability(-40~85 °C)
|
Max
|
dB
|
0.5
|
|
|
|
|
|||||
|
Operating Temperature
|
|
°C
|
-40~85
|
|
|
|
|
|||||
|
Storage Temperature
|
|
°C
|
-40~85
|
|
|
|
|
|||||
Products Features
* Low Insertion loss and low Polarization Dependent loss
* Low PDL
* Low PDL
* High channel counts
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: 1260-1650nm
* Wide Operating Temperature: -40°C - 85°C
* High Reliability and Stability
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: 1260-1650nm
* Wide Operating Temperature: -40°C - 85°C
* High Reliability and Stability
Application
* FTTX Systems
* PON Networks
* CATV Links
* Optical Signal Distribution
* Local Areal Networks (LAN)
* Fiber Communication
Systems
Details Images
We have first-class production line and strict quality management system.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes, sample below 30m can be provided freely, but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly, we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test, such as raw material quality test, fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory, OEM is available; If need other brand name, it is okay. please give us letter of authorization.
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes, sample below 30m can be provided freely, but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly, we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test, such as raw material quality test, fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory, OEM is available; If need other brand name, it is okay. please give us letter of authorization.
