Quick Details
-
Applicable Material:
-
Capsule,tablet,pill,candy etc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SED
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
1360*1530*1700mm
-
Weight (KG):
-
340
-
Power (kW):
-
0.75
-
Hopper Volume:
-
35L
-
Capacity:
-
20-80bottles/min
-
Filling Quantity:
-
2-9999pcs/bottle
-
Weight::
-
340kg
-
Compressed air:
-
0.6Mpa
-
Machine Size:
-
1360*1530*1700mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
-
Model:
-
SED-12SP
Quick Details
-
Capacity (bottle/min):
-
20 - 80 bottle/min
-
Bottle Capacity (pcs/bottle):
-
2 - 9999 pcs/bottle
-
Capacity (pcs/h):
-
240000 pcs/h
-
Applicable Material:
-
Capsule,tablet,pill,candy etc
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SED
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
1360*1530*1700mm
-
Weight (KG):
-
340
-
Power (kW):
-
0.75
-
Hopper Volume:
-
35L
-
Capacity:
-
20-80bottles/min
-
Filling Quantity:
-
2-9999pcs/bottle
-
Weight::
-
340kg
-
Compressed air:
-
0.6Mpa
-
Machine Size:
-
1360*1530*1700mm
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Certification:
-
CE
-
Model:
-
SED-12SP

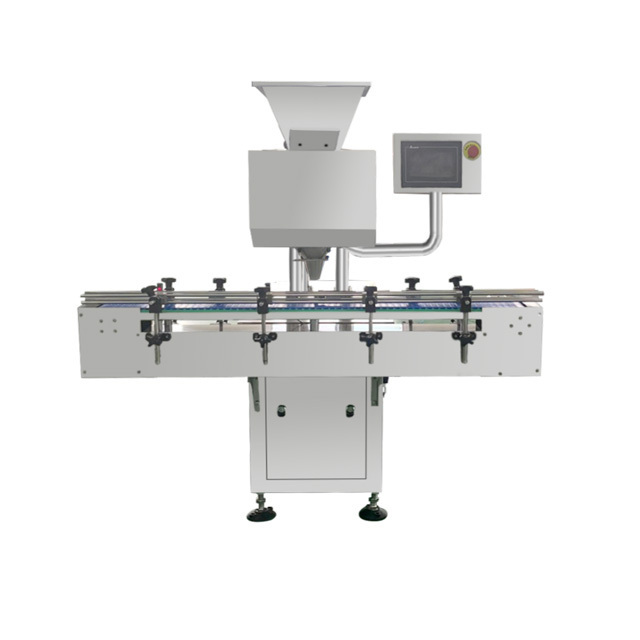

SED-12SP Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 12 sets imported counting sensor for counting with 12 guiding ways and one head. The advantage of the machine is no need change mold when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with PLC and Touch screen for easy operation.
|
Model
|
SED-12SP
|
|
|
1. capsule(00-5#)
|
|
|
2. Soft Gelatin capsule
|
|
|
3. chewing gum
|
|
|
4. tablet
|
|
|
5. other solid object under machine range
|
|
Hopper Volume
|
35L
|
|
Capacity
|
20-80
bottles/min
|
|
Filling Quantity
|
2-9999pcs/bottle
|
|
|
Diameter: 30-100mm
Height:40-180mm
|
|
|
|
|
Counting Size
|
Pills with diameter of 22 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-22 plain tablets
special-shaped tablets sugar-coated tablets |
|
|
|
|
|
|
|
Compressed air
|
0.6Mpa
|
|
Machine Weight
|
340kg
|
|
Machine Size L × W × H (mm)
|
1360*1530*1700mm
|
PHOTOELECTRIC DETECTION DEVICE Adopting elecrtonic counting technology of high dust resistance,still running normally in high dust environment, accuracy rate >
99.5%
4.MATERIAL
5.TOUCH SCREEN
6.BOTTLE DETECT SENSOR
1)
Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2)
Vibratory cutting ，do not damage;
3)
A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4)
Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5)
To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6)
Chinese dialogue control panel,
can store 10 ~ 20 group of species parameters
, adjusted to facilitate the use of special;
7)
Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8)
Low prices, especially for small-volume, variety and more manufacturers use.
Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
