Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
Packing Size: 870*860*1560mm
-
Power (kW):
-
7.5KW
-
Weight (KG):
-
200 KG
-
Maximum Output Pressure:
-
11MPa
-
Ab Material Output Ratio1:
-
1:1
-
Method Type:
-
Automatic
-
Main air pipe:
-
2.5 meters
-
Spray gun connectors:
-
2 sets
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Machine Type:
-
High-Performance Low-Pressure Spray Equipment
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
Packing Size: 870*860*1560mm
-
Power (kW):
-
7.5KW
-
Weight (KG):
-
200 KG
-
Maximum Output Pressure:
-
11MPa
-
Ab Material Output Ratio1:
-
1:1
-
Method Type:
-
Automatic
-
Main air pipe:
-
2.5 meters
-
Spray gun connectors:
-
2 sets
-
Marketing Type:
-
New Product 2020
Product Paramenters
Polyurethane foaming machine is a special equipment for polyester foam perfusion foaming. As long as the polyurethane group raw materials (isocyanate Group and polyether polyol Group) performance indicators meet the formulation requirements. Through this equipment can produce a uniform, qualified foam products. It is based on Polyether Polyol and isocyanate in foaming agent, Catalyst, emulsifier and other chemical additives, through chemical reaction foaming and the production of foam. Polyurethane
foaming machine can be used in automotive interiors, insulation wall spraying, insulation pipe manufacturing, bicycle and motorcycle seat sponge processing.
foaming machine can be used in automotive interiors, insulation wall spraying, insulation pipe manufacturing, bicycle and motorcycle seat sponge processing.

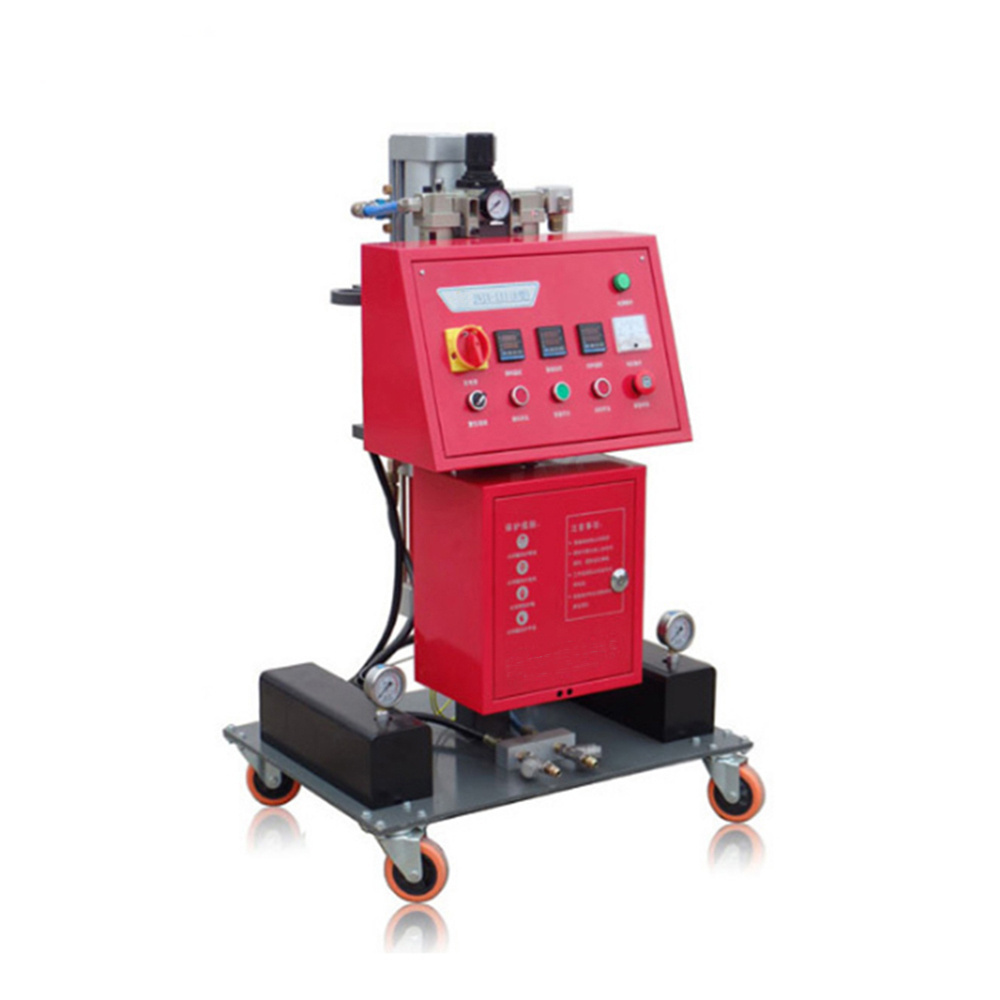

Spray Paint Polyurethane Equipment / Polyurethane Spray Foam Machine
hydraulic polyurethane foam spray machine casting: solar water heaters, insulation tanks, refrigerators, security doors, cabin, insulation boards, pipe joints, product packaging, road construction, wall noise.
1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.
1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.
|
Model
|
ENWEI-E
|
|
Power source
|
Single phase 220V 50Hz
|
|
Heating powe
|
7.5KW
|
|
Driven mode
|
pneumatic
|
|
Air source
|
0.5~0.8 MPa ≥0.9m³/min
|
|
Raw output
|
3~8kg/min
|
|
Max output pressure
|
11MPA
|
|
AB material output ratio
|
1:1
|
|
Spray gun
|
1 Set
|
|
Feeding pump
|
2 sets
|
|
Heating hose
|
15meters
|
|
Gun connection pipe
|
2pieces
|
|
Feed delivery pipe
|
2pieces
|
|
pneumatic pipe
|
5meters
|
|
Spare parts
|
1set
|
Products Description
Recommend Products
Company Certifications
Factory Show
Product packaging
FAQ
1. who are we? We are based in Shandong, China, start from 2014, sell to South America (10.00%), Eastern Europe (10.00%), Southeast Asia (10.00%), Africa (10.00%), Mid East (10.00%), Eastern Asia (10.00%), Western Europe (10.00%), North America (5.00%), Central America (5.00%), Northern Europe (5.00%), Southern Europe (5.00%), South Asia (5.00%), Domestic Market (5.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; To our customers, the company promises, all the products of the company, and there are non- human factors quality problems during the warranty period, unconditional return or refund.
3.what can you buy from us? Mining Machinery, Construction Machinery, Drill Machine, Road machinery, Pump.
4. why should you buy from us not from other suppliers? Research and development, sales, production in one, there is a sound technology, sales, service departments. Have perfect after-sales service, so that customers more peace of mind, more assured.
3.what can you buy from us? Mining Machinery, Construction Machinery, Drill Machine, Road machinery, Pump.
4. why should you buy from us not from other suppliers? Research and development, sales, production in one, there is a sound technology, sales, service departments. Have perfect after-sales service, so that customers more peace of mind, more assured.
