Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
KYI-7T-M
-

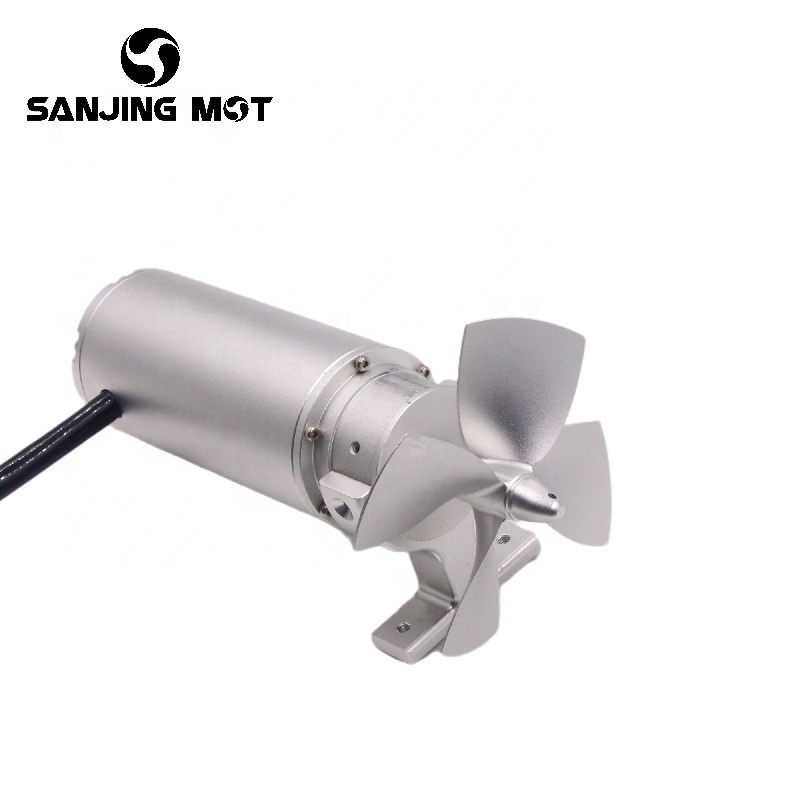

Product Name:
-
Underwater propulsion machine
-
Application:
-
Fresh water, sea water, sewage, sediment
-
Keywords:
-
Underwater motor
-
Motor type:
-
All water proof construction
-
Color:
-
black
-
Rated Voltage:
-
24V
-
Power:
-
500W
-
Size:
-
166*40*80mm
-
Rated Speed:
-
6720rpm
-
Certification:
-
CE ROHS
Quick Details
-
Speed(RPM):
-
6720rpm
-
Continuous Current(A):
-
23A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
KYI-7T-M
-
Product Name:
-
Underwater propulsion machine
-
Application:
-
Fresh water, sea water, sewage, sediment
-
Keywords:
-
Underwater motor
-
Motor type:
-
All water proof construction
-
Color:
-
black
-
Rated Voltage:
-
24V
-
Power:
-
500W
-
Size:
-
166*40*80mm
-
Rated Speed:
-
6720rpm
-
Certification:
-
CE ROHS
Product specification
Fully sealed cabin structure, can be used in seawater, sewage, turbid waters, after use, no fresh water flushing, maintenance free structure, longer life.
Suitable for water within 30 meters
The mounting seat adopts simple and detachable structure, cable length of 1m 16AWG special soft silicone wire.
Suitable for water within 30 meters
The mounting seat adopts simple and detachable structure, cable length of 1m 16AWG special soft silicone wire.
Net product volume: 550g
Weight after packaging: 794g
Packing specifications: length width height =20*20*20cm
Packing specifications: length width height =20*20*20cm
|
Parameters
|
|
|
|
Motor type
|
KYI-7T-M
|
|
|
Product Features
|
Fully sealed design
|
|
|
Propeller
outer diameter
|
80mm
|
|
|
Propeller
material
|
Metal propeller
|
|
|
Motor outer diameter
|
40mm
|
|
|
Thruster length
|
166mm
|
|
|
Maximum thrust
|
7.3kg
|
|
|
Working voltage
|
24V
|
|
|
Max. current
|
23A
|
|
|
Max. speed (no load)
|
6720rpm
|
|
Note！
1. The above parameters and data are our optimal match after testing, if you have your own parameter requirements you can contact me for consultation and customization.
2. The product includes motor, mounting bracket and propeller. If you do not need a propeller or also need other propellers can contact me to modify the price.
3. We have multiple styles for each motor, including built-in ESC, side exit line, etc. You can consult me for details.
4. each motor we have a suitable propeller, ESC and remote control, if you also need them can contact us for your recommendation.
