- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
T101(2021)
-
CPU:
-
ARM Cortex A73 octa-core(2.0GHz )
-
GPU:
-
Arm Mali--G72 MP3
-
Display:
-
10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
-
Shake-proof:
-
1-19Hz/1.0mm; 19-200Hz/1.0g
-
Dropproof /IK:
-
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
-
Waterproof:
-
Class 5 ( IEC 60529 )
-
Dustproof:
-
Class 6 ( IEC 60529 )
-
OEM/ODM:
-
Support
-
Operating Altitude:
-
Max: 4,500 m(15,000 feet)
-
Navigation:
-
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUGEROCK
-
Model Number:
-
T101(2021)
-
CPU:
-
ARM Cortex A73 octa-core(2.0GHz )
-
GPU:
-
Arm Mali--G72 MP3
-
Display:
-
10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
-
Shake-proof:
-
1-19Hz/1.0mm; 19-200Hz/1.0g
-
Dropproof /IK:
-
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
-
Waterproof:
-
Class 5 ( IEC 60529 )
-
Dustproof:
-
Class 6 ( IEC 60529 )
-
OEM/ODM:
-
Support
-
Operating Altitude:
-
Max: 4,500 m(15,000 feet)
-
Navigation:
-
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)

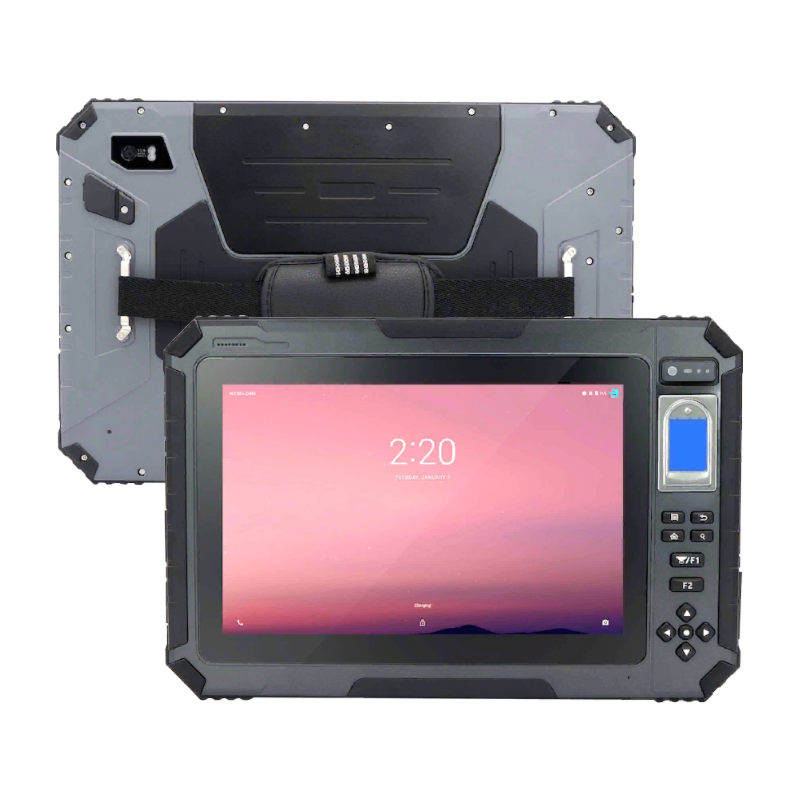

APPEARANCE
|
1. Type-A (Sealed Cover)
|
2. RS232 (Sealed Cover)
|
3. Speaker
|
4. Sub camera
|
5.Ambient light sensor
|
|
6.Charge lamp
|
7. Fingerprint (optional)
|
8. Menu button
|
9. Back button
|
10. Home button
|
|
11. Search button
|
12. Scan button
|
13. Defined button
|
14. Direction button
|
15. Confirm button
|
|
16. MIC
|
17. 8pin Pogo pin
|
18. Power button
|
19. TF/SIM (Sealed Cover)
|
20. Type C (Sealed Cover)
|
|
21. Main camera
|
22. Temperature pressure sensor (Optional)
|
23. Nameplate
|
|
|
PRODUCT PACKING STANDARD
PRODUCT DETAILS
SPECIFICATION
|
Hardware
|
|
|
|
|
||||
|
CPU
|
ARM Cortex A73 octa-core(2.0GHz )
|
|
|
|
||||
|
GPU
|
Arm Mali-G72 MP3
|
|
|
|
||||
|
RAM
|
8G
|
|
|
|
||||
|
Internal Memory
|
128G
|
|
|
|
||||
|
External Memory
|
Micro SD card ( T-FLASH card), max 256GB
|
|
|
|
||||
|
Main Camera
|
13.0MP(AF) with flash led
|
|
|
|
||||
|
Sub Camera
|
5.0MP
|
|
|
|
||||
|
Battery
|
14600mAh
|
|
|
|
||||
|
Display
|
10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable
|
|
|
|
||||
|
Touch Panel
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|
|
|
||||
|
IO/Sensor/Navigation
|
|
|
|
|
||||
|
SIM Card
|
Nano sim card*2
|
|
|
|
||||
|
TF Card
|
Micro SD card ( T-FLASH card) ;max 256GB
|
|
|
|
||||
|
Charging interface
|
Type-C & 8pin pogo pin
|
|
|
|
||||
|
Data interface
|
USB Type-A(Host)*2, Type-C(OTG)*1
|
|
|
|
||||
|
RS232（optinal）
|
RS232 serial port, using 5pin micro one GPIO port
|
|
|
|
||||
|
Direction Sensor
|
Support
|
|
|
|
||||
|
Gravity sensor
|
Support
|
|
|
|
||||
|
Magnetic Field Sensor
|
Support
|
|
|
|
||||
|
Motion sensor
|
Support
|
|
|
|
||||
|
Rotation Vector
|
Support
|
|
|
|
||||
|
Light-sensor
|
Support
|
|
|
|
||||
|
Acceleration sensor
|
Support
|
|
|
|
||||
|
Charger
|
5.0V 2A-10W
|
|
|
|
||||
|
Navigation
|
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
|
|
|
|
||||
|
Appearance
|
|
|
|
|
||||
|
Size
|
320*228*12mm（L×W×H）
|
|
|
|
||||
|
Weight
|
1360g
|
|
|
|
||||
|
Color & Material
|
Gray (Titanium alloy+ABS+PC+TPU)
|
|
|
|
||||
|
Communications & Networking
|
|
|
|
|
||||
|
Phone Call
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|
|
|
||||
|
2G
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|
|
|
||||
|
2G Band
|
GSM（B2/3/5/8）
|
|
|
|
||||
|
3G
|
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
|
|
|
|
||||
|
3G Band
|
WCDMA（B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1
|
|
|
|
||||
|
4G
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
|
|
|
|
||||
|
4G Band
|
TD-LTE（B38/39/40/41); FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
|
|
|
|
||||
|
WI-FI
|
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|
|
|
||||
|
BT
|
4.2 Low Energy (LE)
|
|
|
|
||||
|
Industrial & Reliability Design
|
|
|
|
|
||||
|
Shake-proof
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|
|
|
||||
|
Dropproof /IK
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|
|
|
||||
|
Waterproof
|
Class 5 ( IEC 60529 )
|
|
|
|
||||
|
Dustproof
|
Class 6 ( IEC 60529 )
|
|
|
|
||||
|
Reliability
|
MTBF>5000h; MTTR<0.5h
|
|
|
|
||||
|
Operating temperature
|
-20°C to 55°C
|
|
|
|
||||
|
Storage Temperature
|
-40°C to 80°C
|
|
|
|
||||
|
RH
|
5% to 95%
|
|
|
|
||||
|
Operating Altitude
|
Max: 4,500 m（15,000 feet）
|
|
|
|
||||
|
Certification/OS/Software
|
|
|
|
|
||||
|
Certification
|
3C/FCC/CE/ROHS/IP65 (IEC 60529)
|
|
|
|
||||
|
Language
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc
|
|
|
|
||||
|
OS
|
Android 10.0/ 11.0
|
|
|
|
||||
|
Package/Warranty terms/OEM
|
|
|
|
|
||||
|
Warranty
|
24 months
|
|
|
|
||||
|
OEM/ODM
|
Support
|
|
|
|
||||
|
Package
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional)/SIM Card Ejector x 1/Magnetic Charging Cable
|
|
|
|
||||
PRODUCT QUALIFICATION
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
