Quick Details
-
Dimension(Long * Breadth * High):
-
1760mm*1100mm*1295mm
-
Machine Weight:
-
830 kg
-
Warranty of core components:
-
one year
-
Traction force(kg):
-
409
-
Hydraulic drive system(L/bar):
-
55/170
-
Hydraulic oil tank capacity(L):
-
35
-
Standard Tires:
-
18*8.5-8
-
Electrical system(V):
-
12
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
15.7 kw
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1760mm*1100mm*1295mm
-
Machine Weight:
-
830 kg
-
Warranty of core components:
-
one year
-
Traction force(kg):
-
409
-
Hydraulic drive system(L/bar):
-
55/170
-
Hydraulic oil tank capacity(L):
-
35
-
Standard Tires:
-
18*8.5-8
-
Electrical system(V):
-
12
Product Description
Specification
|
HONDA HGX690 |
Briggs Stratton 3864
|
Rato R740
|
|
Lifting Capacity
|
380
|
380
|
|
Engine Type
|
HONDA HGX690
|
Briggs Stratton 3864
|
|
Engine Capacity（kw/Hp)
|
16.5/22.1
|
18.2/23
|
|
Displacement cm3/Number of cylinders
|
688/2
|
|
|
Rotation speed per minute (rpm)
|
3600
|
3600
|
|
Maximum torque NM/rpm
|
38.6/2500
|
50/3000
|
|
Cooling method
|
Air-cooled
|
Air-cooled
|
|
Fuel/Fuel tank capacity
|
Gasoline 95#/20L
|
Gasoline 95#/20L
|
|
Drive System
|
Hydraulic four-wheel drive
|
Hydraulic four-wheel drive
|
|
Speed（km/h)
|
0-5.5(By Scale）
|
0-5.5(By Scale）
|
|
Enhancement of capabilities（kg)
|
350
|
300
|
|
Traction force（kg）
|
409
|
409
|
|
Hydraulic drive system（L/bar)
|
55/170
|
55/170
|
|
Hydraulic oil tank capacity（L）
|
35
|
35
|
|
Standard Tires
|
18*8.5-8
|
18*8.5-8
|
|
Electrical system（V）
|
12
|
12
|
|
Battery Capacity（Ah)
|
45
|
36
|
|
Braking System
|
Hydraulic enclosed brake
|
Hydraulic enclosed brake
|
|
Drive
|
Skid steering
|
Skid steering
|
|
Hydraulic Cylinder Thrust（KG）
|
600
|
600
|
|
Rising Force（KG）
|
300
|
300
|
|
Overall Dimensions（MM）
|
1485*1150*1300
|
1485*1150*1300
|
|
Weight（KG）
|
830
|
830
|

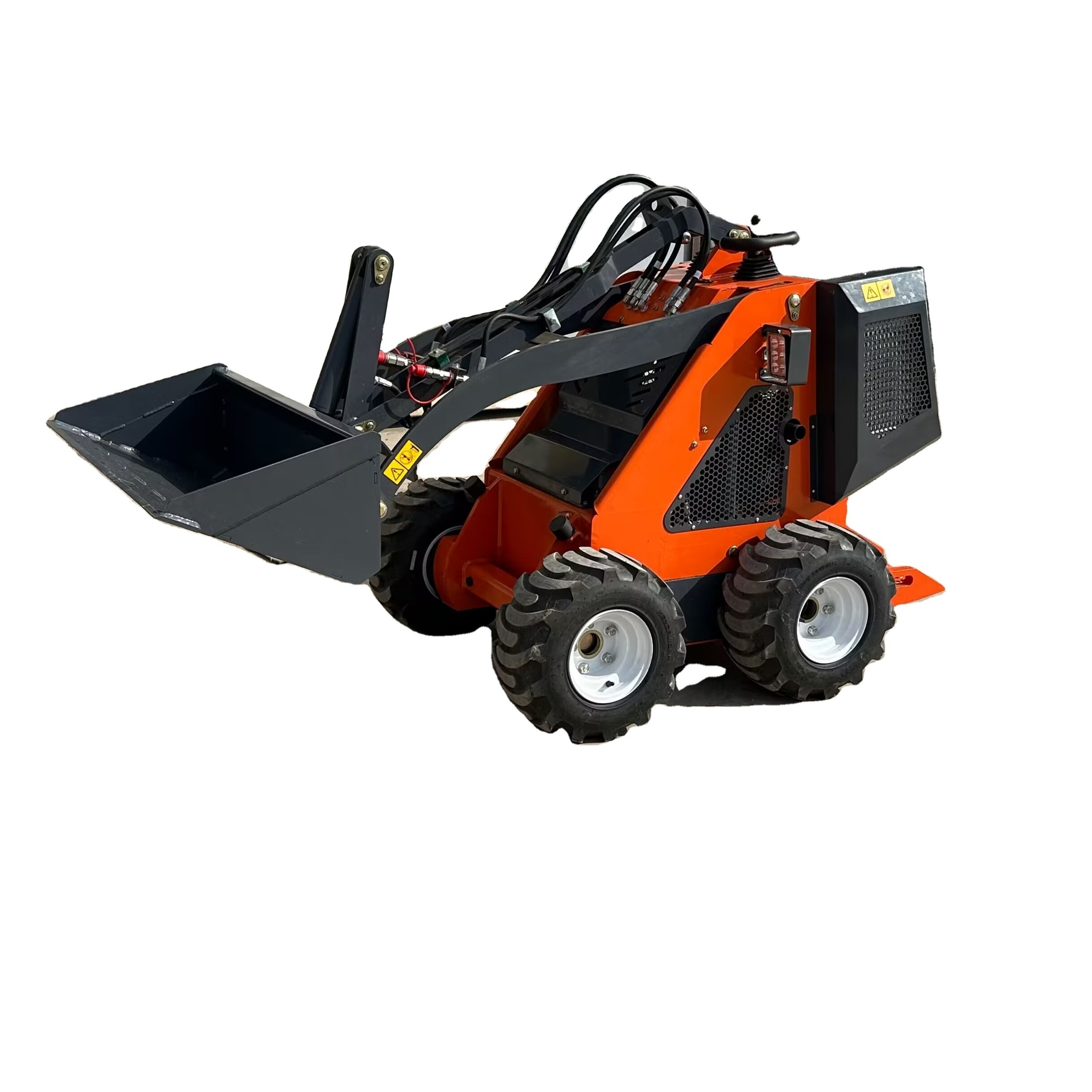

Details Images
