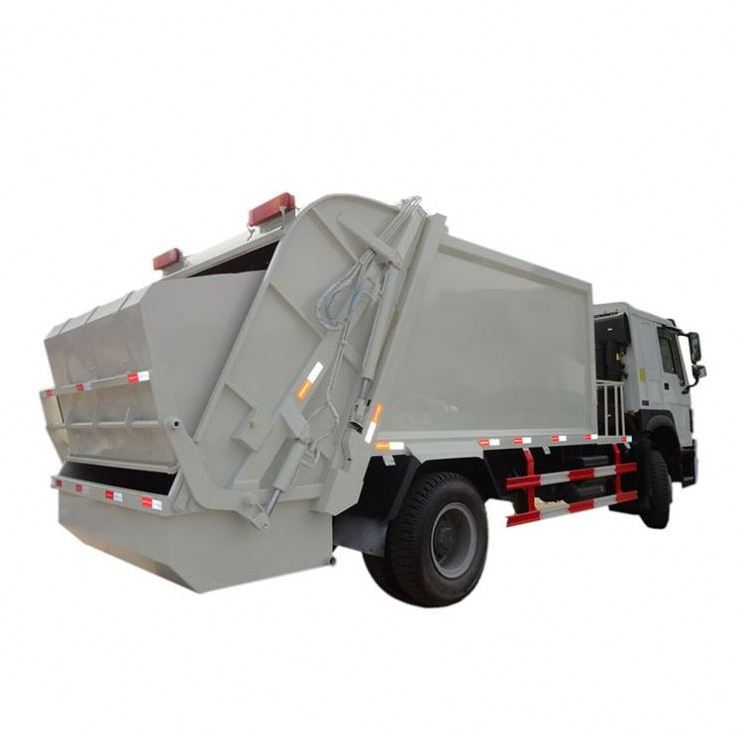

Made In China Sinotruk Howo Compression Garbage Truck ZZ3257N3247W

Made In China Sinotruk Howo Compression Garbage Truck ZZ3257N3247W

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25500

≥5 Pieces

US $20500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: Sinotruck howo

Driving Type:: 4X2,6X4

Cabin:: HW70, with two seats

Engine:: WD615.69, 336 HP ;WD615.47, 371HP ;WD615.87,290HP;

Emission:: Euro 2

Transmission:: HW15710, 10F & 2R with PTO

Front Axle:: HF9,1x9000 KGS

Rear Axle:: HC16, 2x16000 KGS

Volume:: 10CBM

Certification:: ISO CE

Quick Details

Engine Capacity:: 9.726L

Size:: 10100x2500x3400mm

Gross Vehicle Weight:: 30000

Place of Origin:: China

Brand Name:: Sinotruck howo

Driving Type:: 4X2,6X4

Cabin:: HW70, with two seats

Engine:: WD615.69, 336 HP ;WD615.47, 371HP ;WD615.87,290HP;

Emission:: Euro 2

Transmission:: HW15710, 10F & 2R with PTO

Front Axle:: HF9,1x9000 KGS

Rear Axle:: HC16, 2x16000 KGS

Volume:: 10CBM

Certification:: ISO CE

Made In China Sinotruk Howo Compression Garbage Truck ZZ3257N3247W

Product Description

The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic ,
with manual control system. Crush the garbage through fling, pushing and spading, finally make the waste compaction in the dustbin.

Features:

1.Howo chassis , perfect perfomance.
2.Weichai engine, super powerful; reliable performance.
3.Nice shape, rational structure
4.High quality hydraulic system
5.Massive, durable, perfect performance
6.Prolonged service life

Main parameter

Chassis Model	ZZ3257N3247W
Driving Type	4X2,6X4
Cabin	HW70, with two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, 336 HP ; WD615.47, 371HP ;WD615.87,290HP; Emission :Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW1 5 710, 10F & 2R with PTO
Steering	power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1x9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	315/80R22.5 , tubless tires with one spare tire
Fuel Tank	300L
Mixer Body	Volume: 1 0CBM / 14CBM / 16CBM / 20CBM ; Optional: Mechanical lifting arms
Overall Dimension	945025503650mm
