Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RB
-
Model Number:
-
FZW32-12/T630-20
-
Shell material:
-
Stainless steel
-
frequency:
-
50-60HZ
-
operating voltage:
-
110V 220V 48V 24V
-
Operation method:
-
Manual operation/manual operation and electric operation
-
resistance:
-
70-90 ohms
-
Current ratio:
-
200.400.600/5
Quick Details
-
Breaking Capacity:
-
20KA
-
Rated Voltage:
-
12KV
-
Rated Current:
-
630A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RB
-
Model Number:
-
FZW32-12/T630-20
-
Shell material:
-
Stainless steel
-
frequency:
-
50-60HZ
-
operating voltage:
-
110V 220V 48V 24V
-
Operation method:
-
Manual operation/manual operation and electric operation
-
resistance:
-
70-90 ohms
-
Current ratio:
-
200.400.600/5
product description

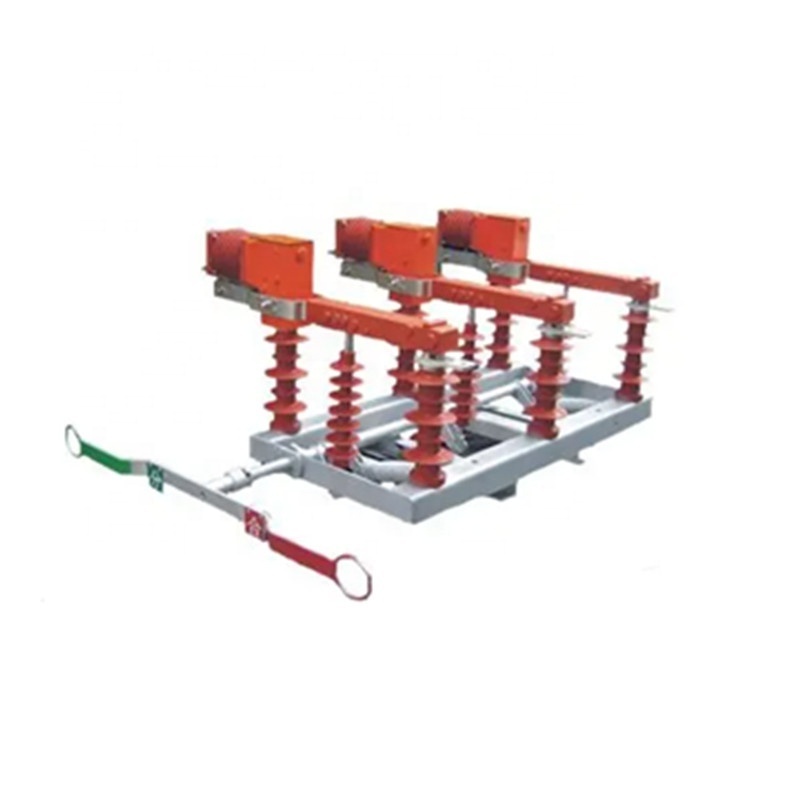

FZW32-12/T630-20 type outdoor high voltage isolated vacuum load switch (hereinafter referred to as the load switch) is a three-phase AC 50Hz, rated voltage 12kV outdoor high voltage switch equipment, suitable for breaking, closing urban or rural distribution system load current and fuse break transfer current. Equipped with motor mechanism and controller can be used as line breaker or automatic breaker. Due to the use of new insulation structure design and vacuum arc extinguishing chamber, the load switch has obvious fracture after breaking, and has the function of isolation switch, in addition to the breaking capacity is large, no oil, so no pollution to the environment, no explosion risk, long electrical life and maintenance free.
Product Description
Specification
|
model
|
FZW32-12/T630-20
|
|
breaking capacity
|
20~25KA
|
|
shell material
|
Stainless steel/iron shell spray
|
|
rated current
|
630-1250A
|
|
refresh rate
|
50HZ-60HZ
|
|
operating voltage
|
24V /48V/110V/220V
|
|
Operation method
|
Support manual operation/electric operation
|
|
insulating material
|
silicone rubber
|
